Terminal And Reference Value For BCM/With Front Left And Right Power Window Anti-Pinch System

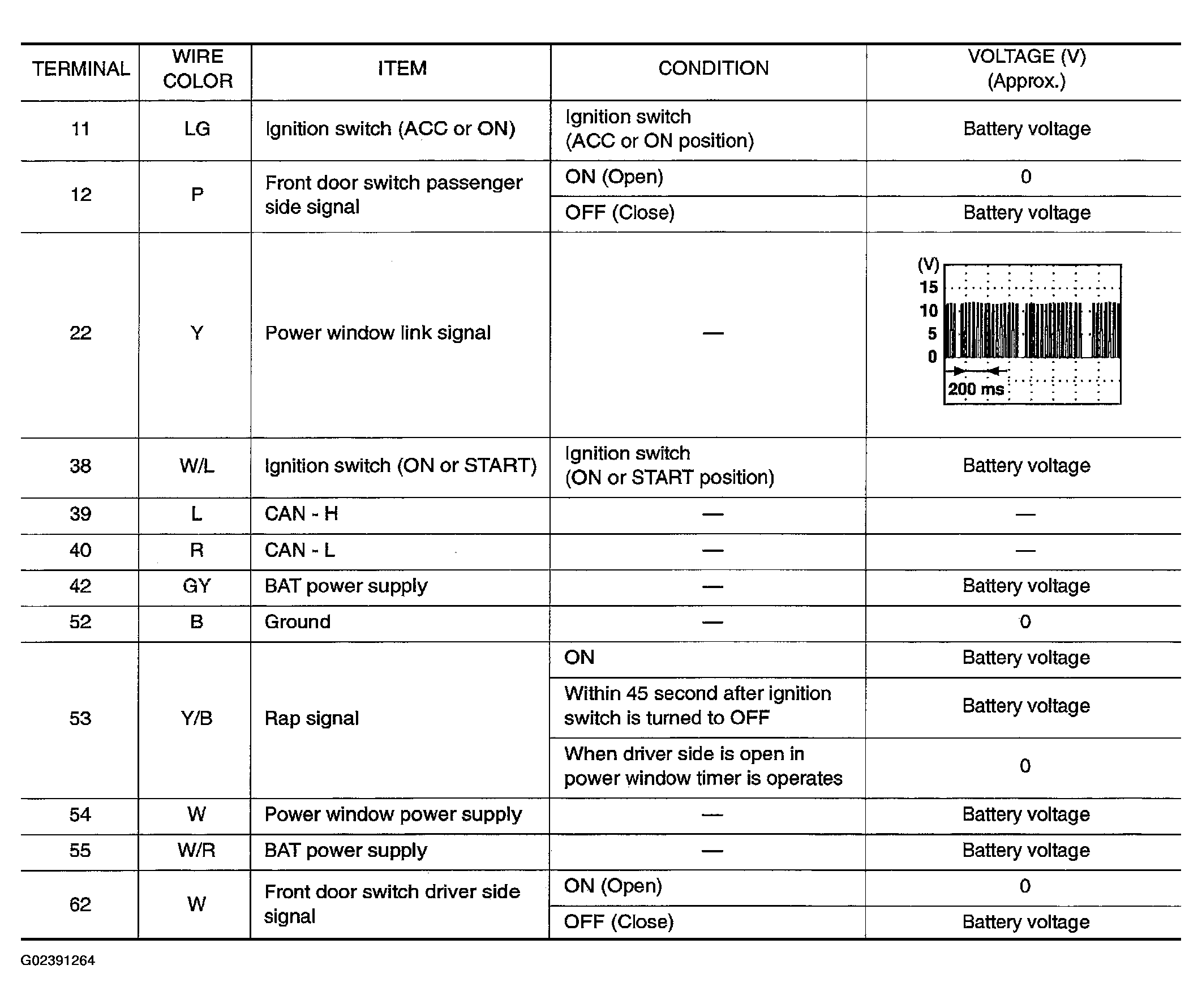

Fig 1: BCM Terminal And Reference Value Table - With Front Left And Right Power Window Anti-Pinch System
G02391264Courtesy of NISSAN MOTOR CO., U.S.A.
