2004 - Engine Control System - Sedan
>>
Engine Control System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

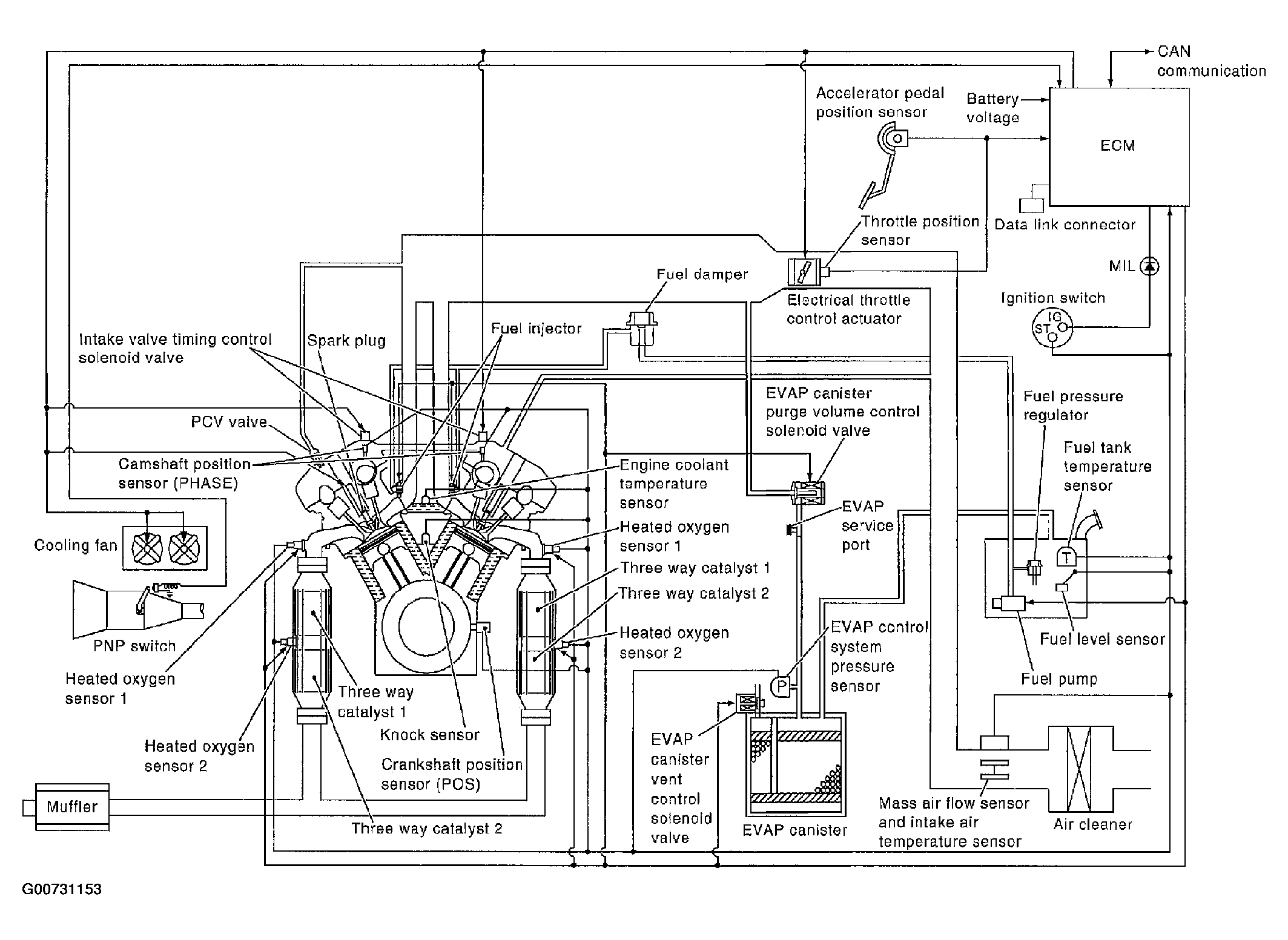

Fig 1: Identifying Engine Control System - System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
