Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.
    1. Resistance: 13.5 - 17.5Ω [at 10 - 60°C (50 - 140°F)

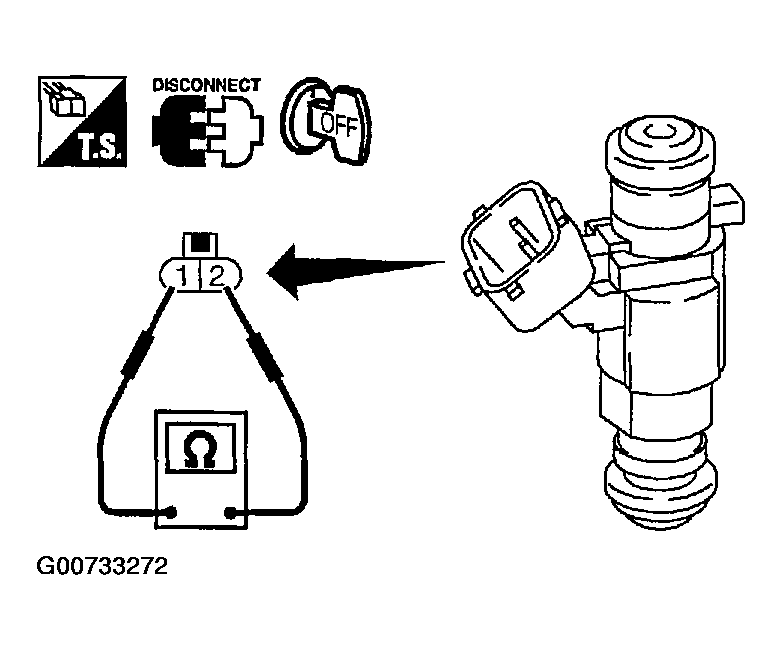

Fig 1: Checking Resistance Between Injector Terminals
G00733272Courtesy of NISSAN MOTOR CO., U.S.A.
