2 Check Line Pressure

Perform line pressure test.

Refer to LINE PRESSURE TEST .

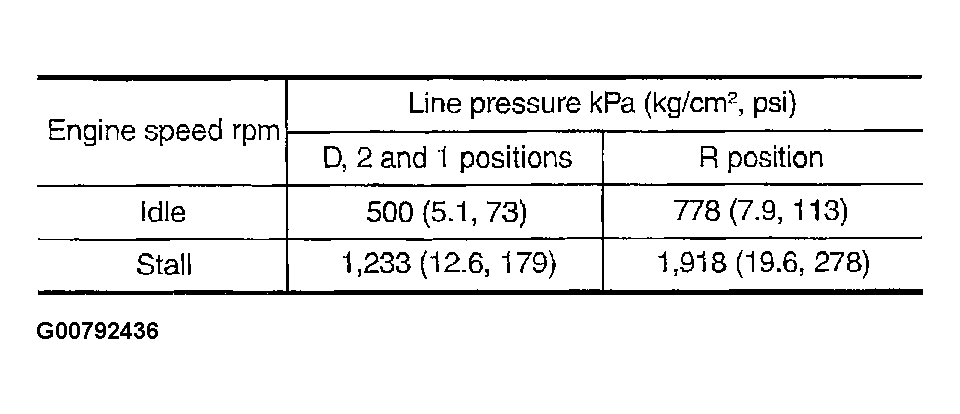

Fig 1: Identifying Line Pressure Table
G00792436Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 3.

NG: GO TO 6.
