DTC P0755: Shift Solenoid Valve B: Description: Notes

Shift solenoid valves A and B are turned ON or OFF" by the TCM in response to signals sent from the park/neutral position (PNP) switch, vehicle speed and electric throttle control actuator (throttle position sensors). Gears will then be shifted to the optimum position.

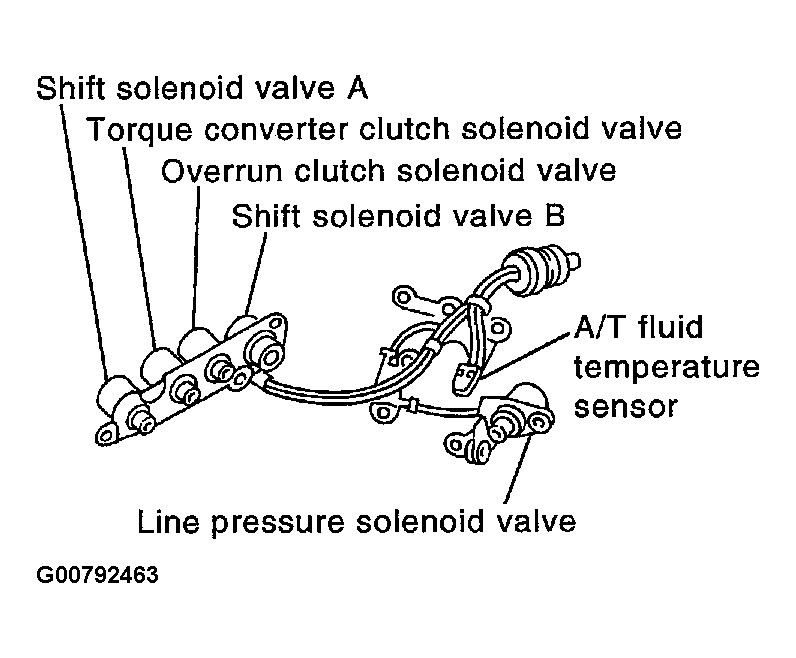

Fig 1: Identifying DTC P0755 Shift Solenoid Valve B

Courtesy of NISSAN MOTOR CO., U.S.A.

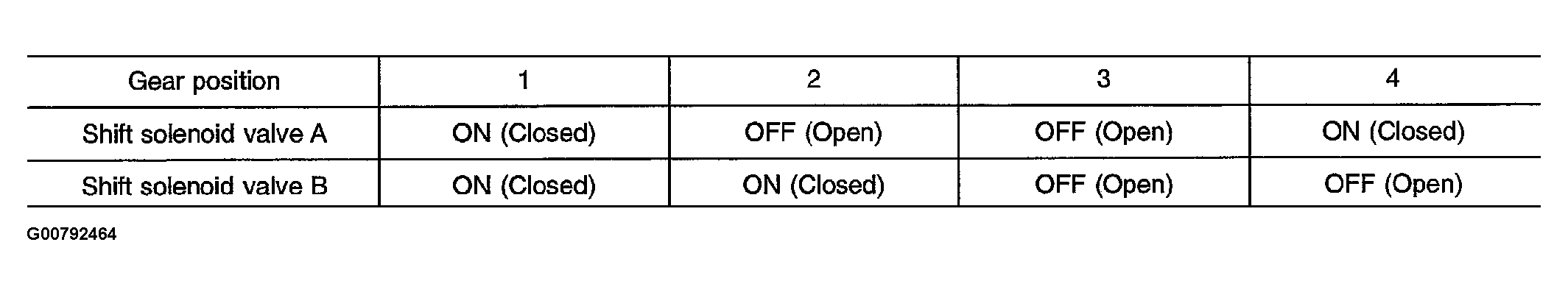

Fig 2: Identifying Shift Solenoid Valve A And B table

Courtesy of NISSAN MOTOR CO., U.S.A.
