CONSULT-II Basic Operation Procedure

  1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.

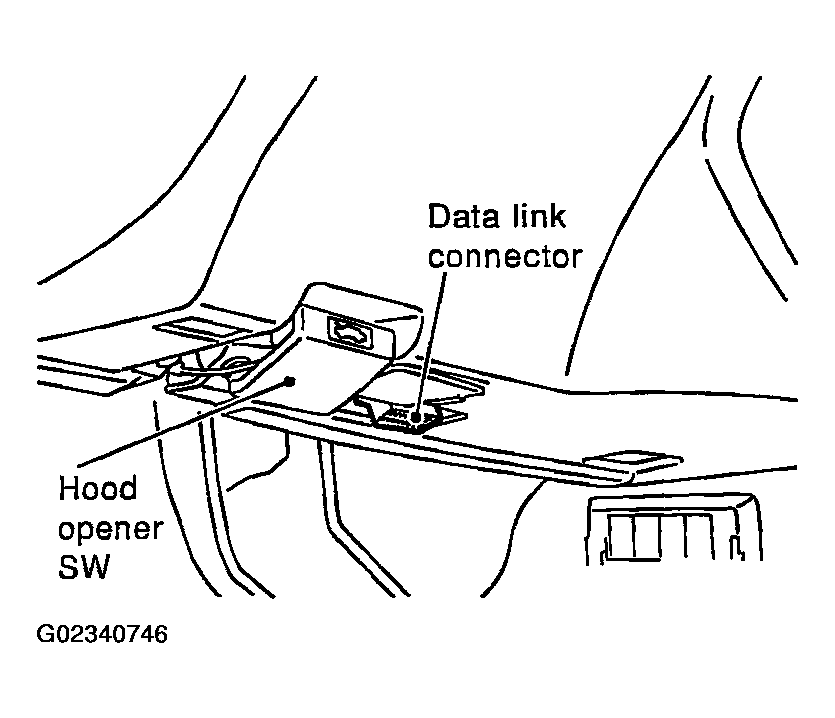

    Fig 1: Identifying Data Link Connector
    G02340746Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

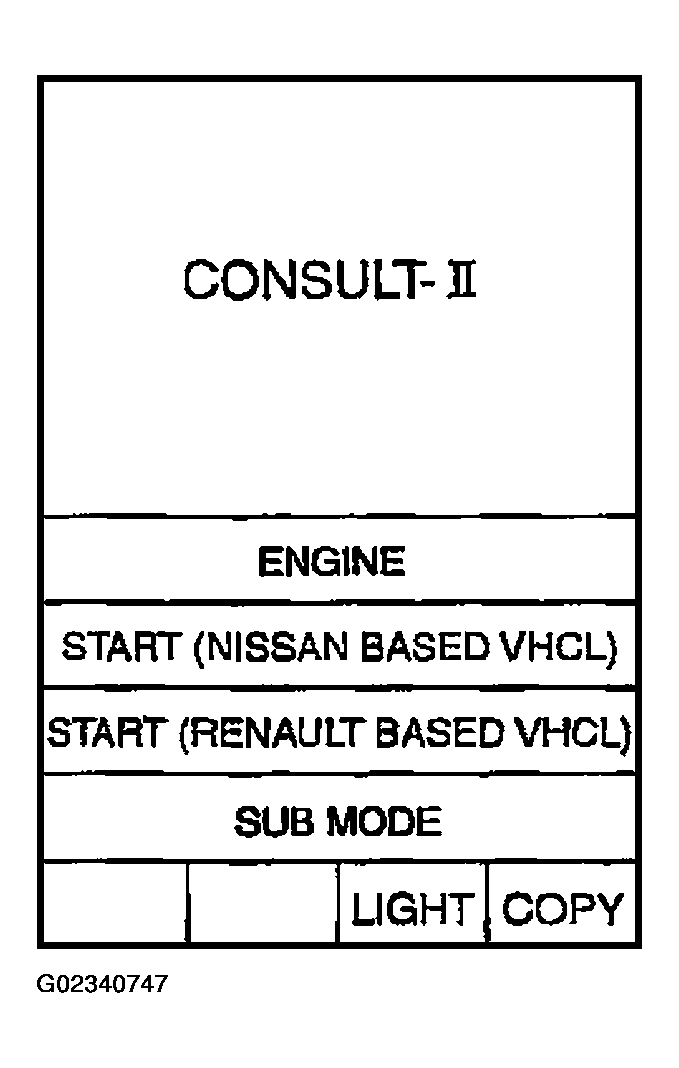

    Fig 2: CONSULT-II START (NISSAN BASED VHCL) Display
    G02340747Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "MULTIAV" on "SELECT SYSTEM" screen.

    If "MULTIAV" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

  4. Select "VERSION", "SELF-DIAG RESULTS" or "SIGNAL MONITOR".

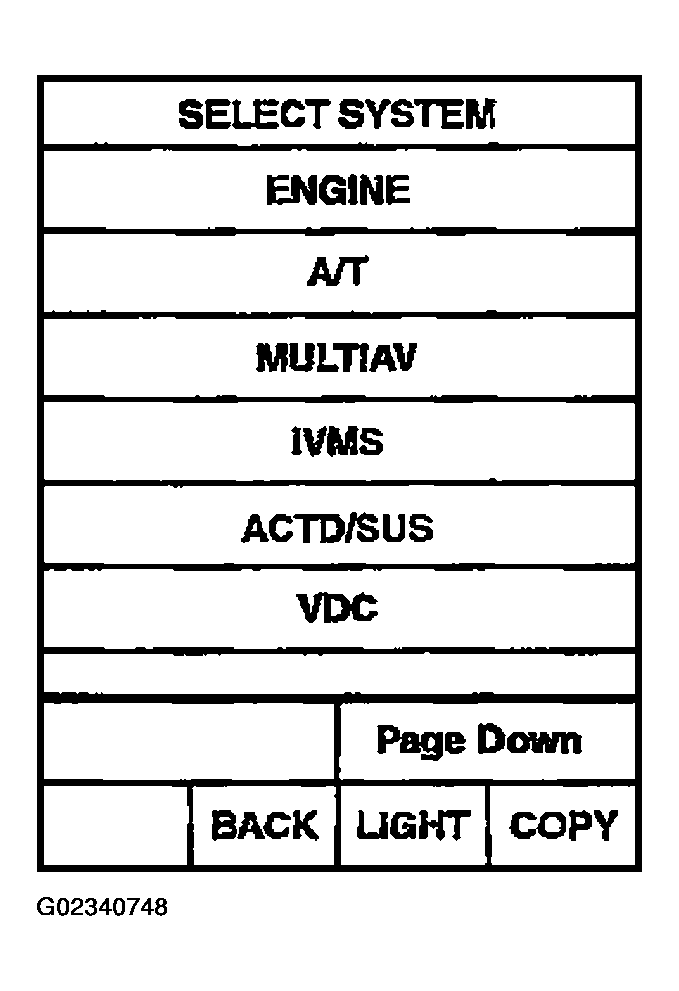

    Fig 3: CONSULT-II Select System Display
    G02340748Courtesy of NISSAN MOTOR CO., U.S.A.
