Vehicle Signals

A comparison check can be made of each actual vehicle signal and the signals recognized by the system.

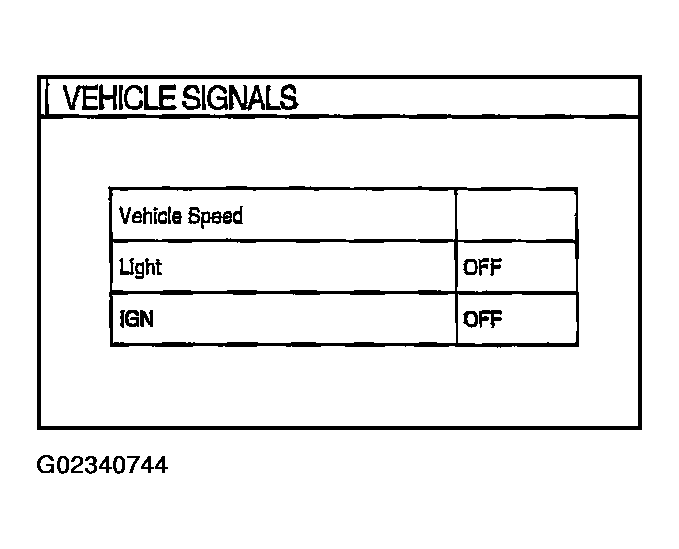

Fig 1: Identifying Vehicle Signals Display
Courtesy of NISSAN MOTOR CO., U.S.A.

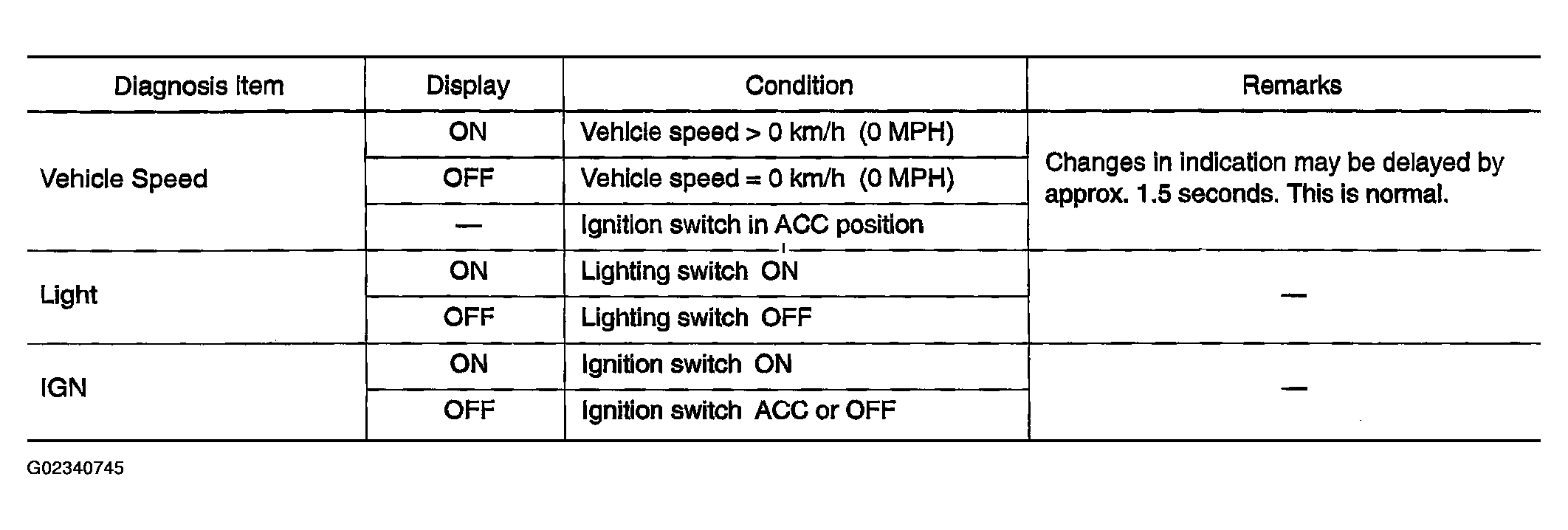

Fig 2: Vehicle Signals Display Table
Courtesy of NISSAN MOTOR CO., U.S.A.
If vehicle speed is NG, refer to VEHICLE SPEED SIGNAL INSPECTION .
If light is NG, refer to ILLUMINATION CONTROL SIGNAL INSPECTION .
If IGN is NG, refer to IGNITION SIGNAL INSPECTION .
