Wiring Diagram - INF/D -: Notes
For complete System Wiring Diagrams, see
SYSTEM WIRING DIAGRAMS
.

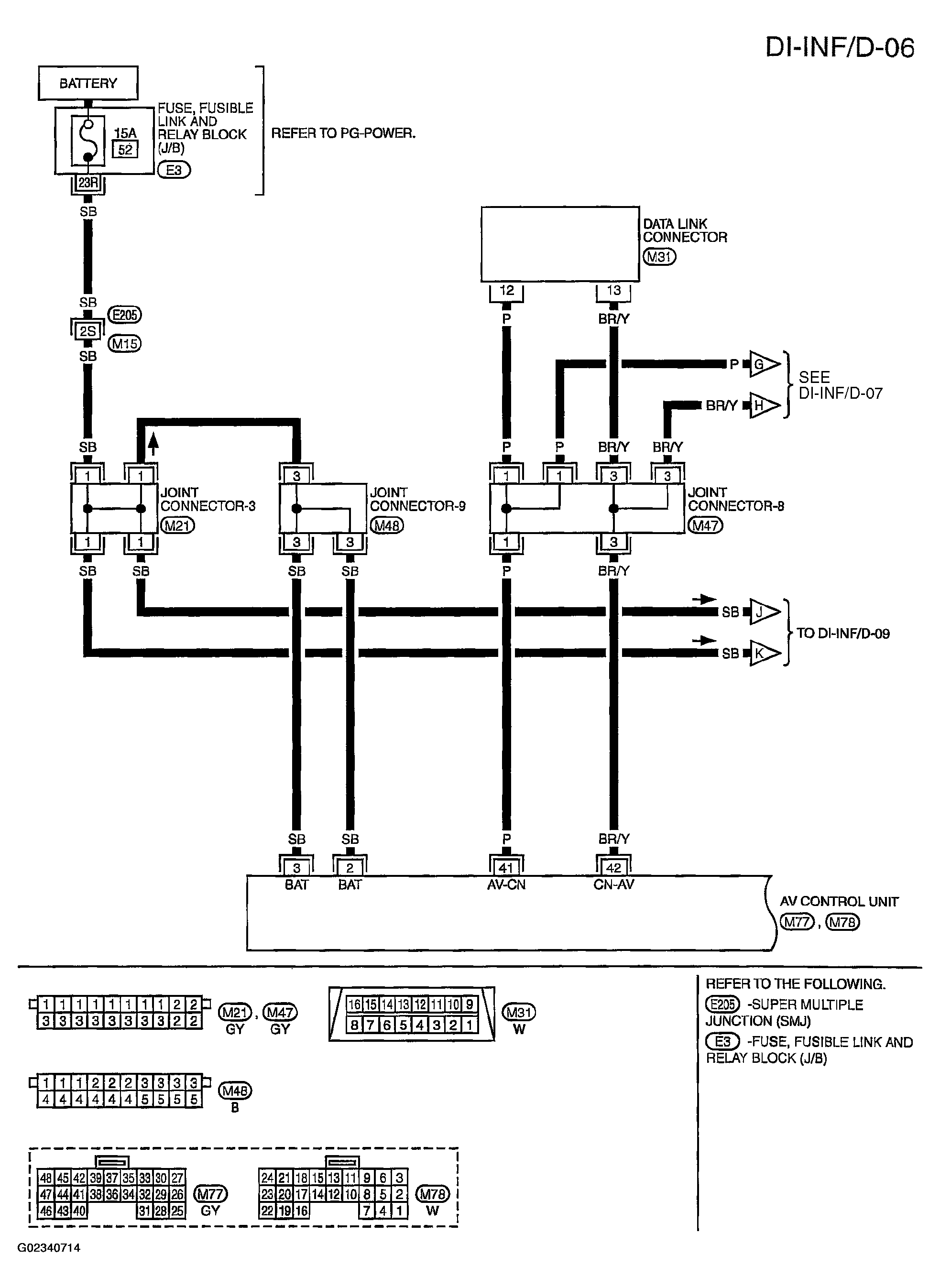

Fig 1: Wiring Diagram DI-INF/D-06 (Without Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.

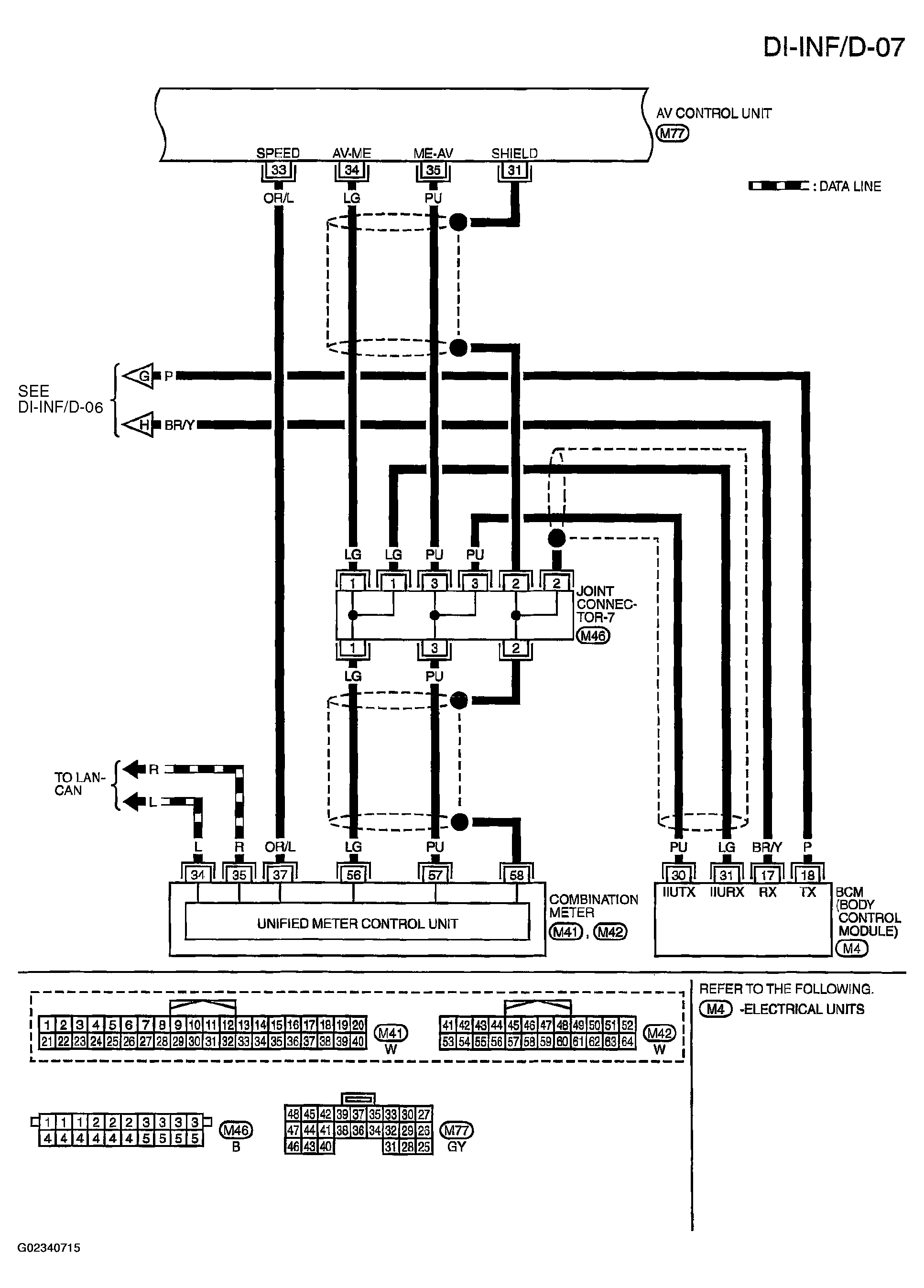

Fig 2: Wiring Diagram DI-INF/D-07 (Without Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.

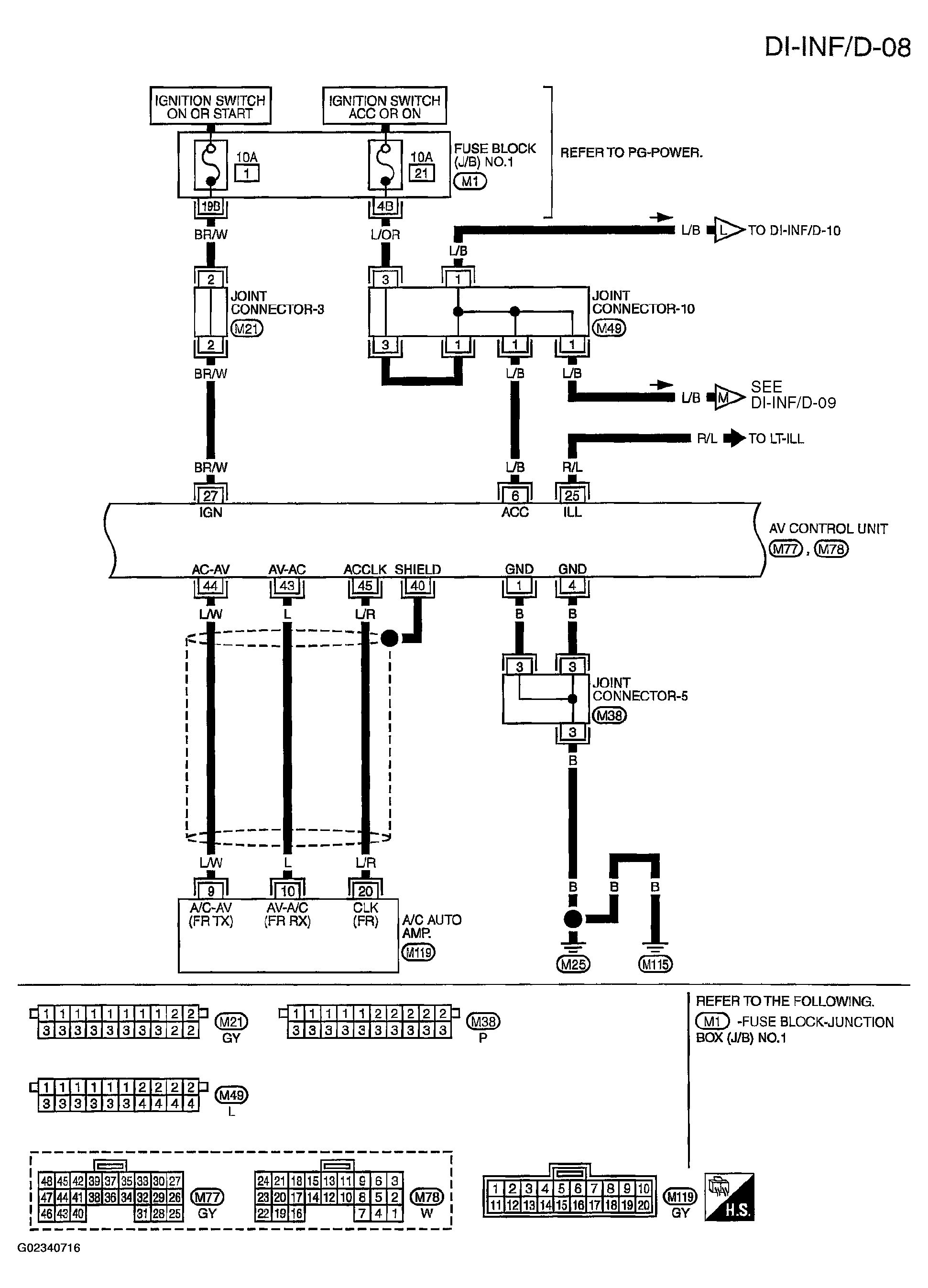

Fig 3: Wiring Diagram DI-INF/D-08 (Without Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.

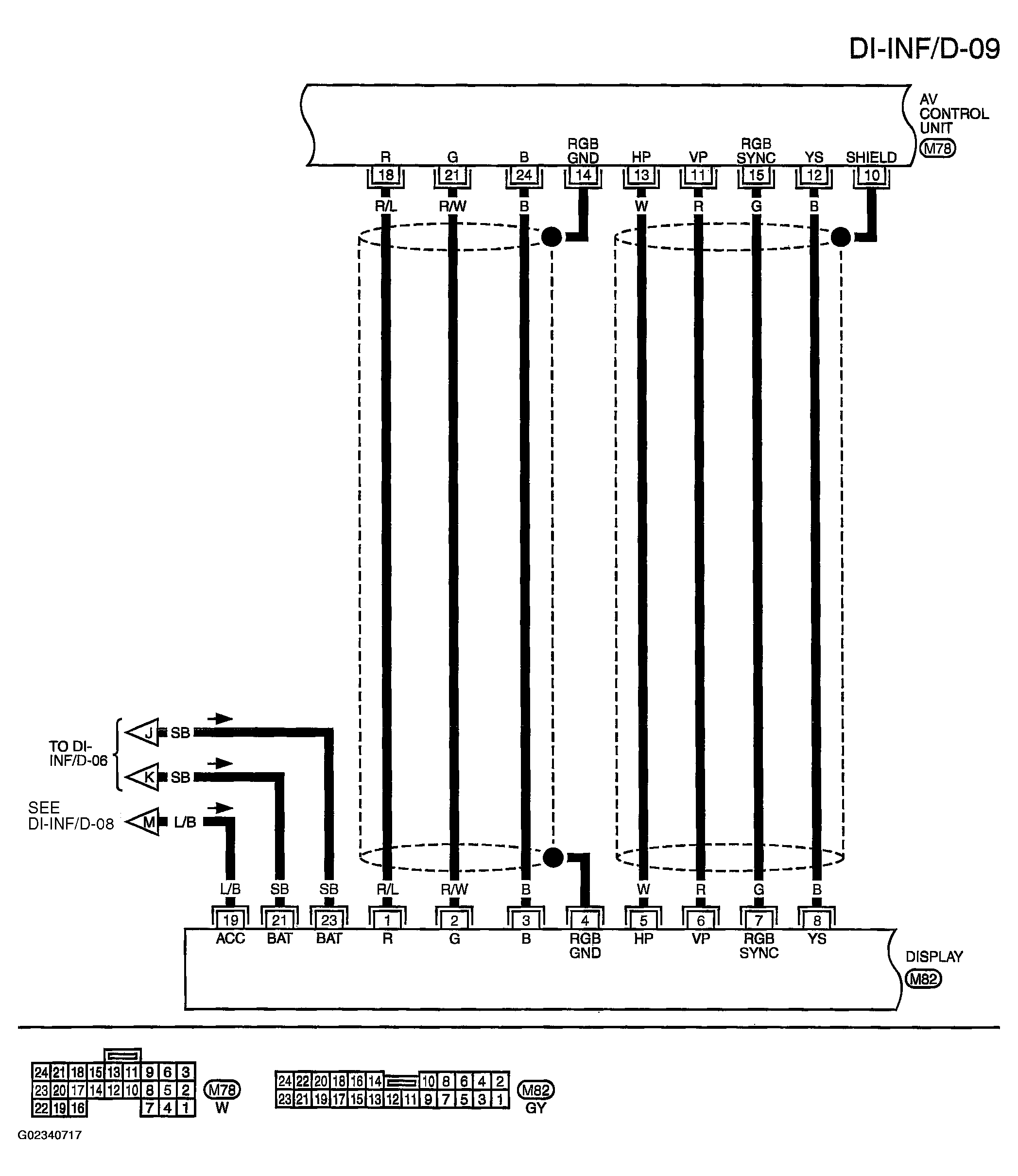

Fig 4: Wiring Diagram DI-INF/D-09 (Without Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.

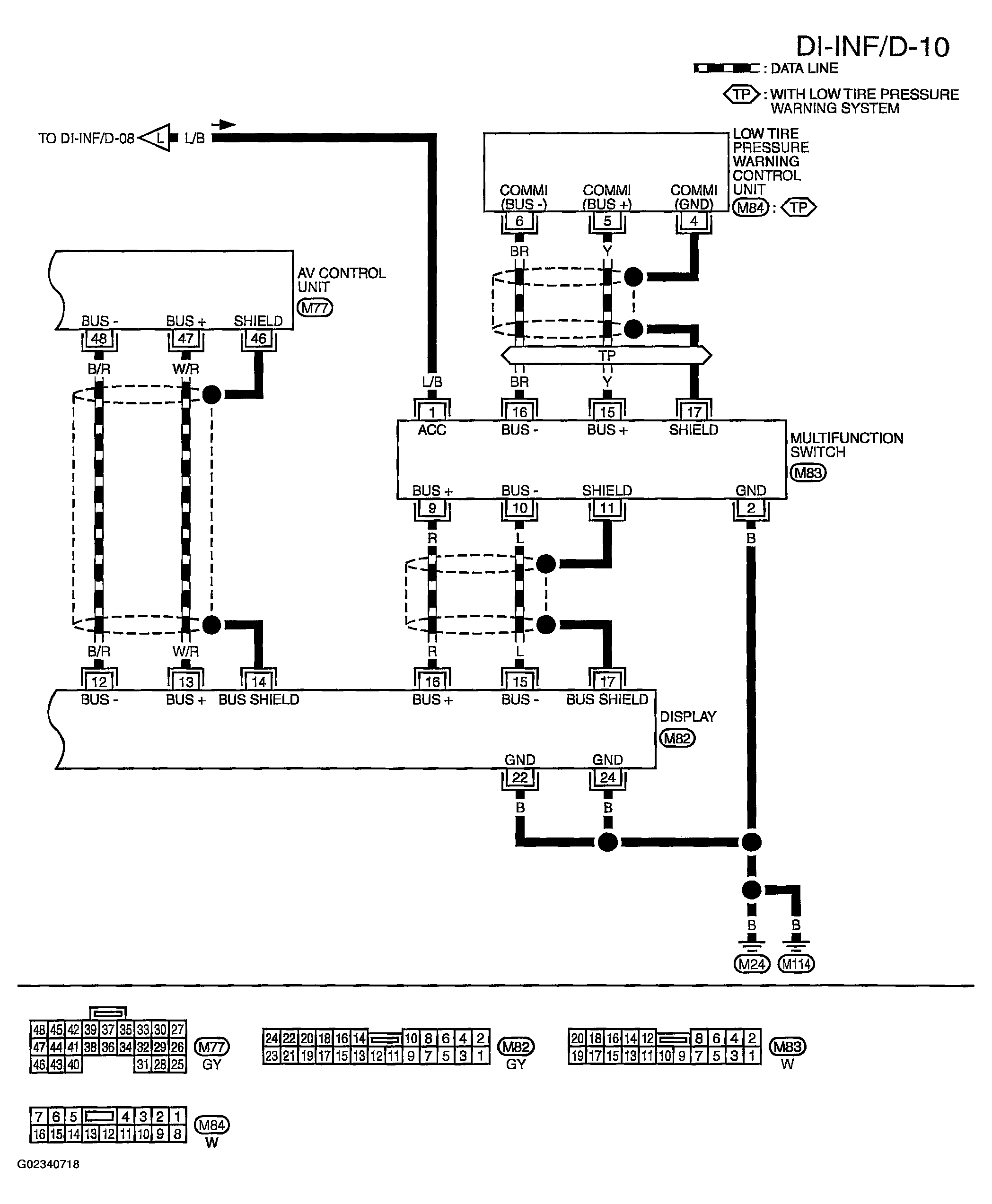

Fig 5: Wiring Diagram DI-INF/D-0 (Without Navigation System)
Courtesy of NISSAN MOTOR CO., U.S.A.
