Terminals and Reference Value for Multifunction Switch

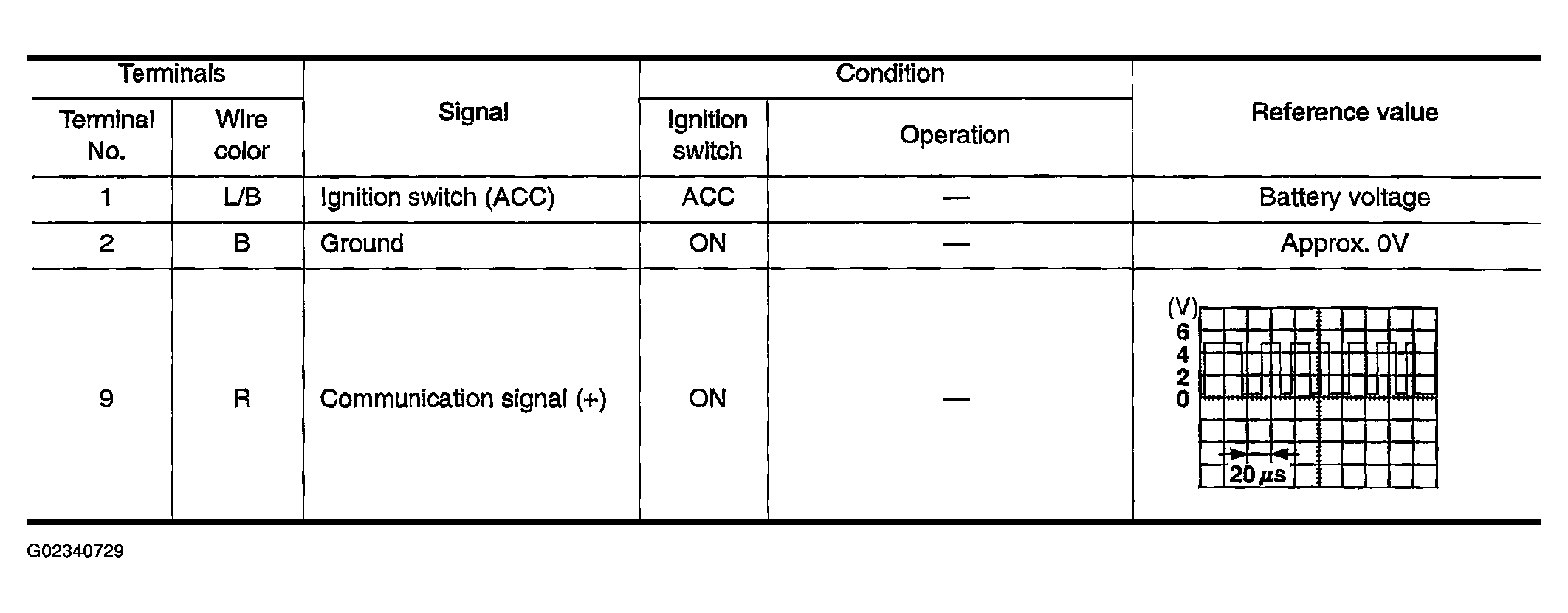

Fig 1: Terminals And Reference Value For Multifunction Switch Chart (1 Of 2)
G02340729Courtesy of NISSAN MOTOR CO., U.S.A.

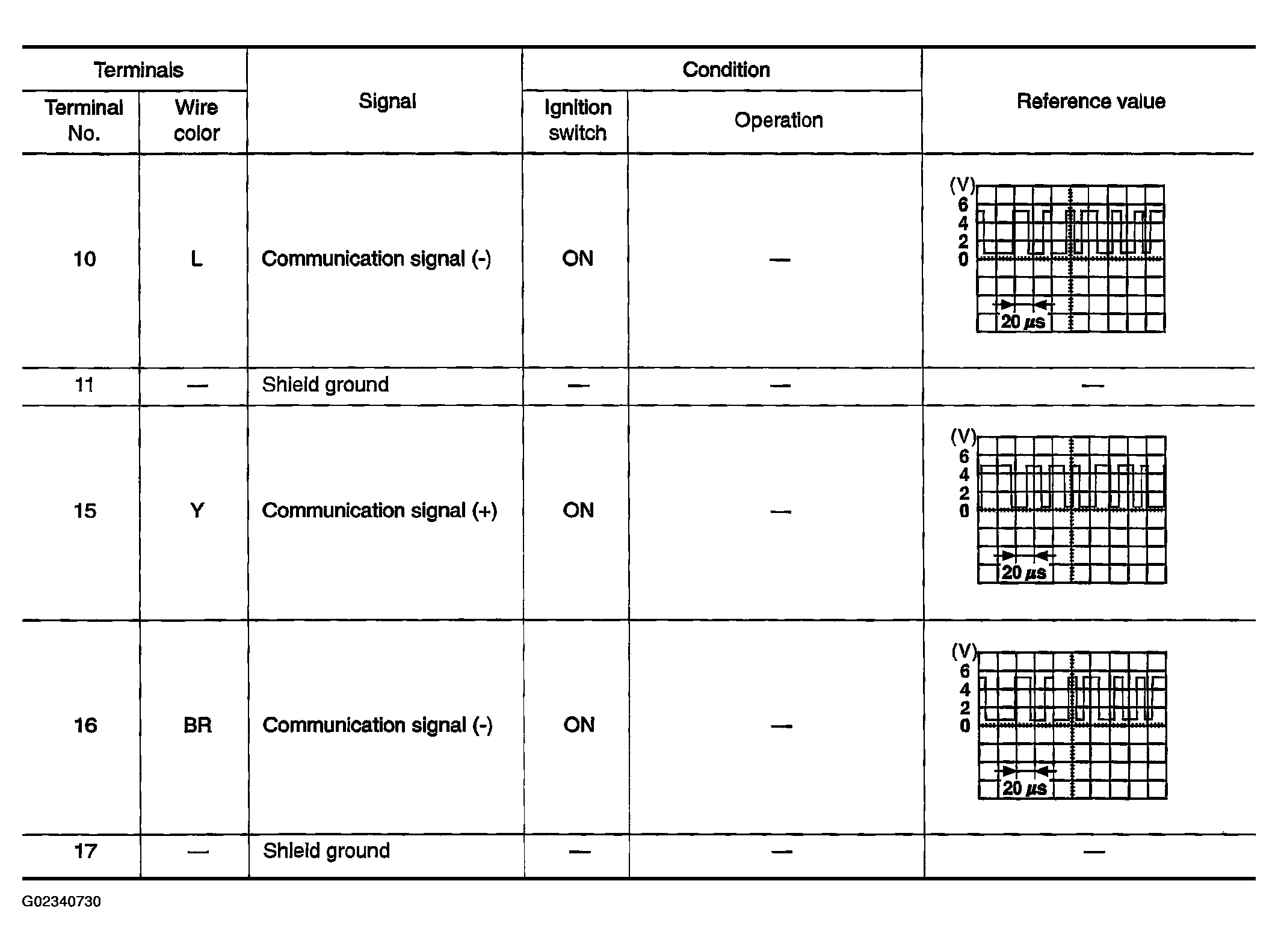

Fig 2: Terminals And Reference Value For Multifunction Switch Chart (2 Of 2)
G02340730Courtesy of NISSAN MOTOR CO., U.S.A.
