Setting Of Vehicle Status: Notes

Setting of electric status can be changed by multifunction switch. The signal is sent to BCM through AV and NAVI control unit to change vehicle electric system setting.
AV and NAVI control unit is communicating with BCM and combination meter.

Press "SETTING" switch to display vehicle information display.

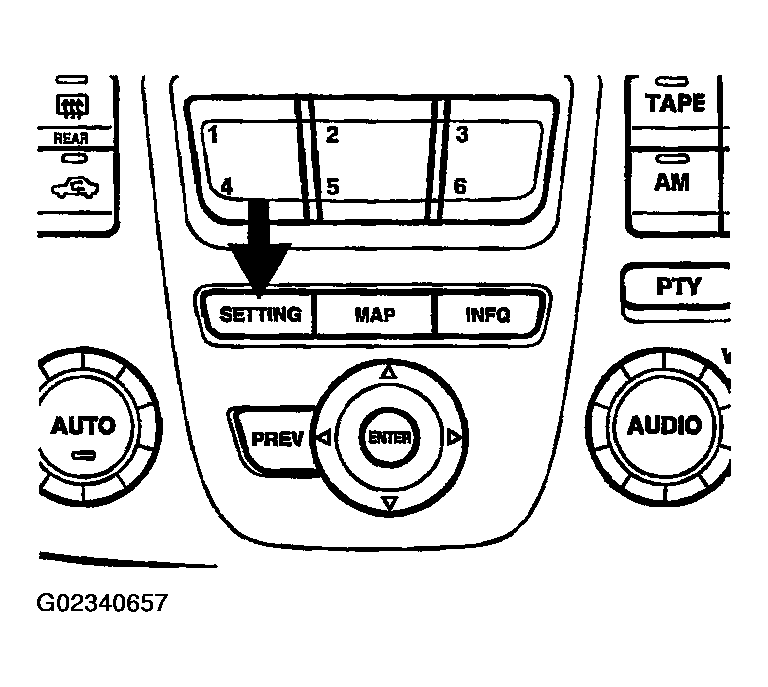

Fig 1: Locating Setting Switch On Vehicle Information Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Vehicle Electronic System".

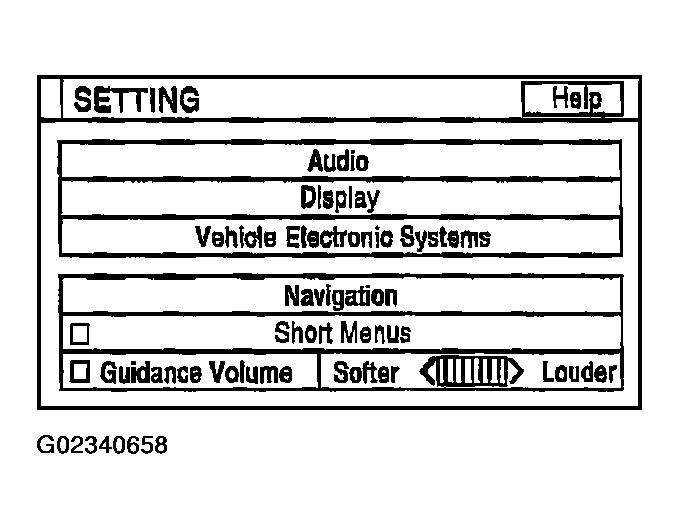

Fig 2: Identifying Select Vehicle Electronic System Display (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Select a vehicle status shown on the display.
Adjustable vehicle status:
- Language/Unit
- Lift Steering Column When Exiting Vehicle.
- Adjust Driver Seat When Exiting Vehicle
- Illuminate Interior When Unlocking Vehicle

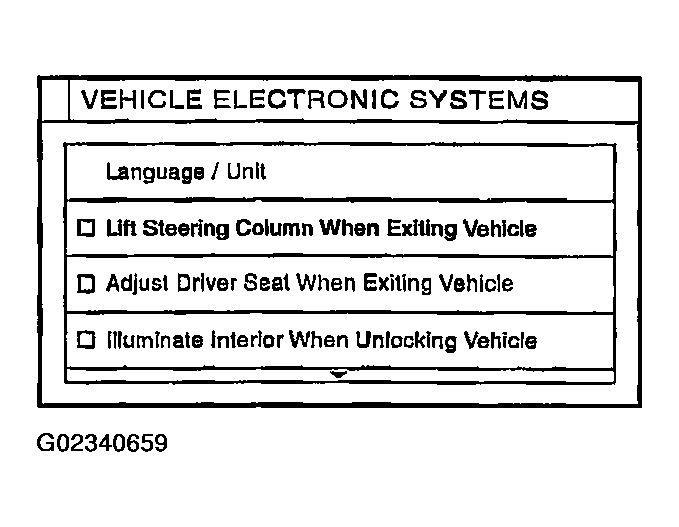

  Fig 3: Identifying Select Vehicle Electronic System Display (2 Of 4)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Interior Lights Off Delay
- Sensitivity of Automatic Headlights
- Automatic Headlights Off Delay
- Key Remote Response-Horn/Lights

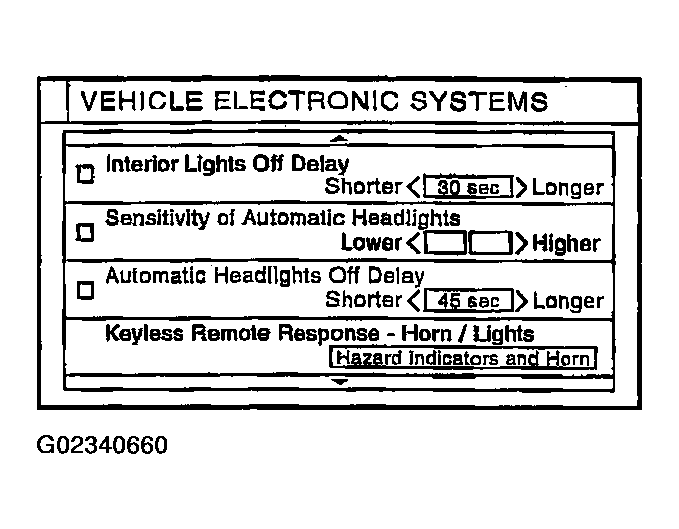

  Fig 4: Identifying Select Vehicle Electronic System Display (3 Of 4)
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Remote Custom Setting
- Return All Setting to Default

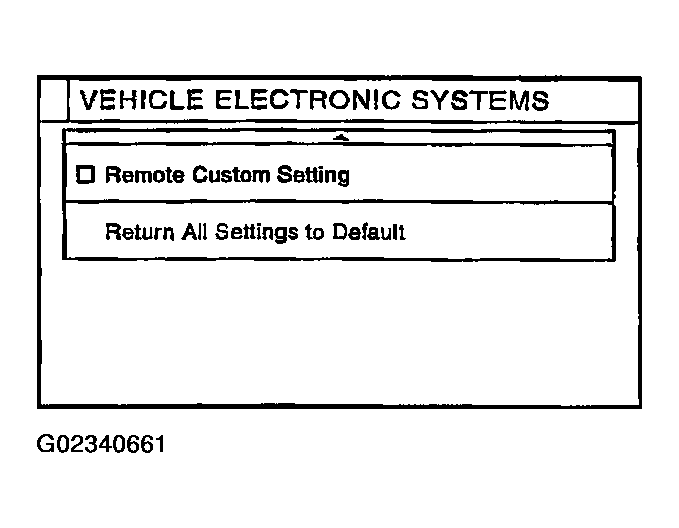

  Fig 5: Identifying Select Vehicle Electronic System Display (4 Of 4)
  Courtesy of NISSAN MOTOR CO., U.S.A.
