Terminals and Reference Value for Display

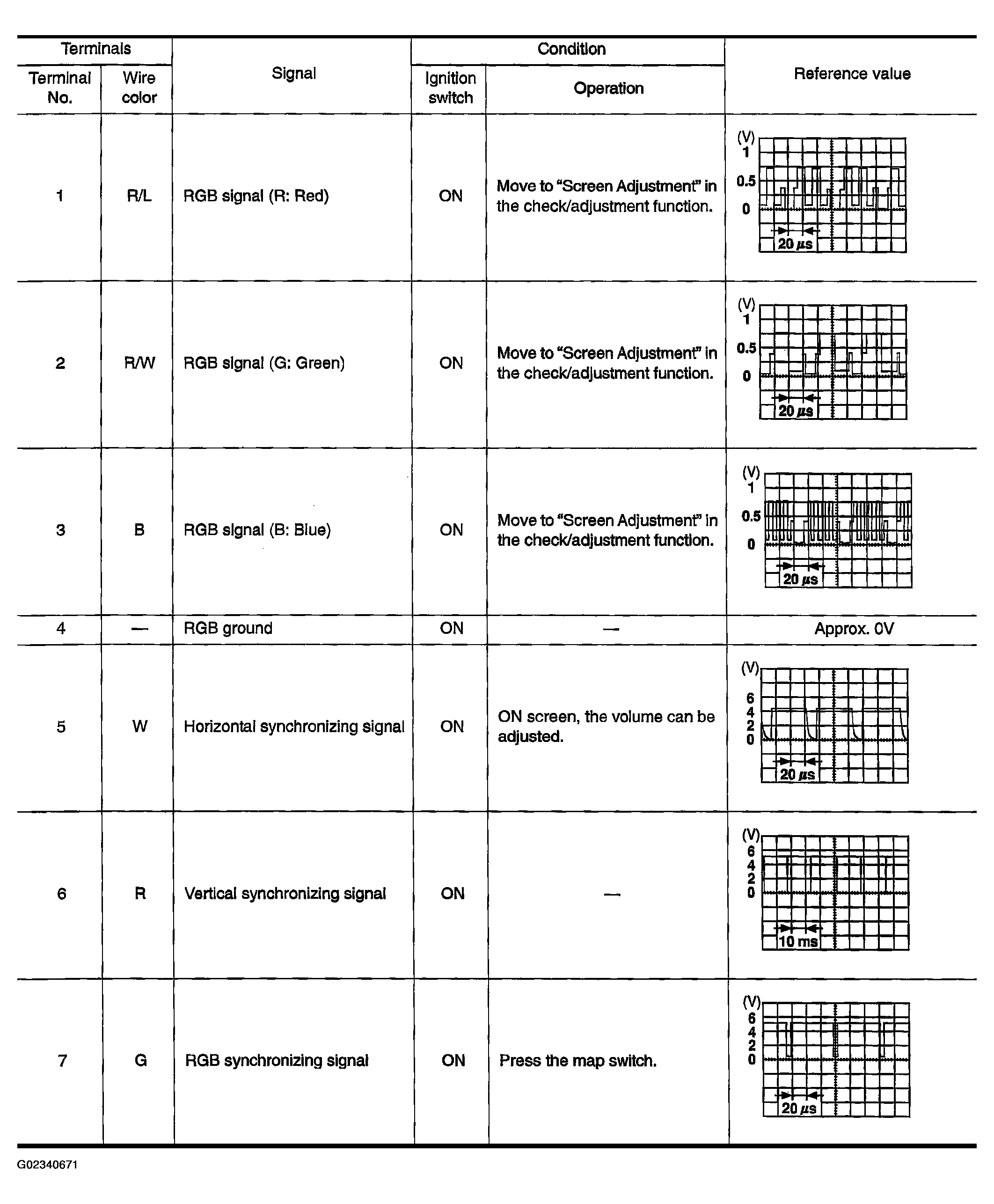

Fig 1: Terminals & Reference Value For Display (1 Of 2)
G02340671Courtesy of NISSAN MOTOR CO., U.S.A.

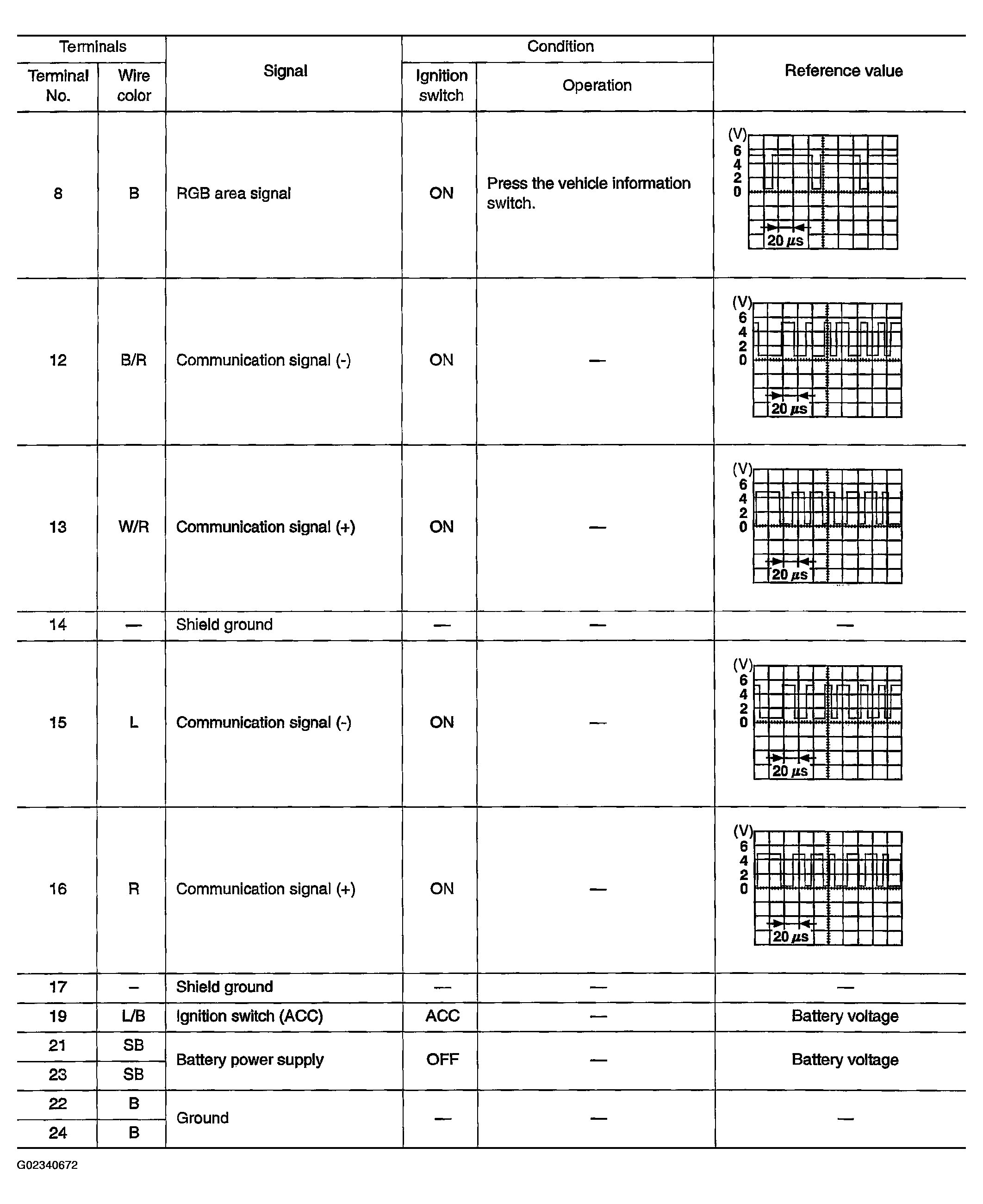

Fig 2: Terminals & Reference Value For Display (2 Of 2)
G02340672Courtesy of NISSAN MOTOR CO., U.S.A.
