Consult-II Reference Value In Data Monitor Mode
Specification data are reference values.

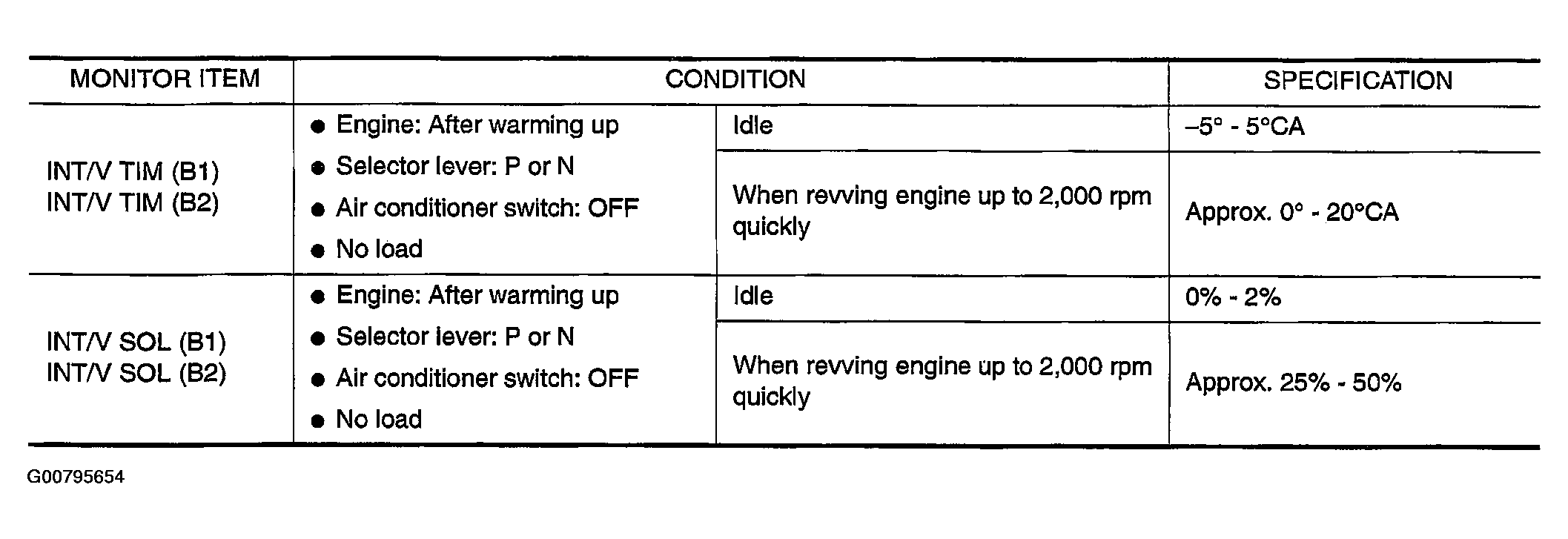

Fig 1: Reference Value Specifications Displayed In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
