Fuel Pump Relay

Check continuity between terminals 3 and 5 under the following conditions.

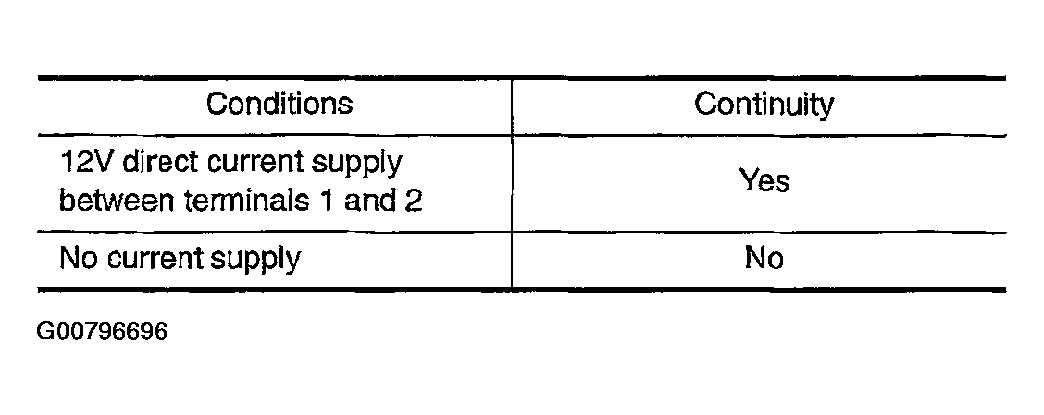

Fig 1: Inspecting Condition Chart
G00796696Courtesy of NISSAN MOTOR CO., U.S.A.

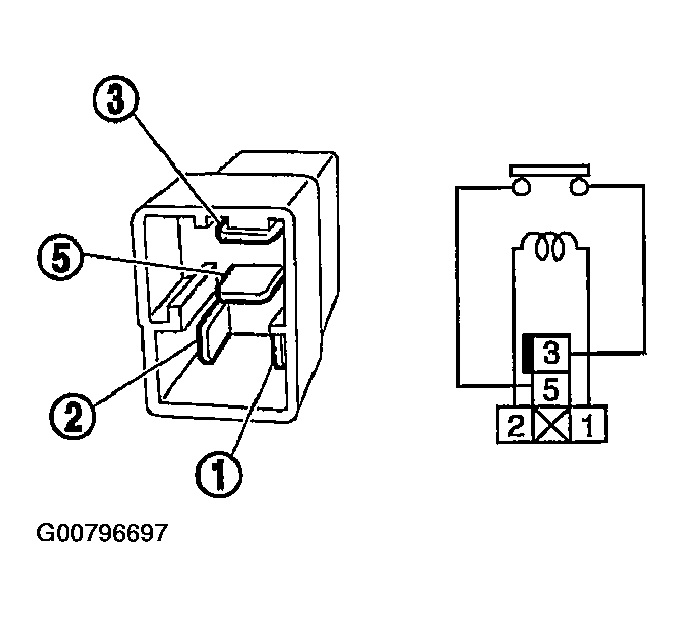

Fig 2: Identifying Fuel Pump Relay Terminals
G00796697Courtesy of NISSAN MOTOR CO., U.S.A.
