Description For Work Flow

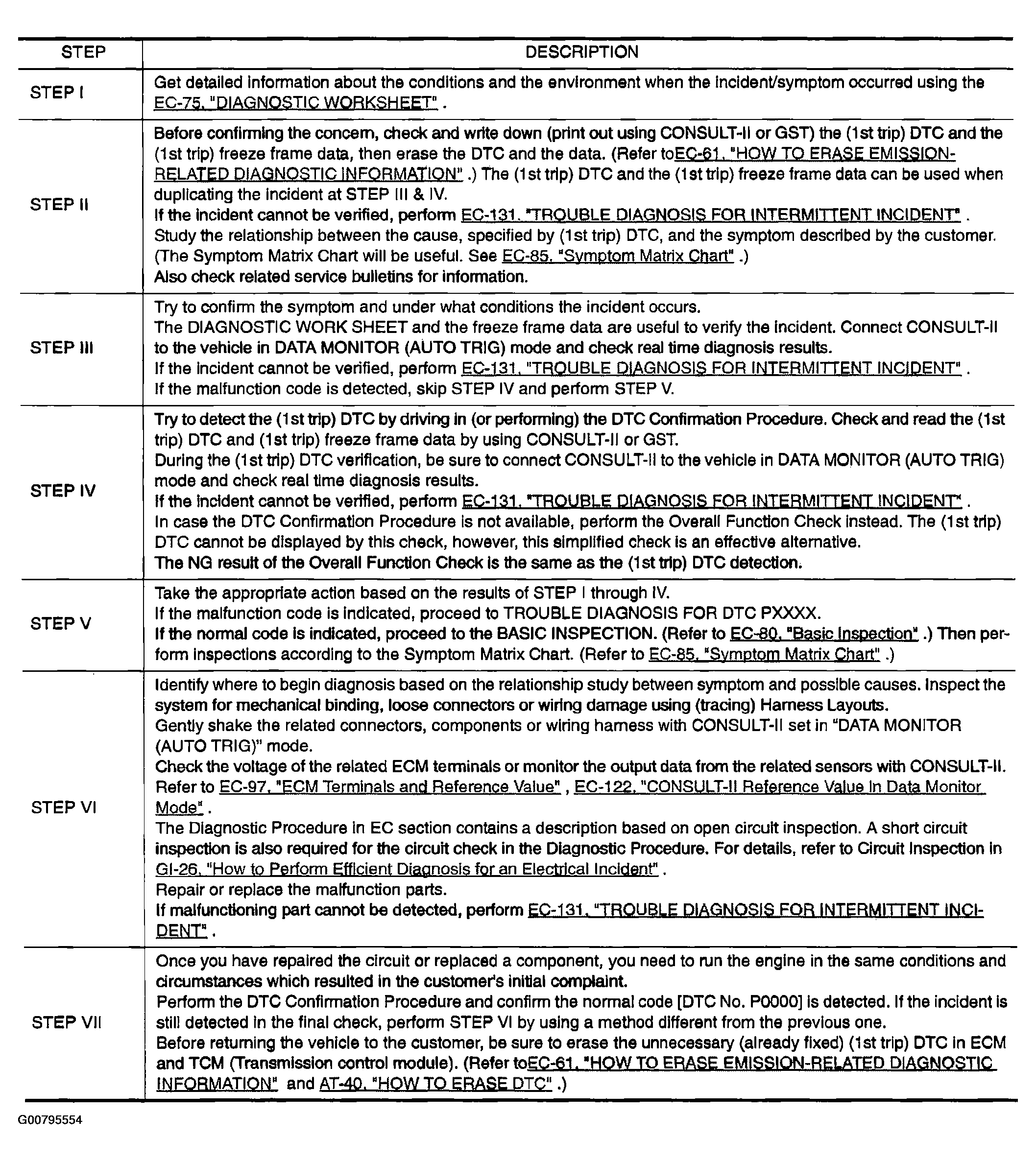

Fig 1: Identifying Work Flow Description Information

G00795554

Courtesy of NISSAN MOTOR CO., U.S.A.
