NISSAN Torque Demand (NTD) Control System
>>
Input/Output Signal Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Input/Output Signal Chart

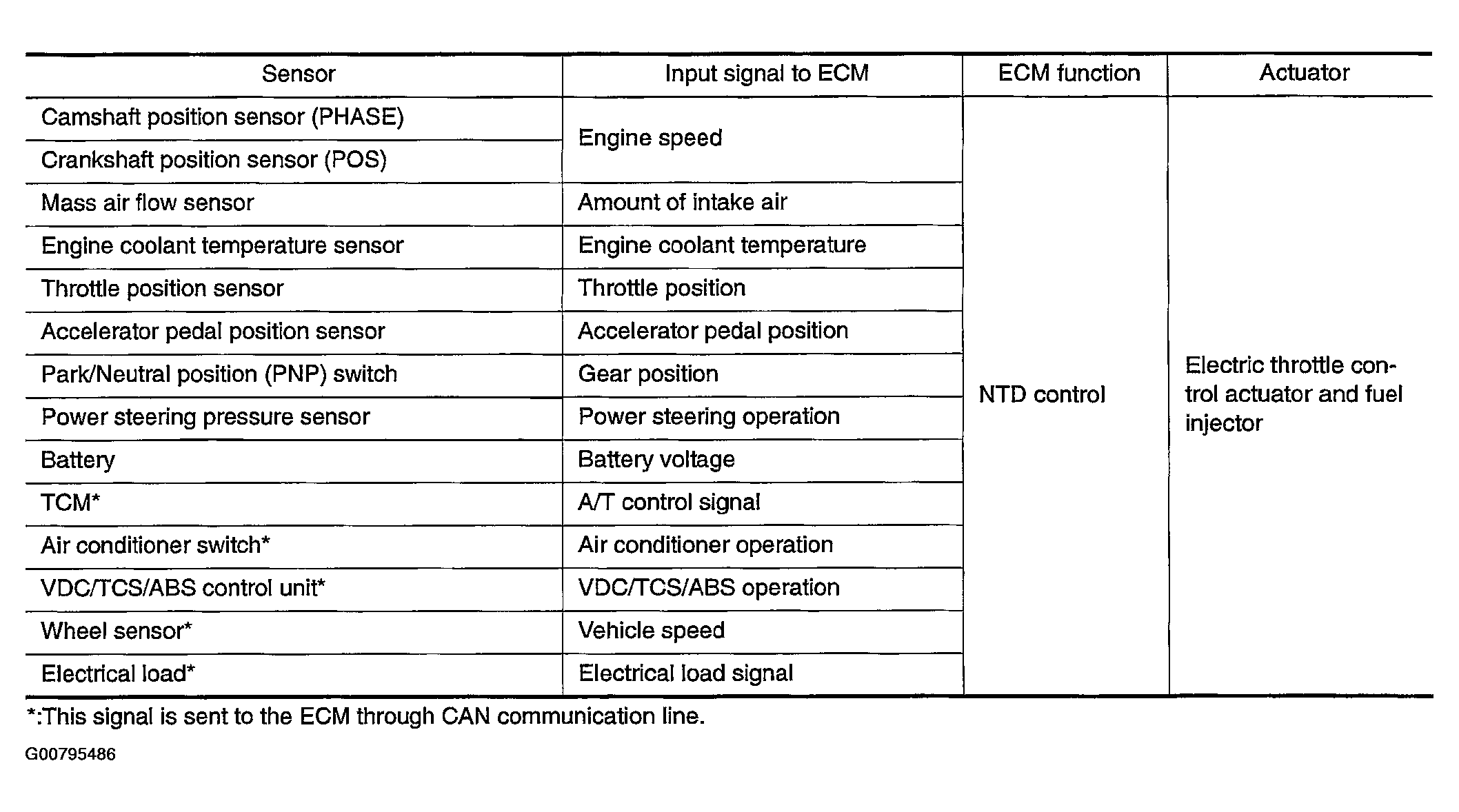

Fig 1: Identifying (NTD) Control System Input/Output Signal Information
Courtesy of NISSAN MOTOR CO., U.S.A.
