System - Basic Engine Control System

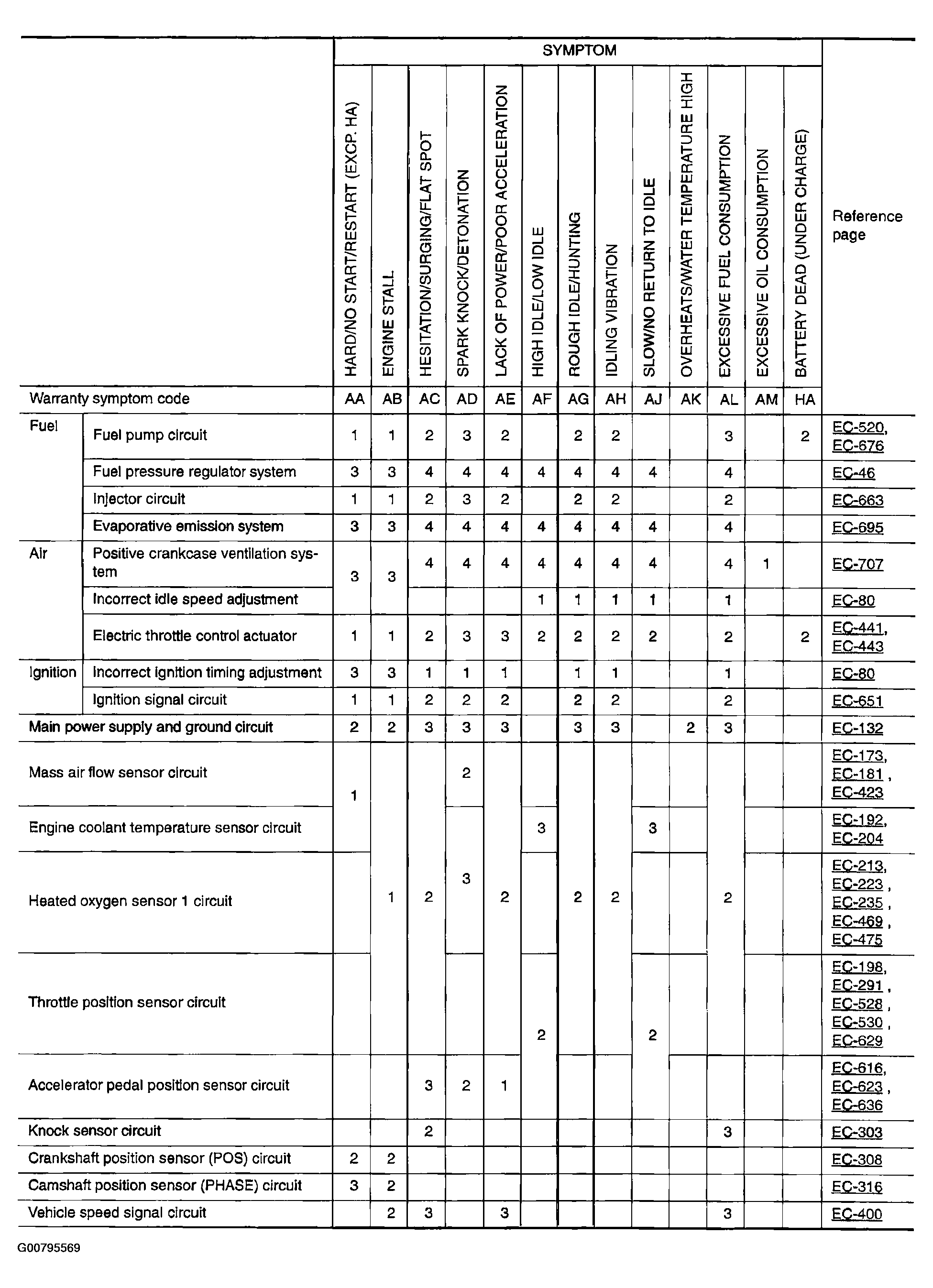

Fig 1: Identifying Basic Engine Control System Information (1 Of 2)
G00795569Courtesy of NISSAN MOTOR CO., U.S.A.

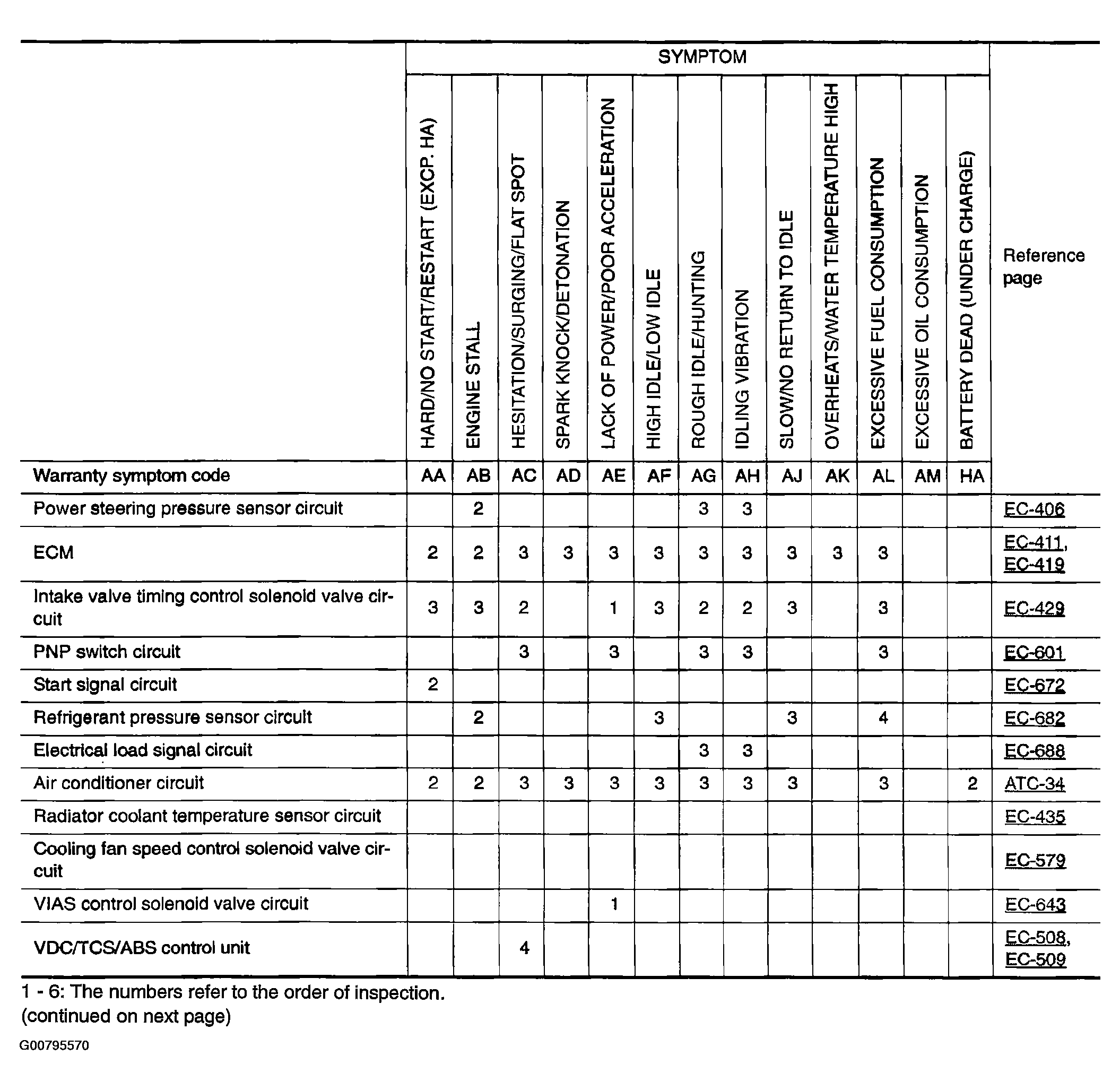

Fig 2: Identifying Basic Engine Control System Information (2 Of 2)
G00795570Courtesy of NISSAN MOTOR CO., U.S.A.
