Consult-II Inspection Procedure

With the ignition switch OFF, connect CONSULT-II and CONSULT-II and CONVERTER to the data link connector, and turn the ignition switch ON.

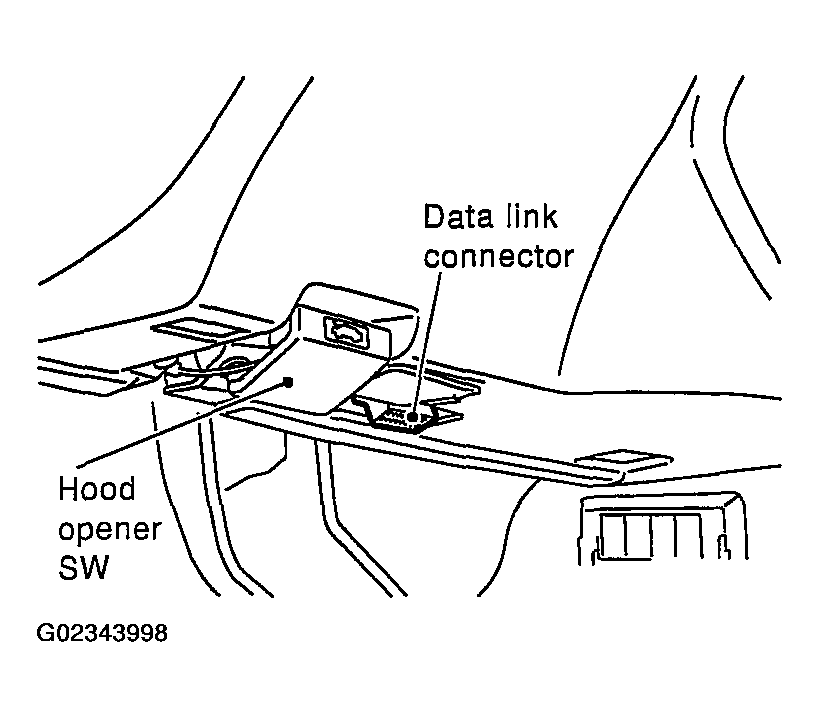

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

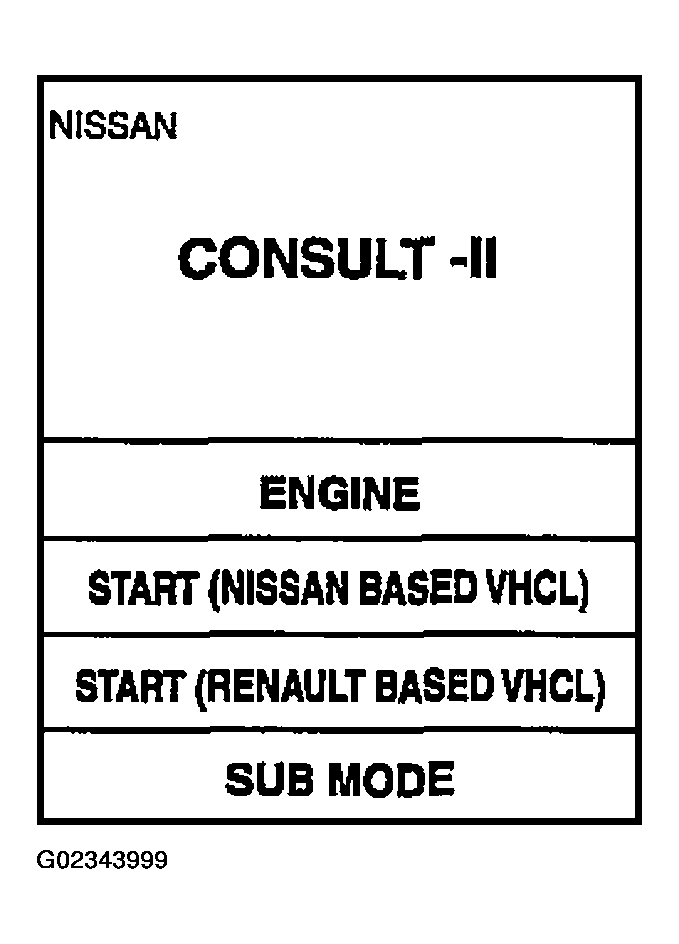

Fig 2: Identifying Start (Nissan Based VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on the "SELECT SYSTEM" screen.
If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) Circuit "

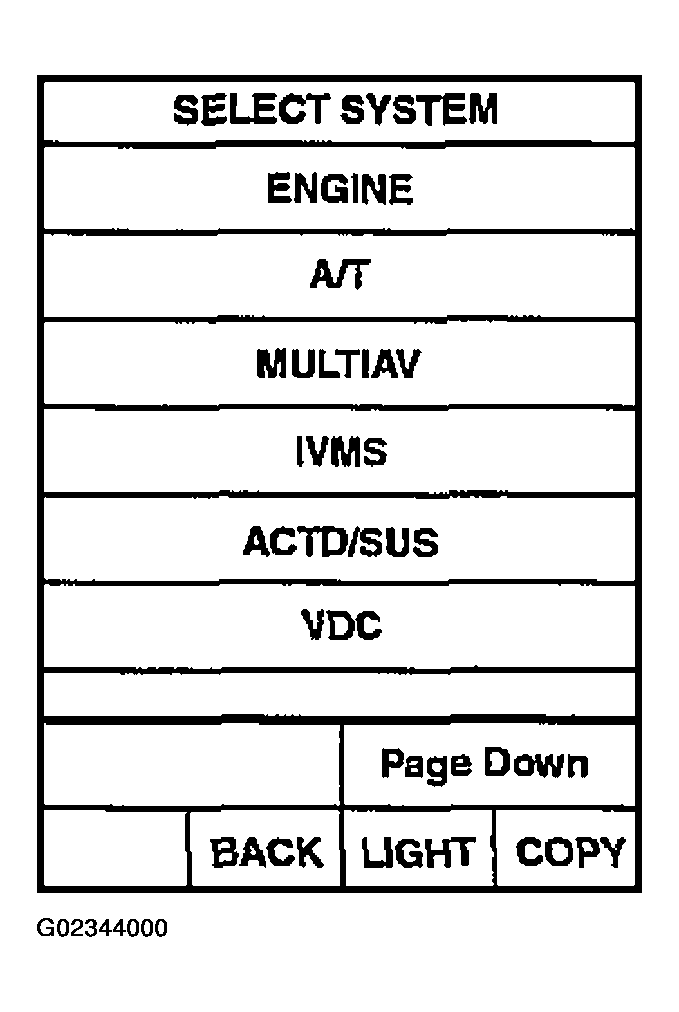

Fig 3: Identifying Select System
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WITH SUNROOF" on the "SELECT SYS COND" screen.

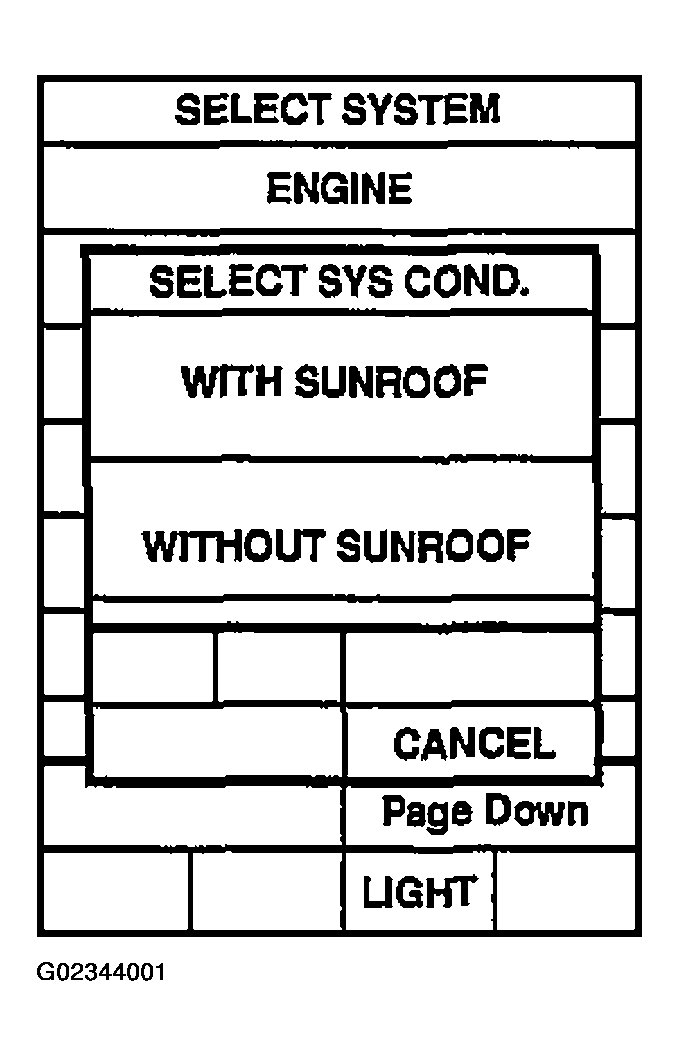

Fig 4: CONSULT-II Display Screen "SELECT SYS COND"

Courtesy of NISSAN MOTOR CO., U.S.A.

Touch "OK". If the selection is wrong, touch "CANCEL".
Touch "SUNROOF RELAY" on the "SELECT TEST ITEM" screen.

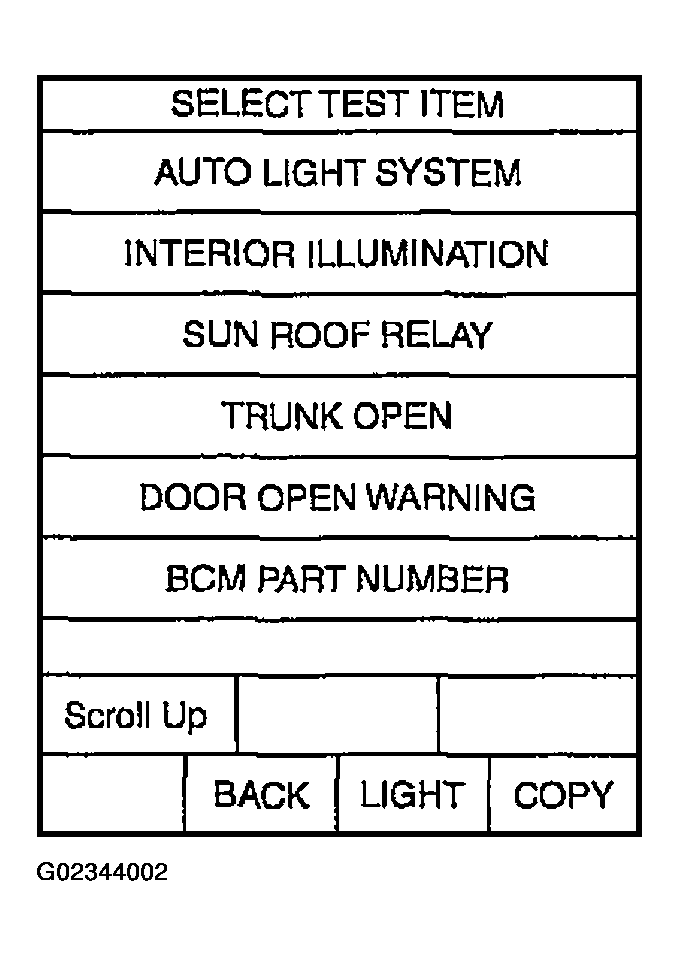

Fig 5: Identifying Select Test Item
