Console Box Assembly

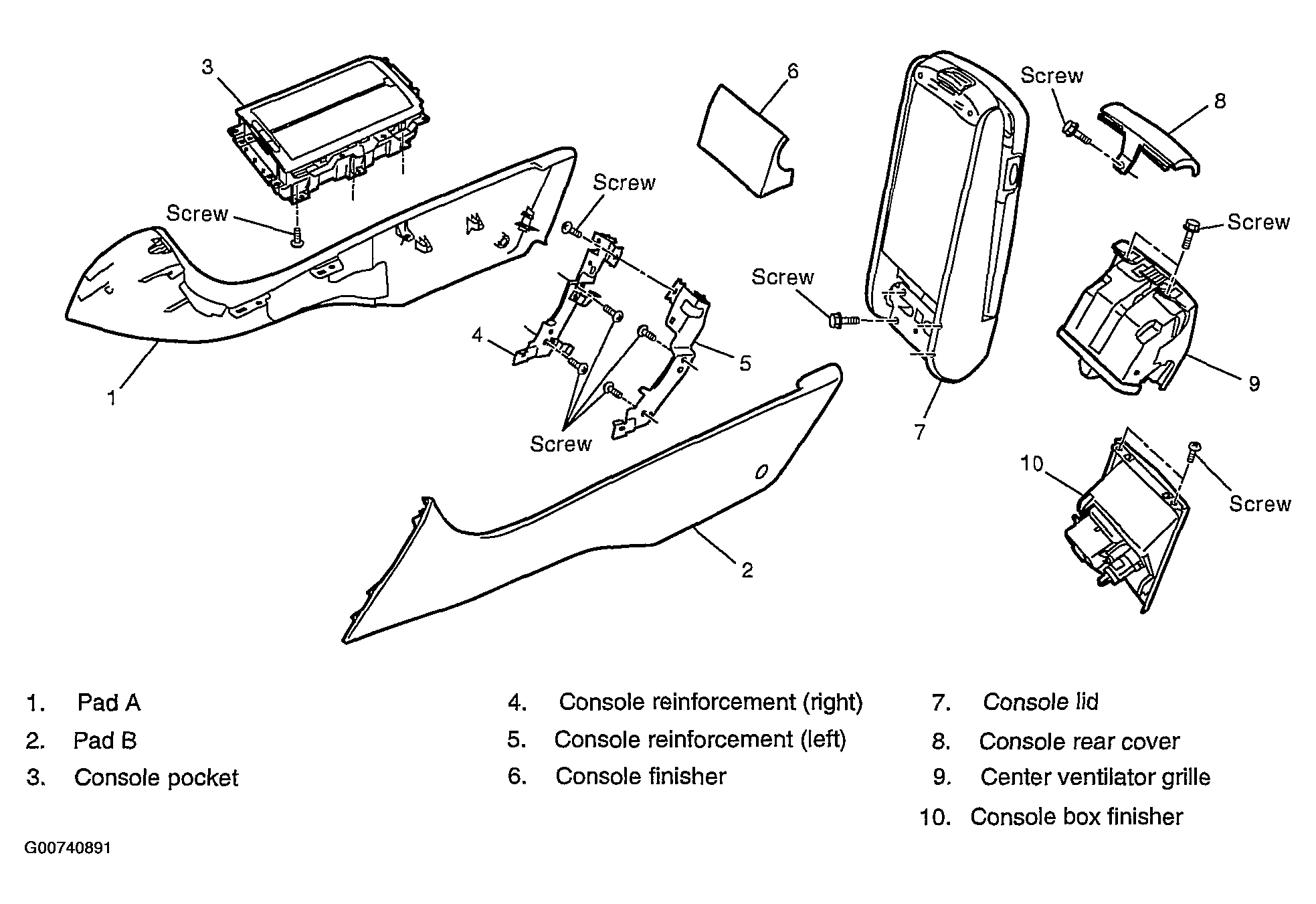

Fig 1: Displaying Console Box Assembly Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
