DTC P1102: MAF Sensor: Wiring Diagram

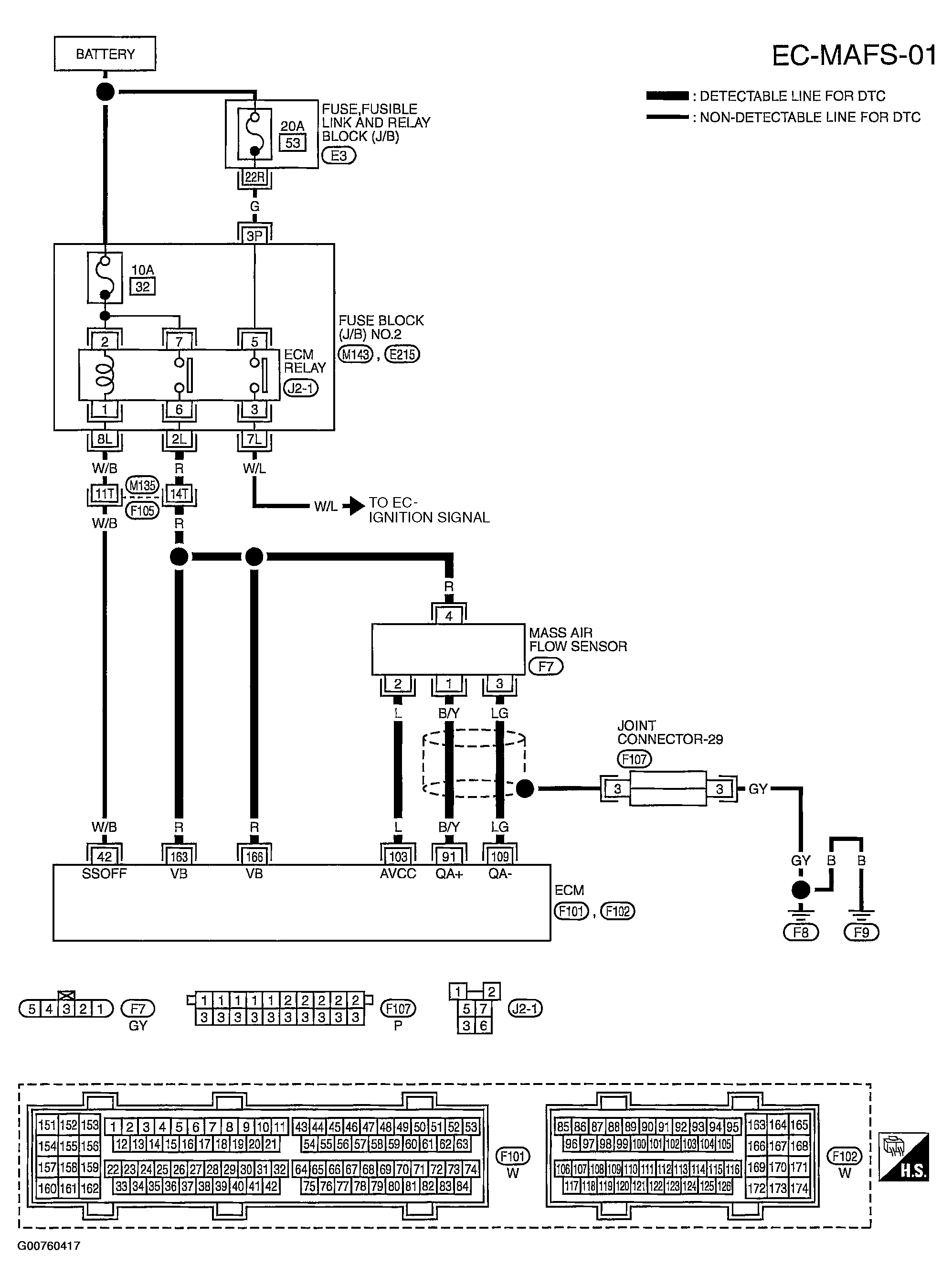

For circuit diagram of MAF sensor, see Figure.

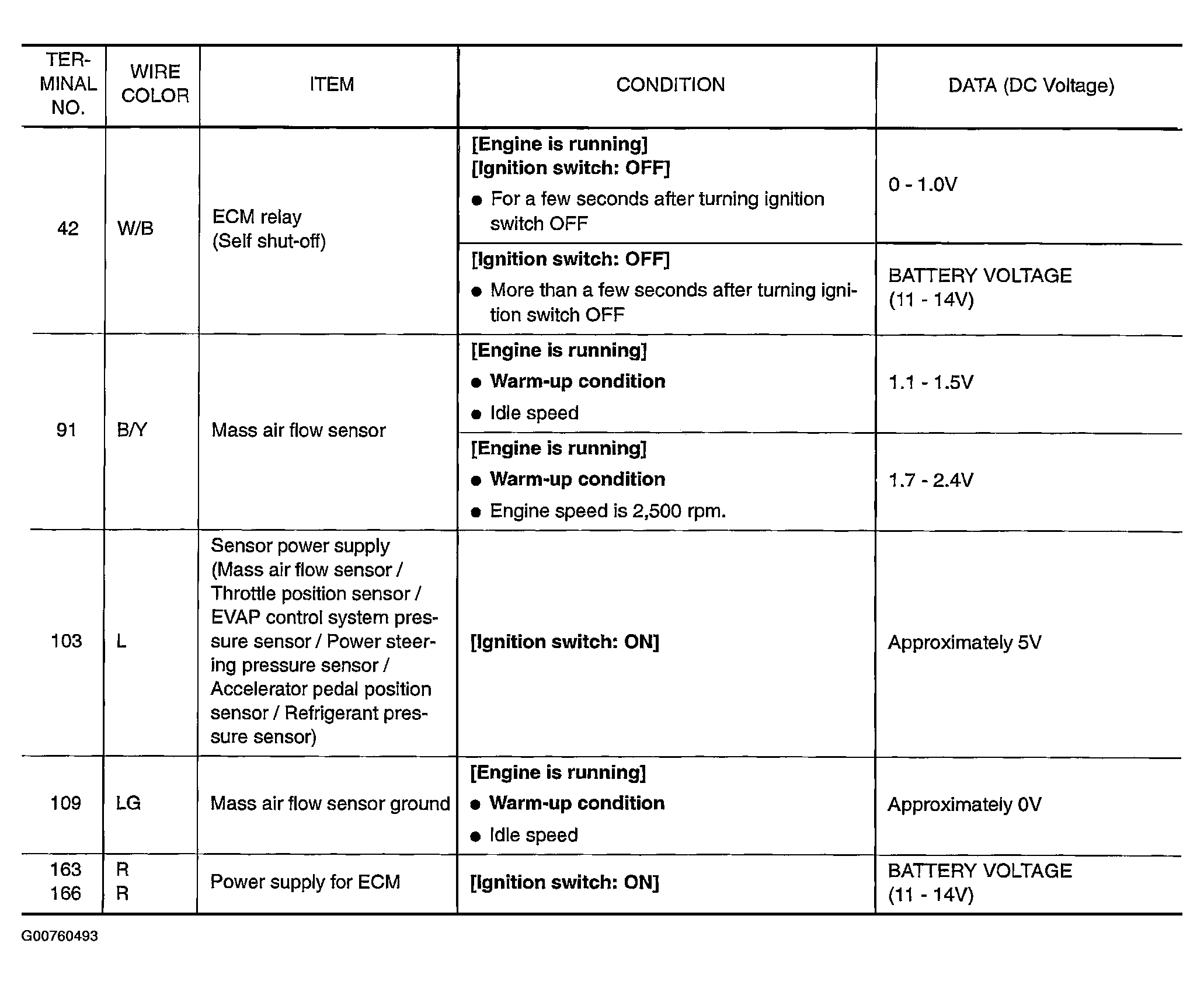

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

Fig 1: Specification data & reference values

Courtesy of NISSAN MOTOR CO., U.S.A.
