2. Check Radiator Coolant Temperature Sensor Power Supply Circuit

1. Disconnect radiator coolant temperature sensor harness connector.
2. Turn ignition switch ON.

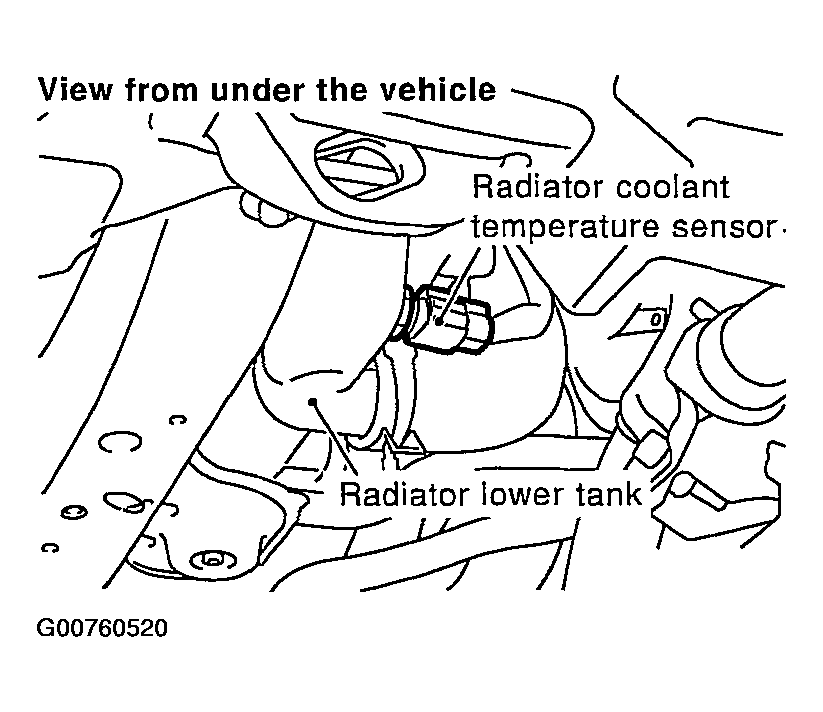

   Fig 1: Locating Radiator Coolant Temperature Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between radiator coolant temperature sensor terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Approximately 5V

OK or NG

OK : GO TO 4.

NG : GO TO 3.

Fig 2: Checking voltage between radiator coolant temperature sensor terminal 1 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.
