Alphabetical Index

NOTE: If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

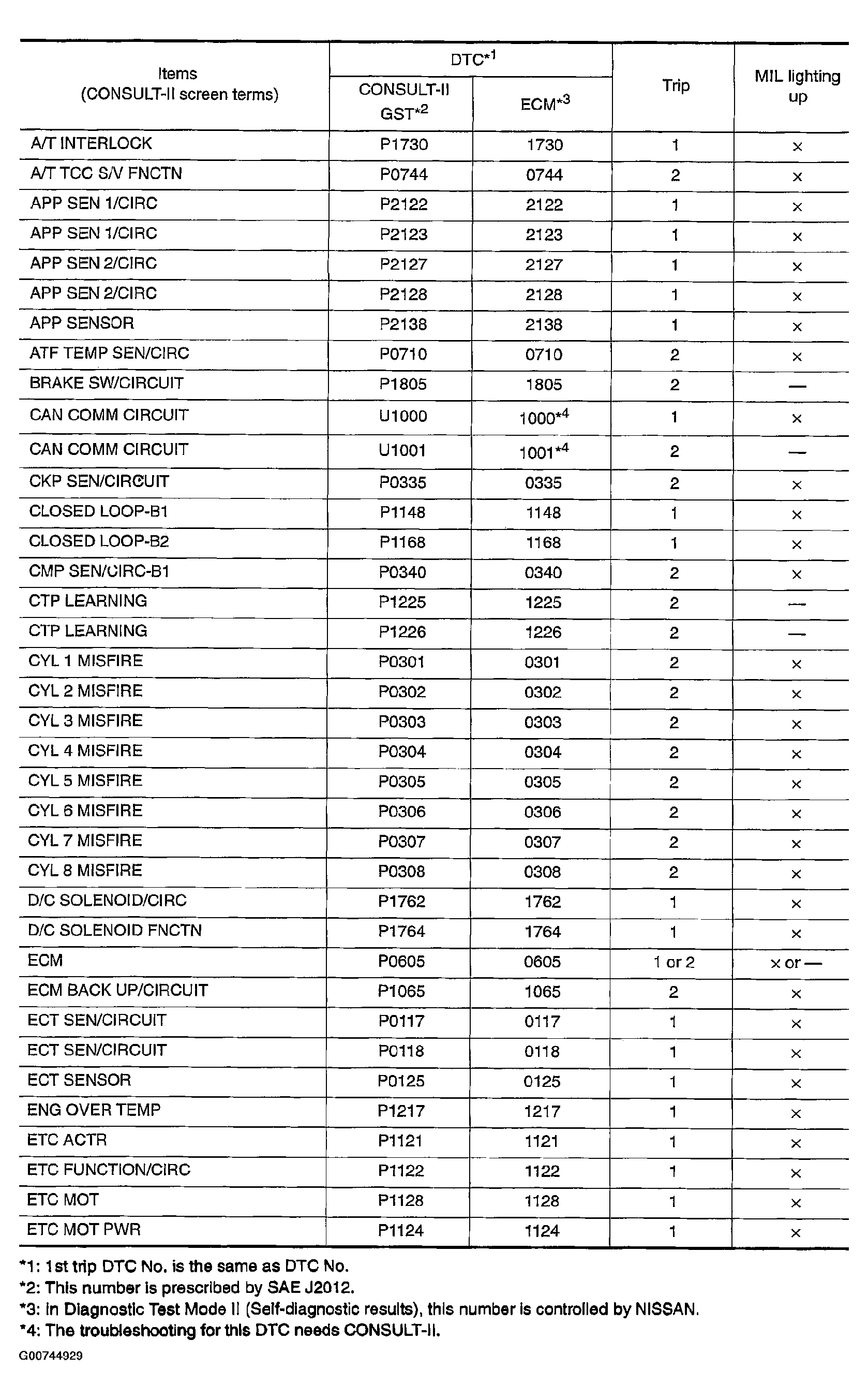

Fig 1: Alphabetical Index (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

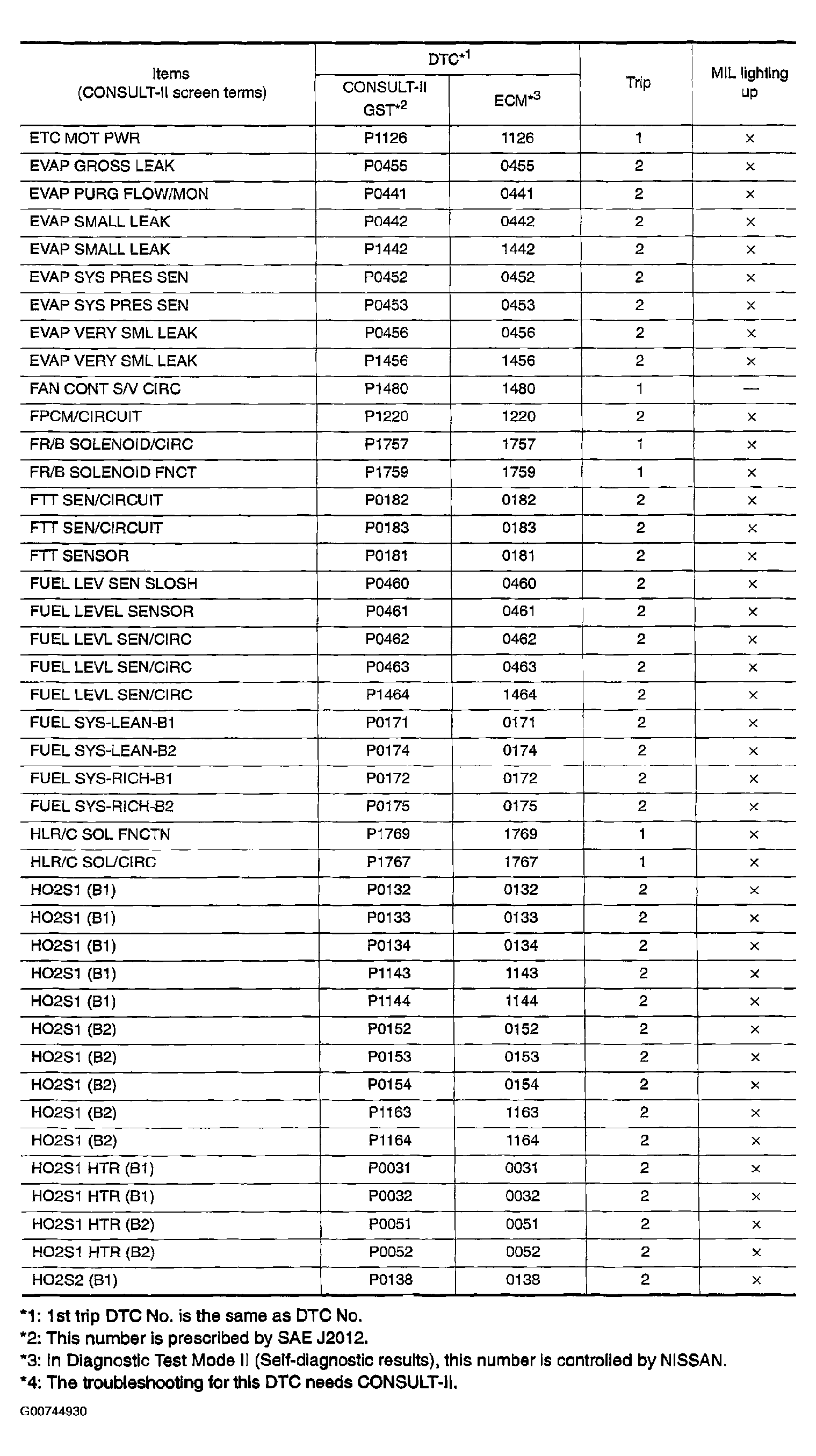

Fig 2: Alphabetical Index (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

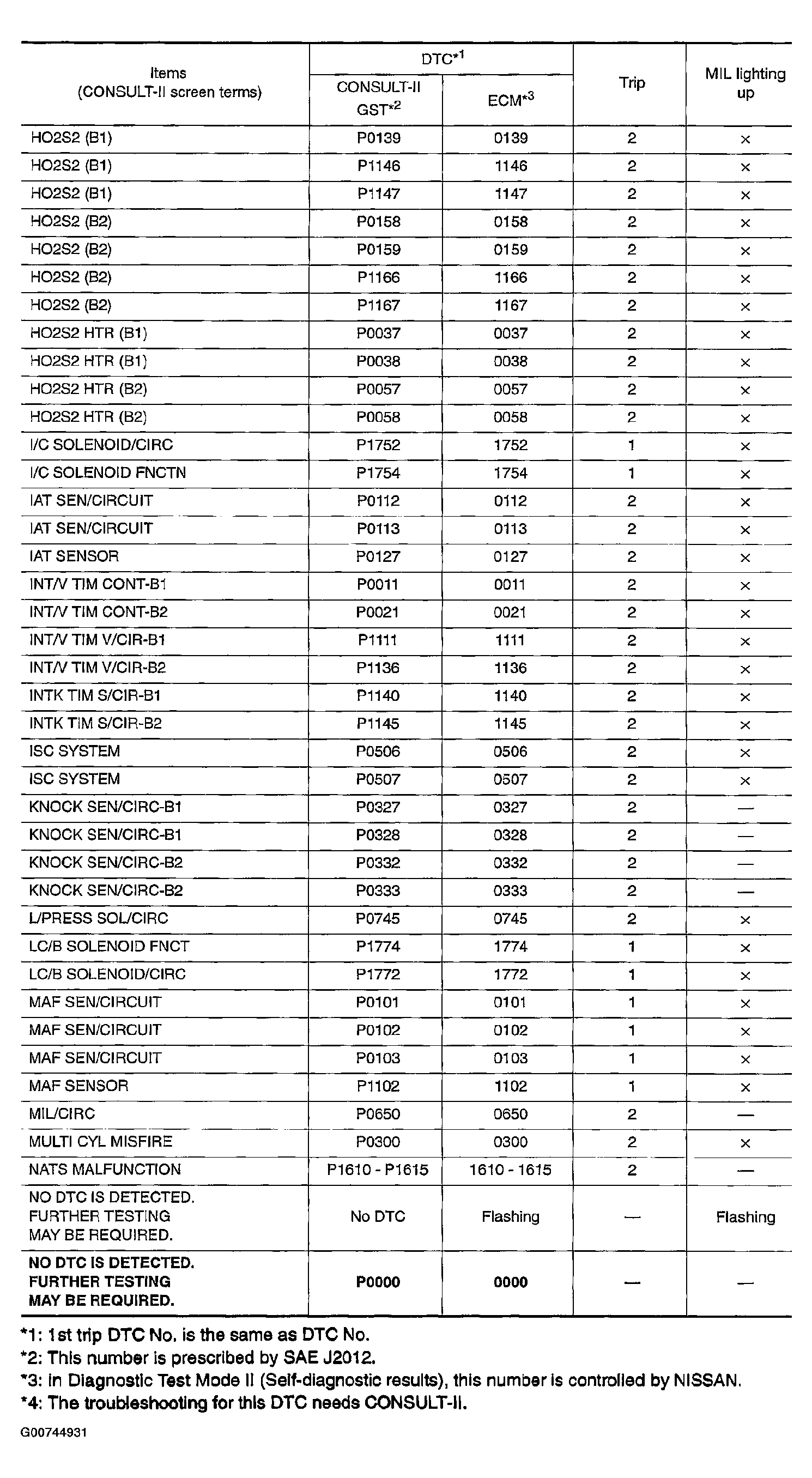

Fig 3: Alphabetical Index (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

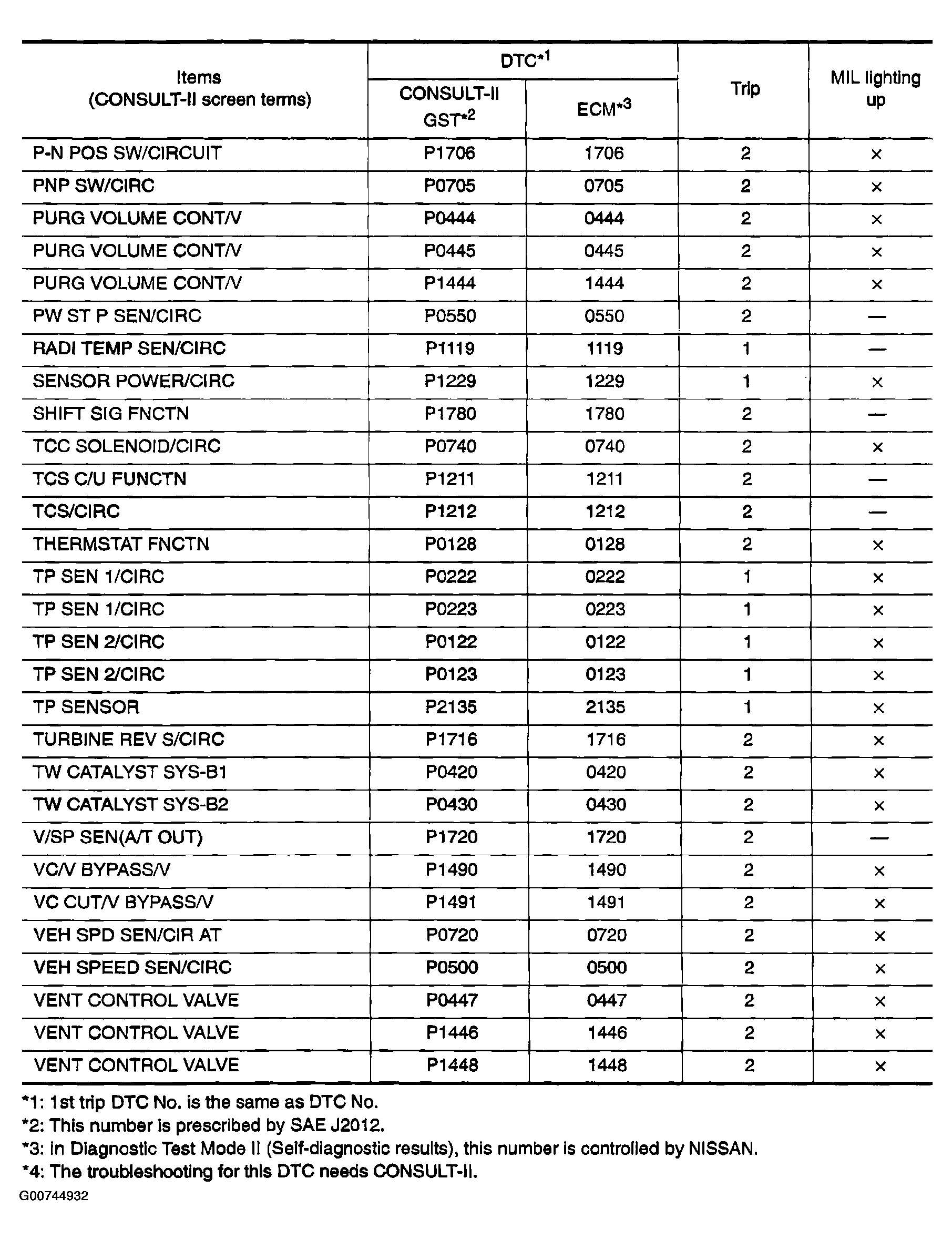

Fig 4: Alphabetical Index (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
