Shift Rod Components

  1. Remove check plug, then check spring and check ball.

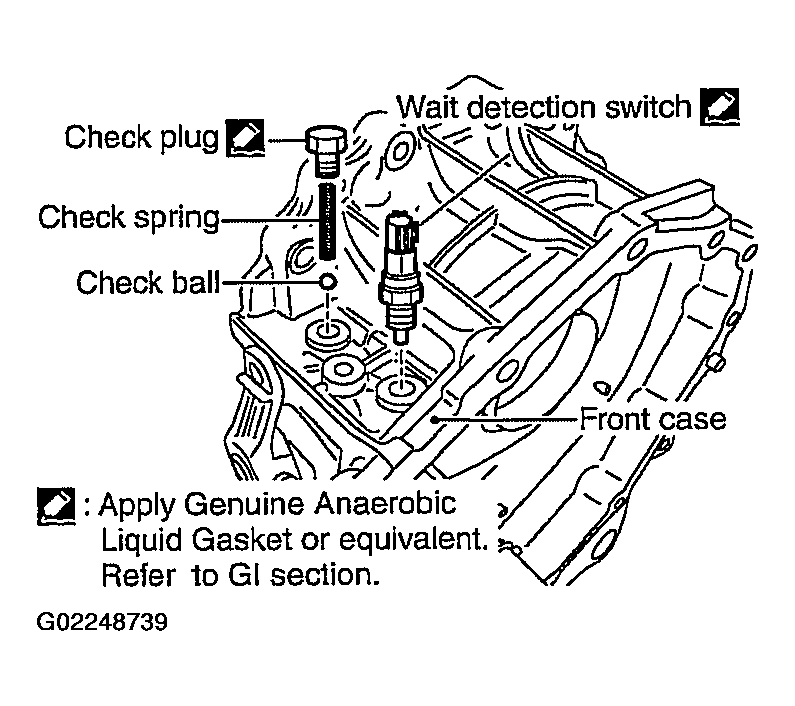

    Fig 1: Removing Wait Detection Switch
    G02248739Courtesy of NISSAN MOTOR CO., U.S.A.
    1. Remove wait detection switch.
  2. Remove shift rod components together with 2-4 sleeve and L-H sleeve.

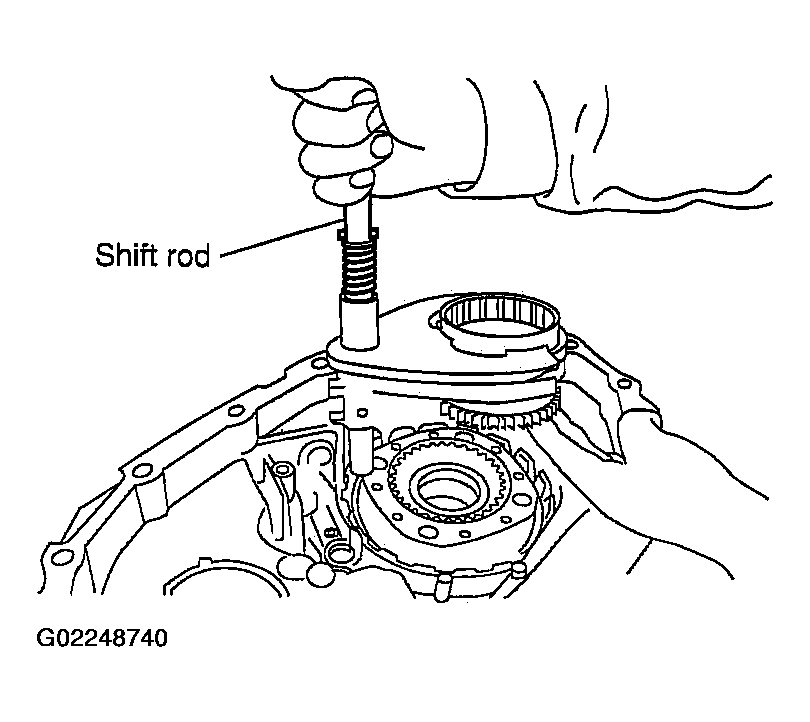

    Fig 2: Removing Shift Rod Components
    G02248740Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the shift cross from the front case.
  4. Remove 2-4 sleeve and L-H sleeve from 2-4 fork and L-H fork respectively.
    Fig 3: Removing Shift Cross From Front Case
    G02248741Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Drive out retaining pin from shift rod, using suitable pin punch.
    Fig 4: Driving Out Retaining Pin From Shift Rod
    G02248742Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove L-H fork, 2-4 fork, shift fork spring and fork guide from shift rod.

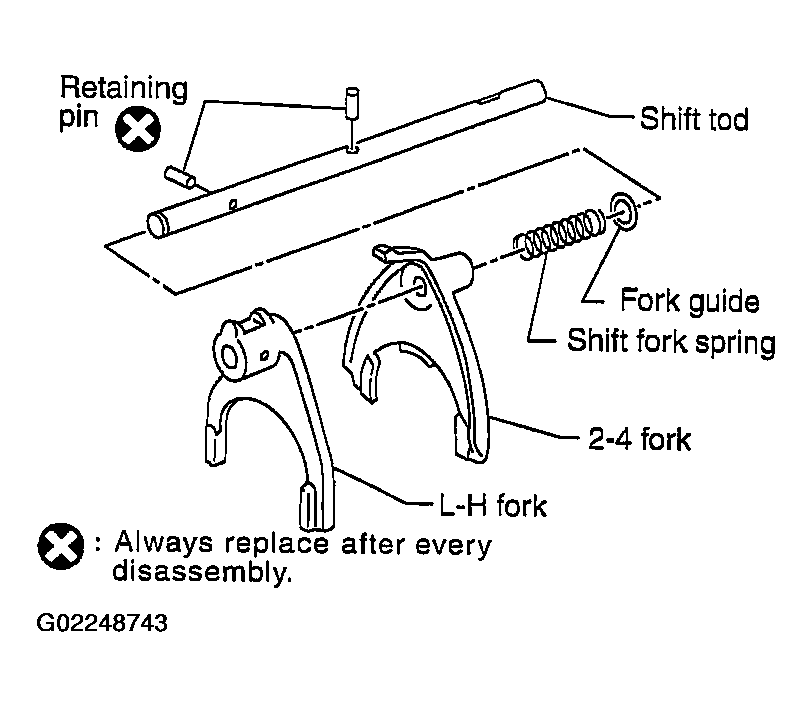

    Fig 5: Removing L-H Fork, 2-4 Fork, Shift Fork Spring And Fork Guide From Shift Rod
    G02248743Courtesy of NISSAN MOTOR CO., U.S.A.
