Operation Condition

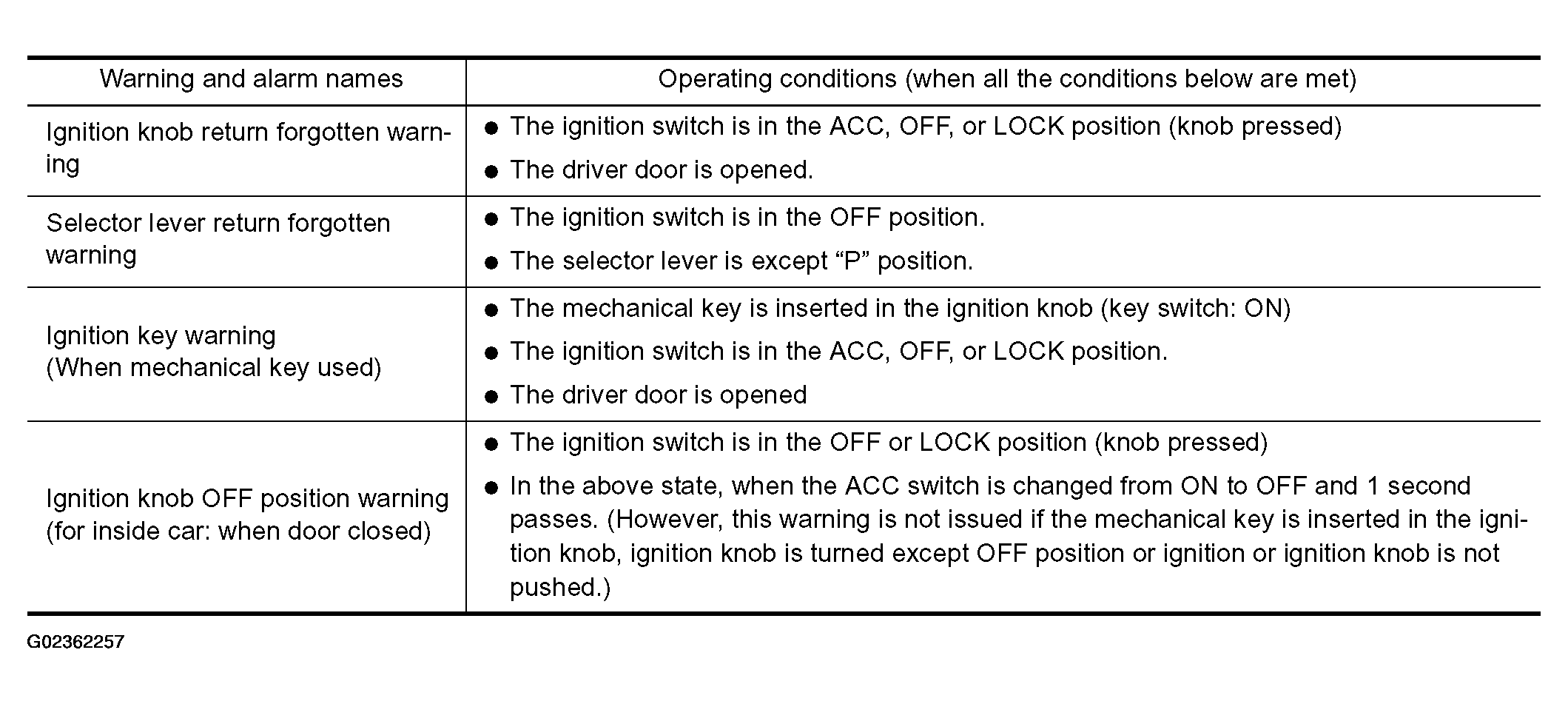

Fig 1: Warning And Alarm Operation Condition Chart (1 Of 2)
G02362257Courtesy of NISSAN MOTOR CO., U.S.A.

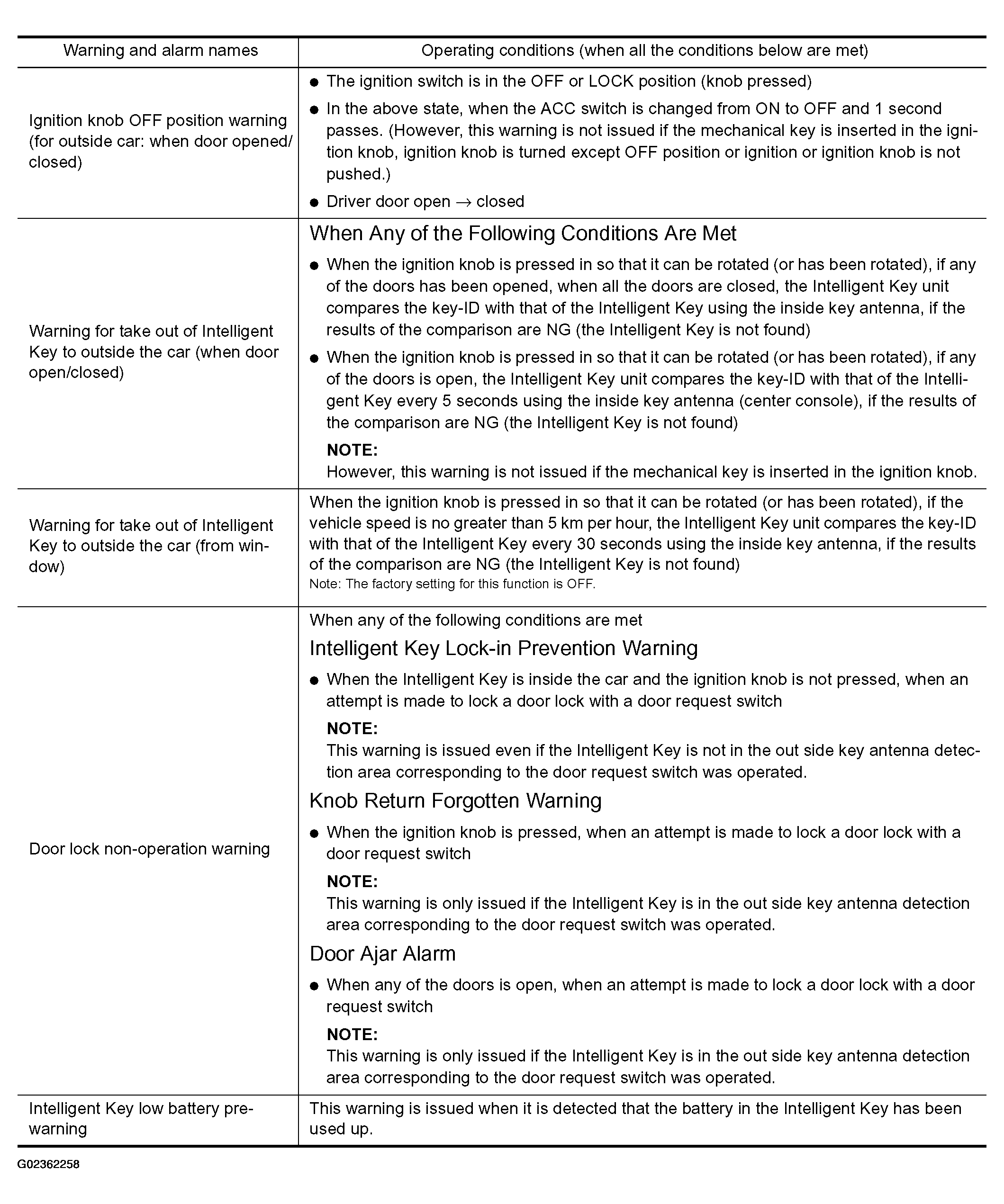

Fig 2: Warning And Alarm Operation Condition Chart (2 Of 2)
G02362258Courtesy of NISSAN MOTOR CO., U.S.A.
