Infiniti
>>
2005
>>
FX45
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control System - VK45DE
>>
DTC P0171, P0174: Fuel Injection System Function
>>
Wiring Diagram
>>
Bank 1
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Bank 1

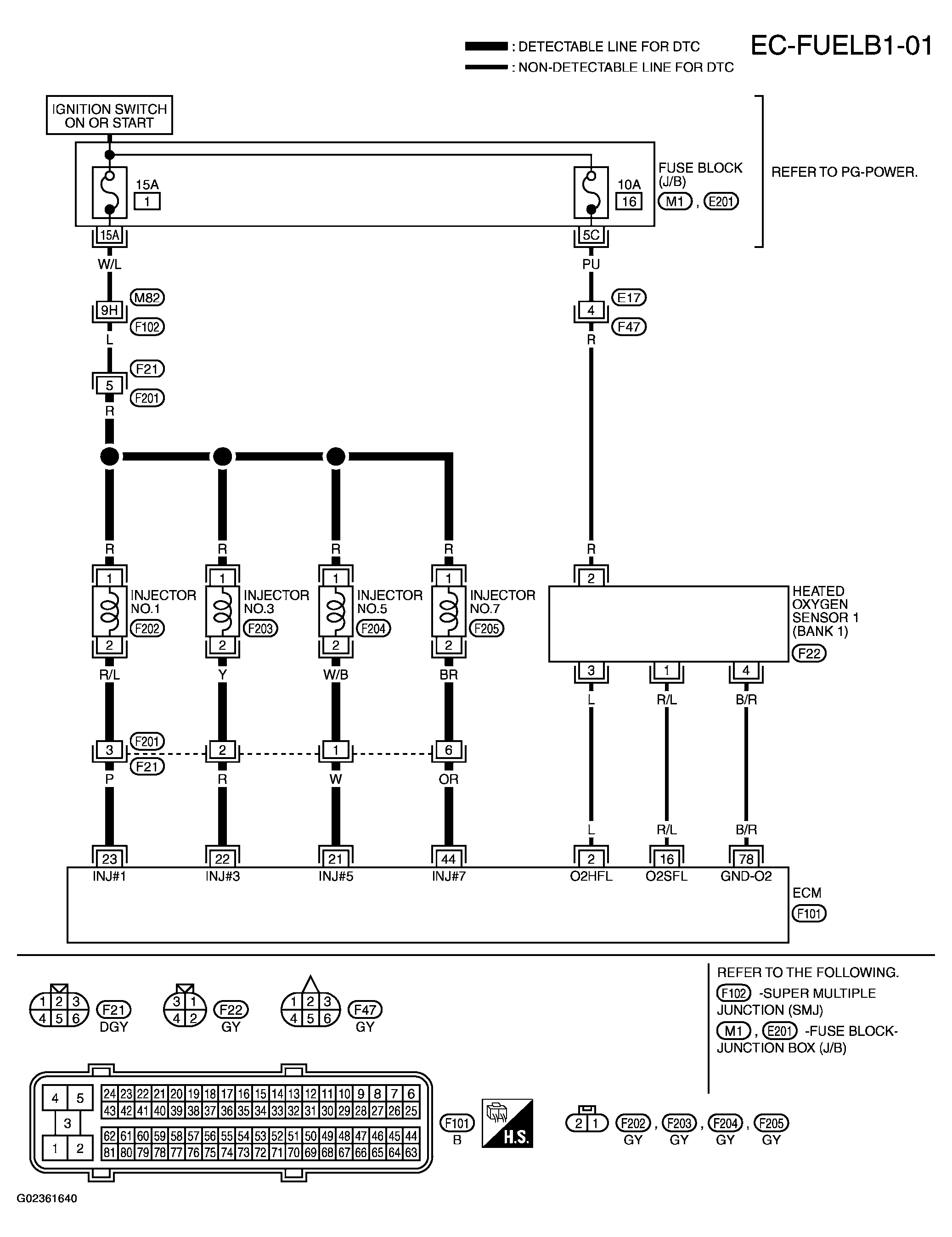

Fig 1: Wiring Diagram EC-FUELB1-01
Courtesy of NISSAN MOTOR CO., U.S.A.
