Clutch And Band Chart

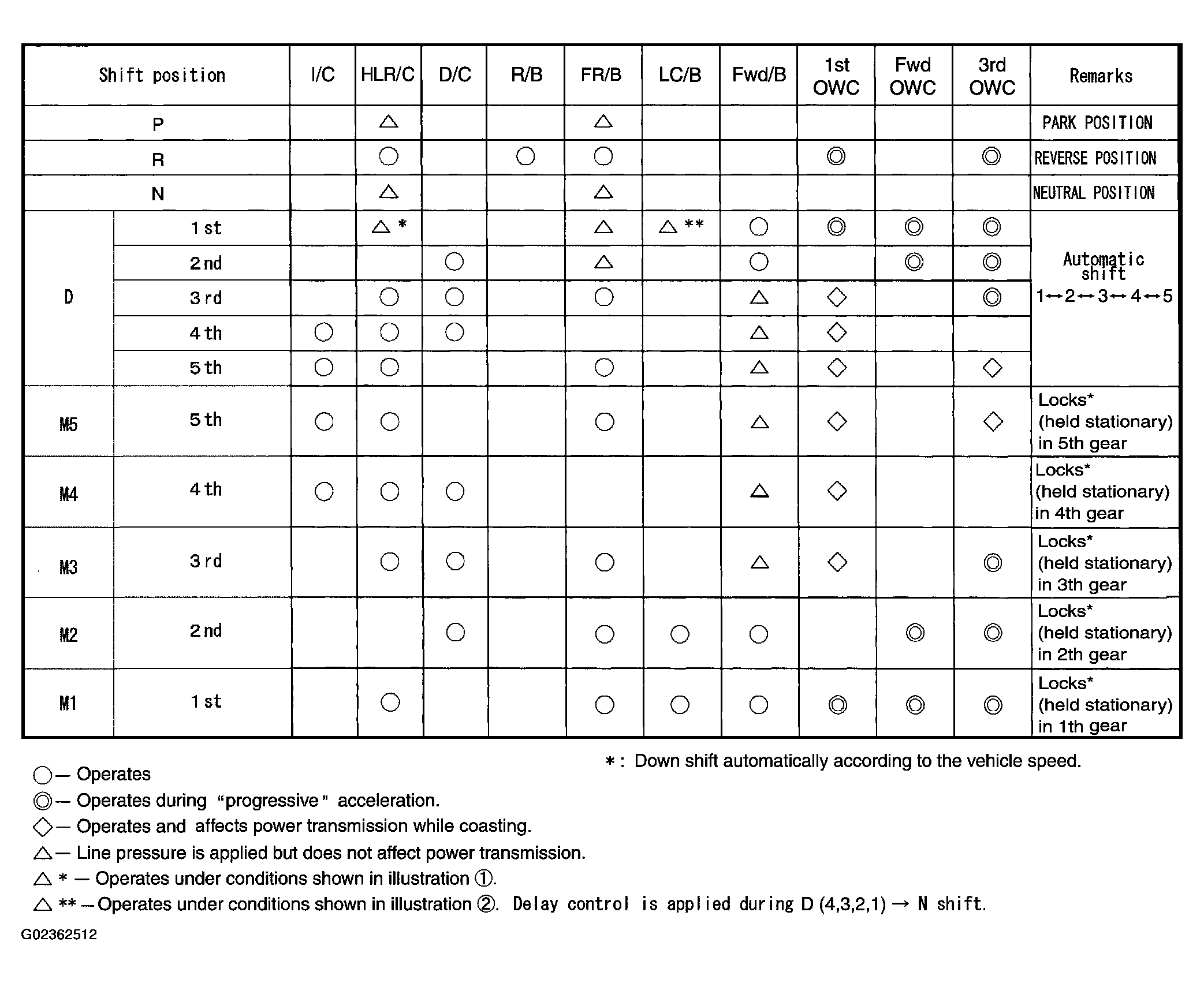

Fig 1: Clutch And Band Chart
G02362512Courtesy of NISSAN MOTOR CO., U.S.A.

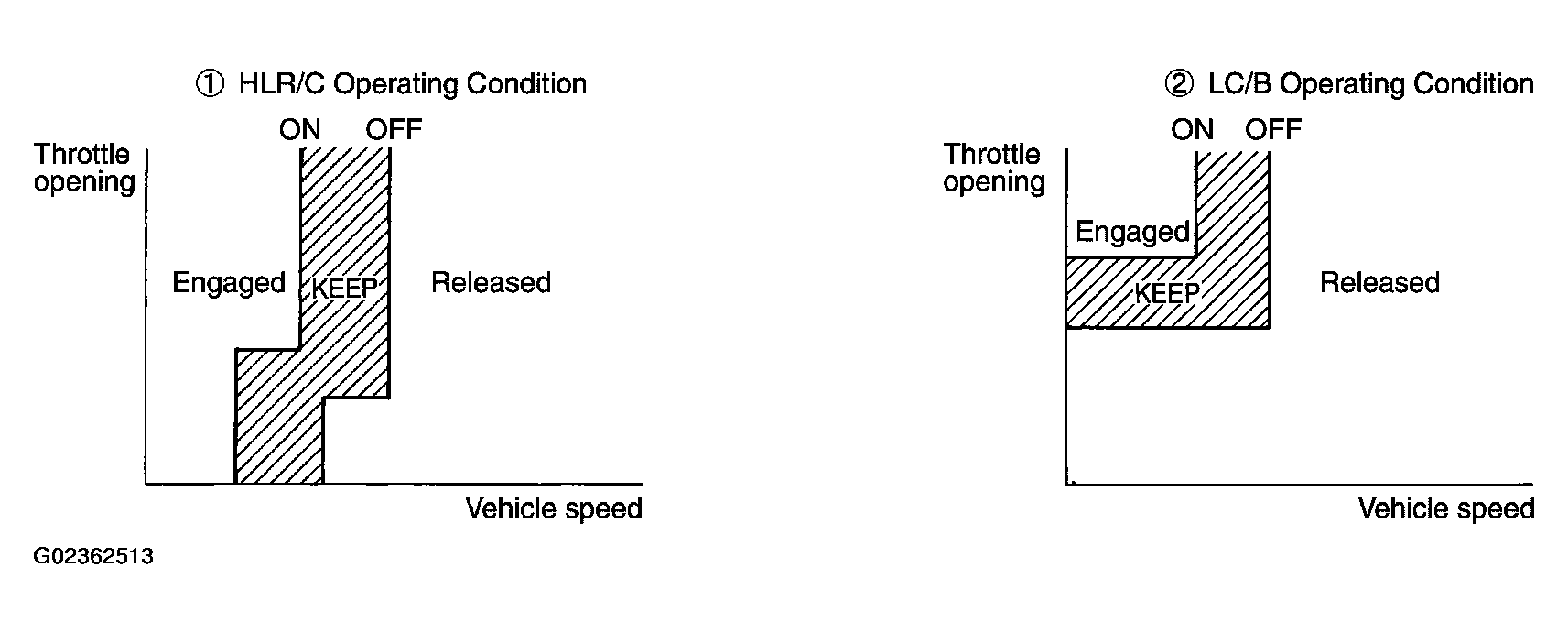

Fig 2: Identifying Operation Condition
G02362513Courtesy of NISSAN MOTOR CO., U.S.A.
