Automatic Transmission: Overhaul: Components

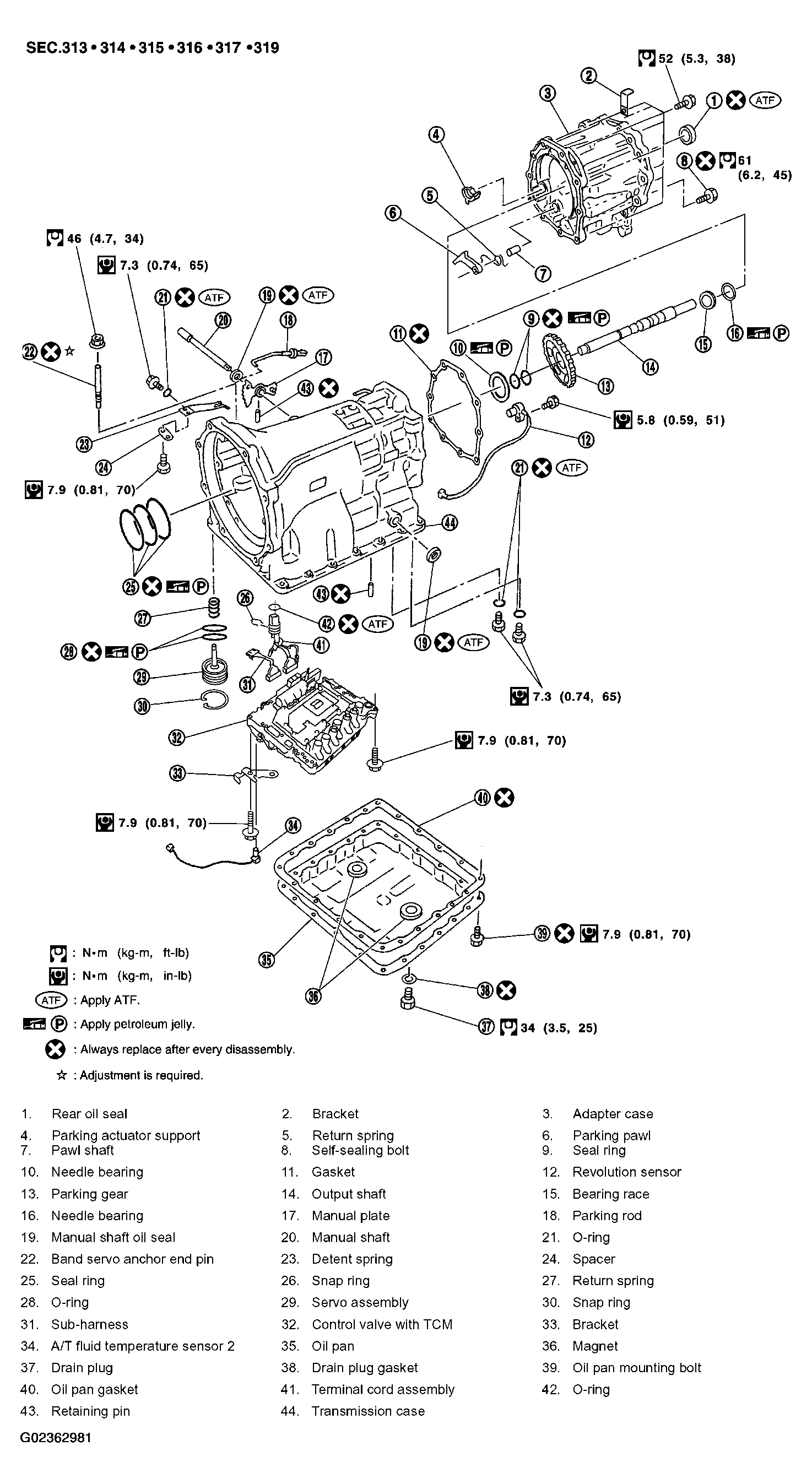

Fig 1: Exploded View Of Overhaul Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

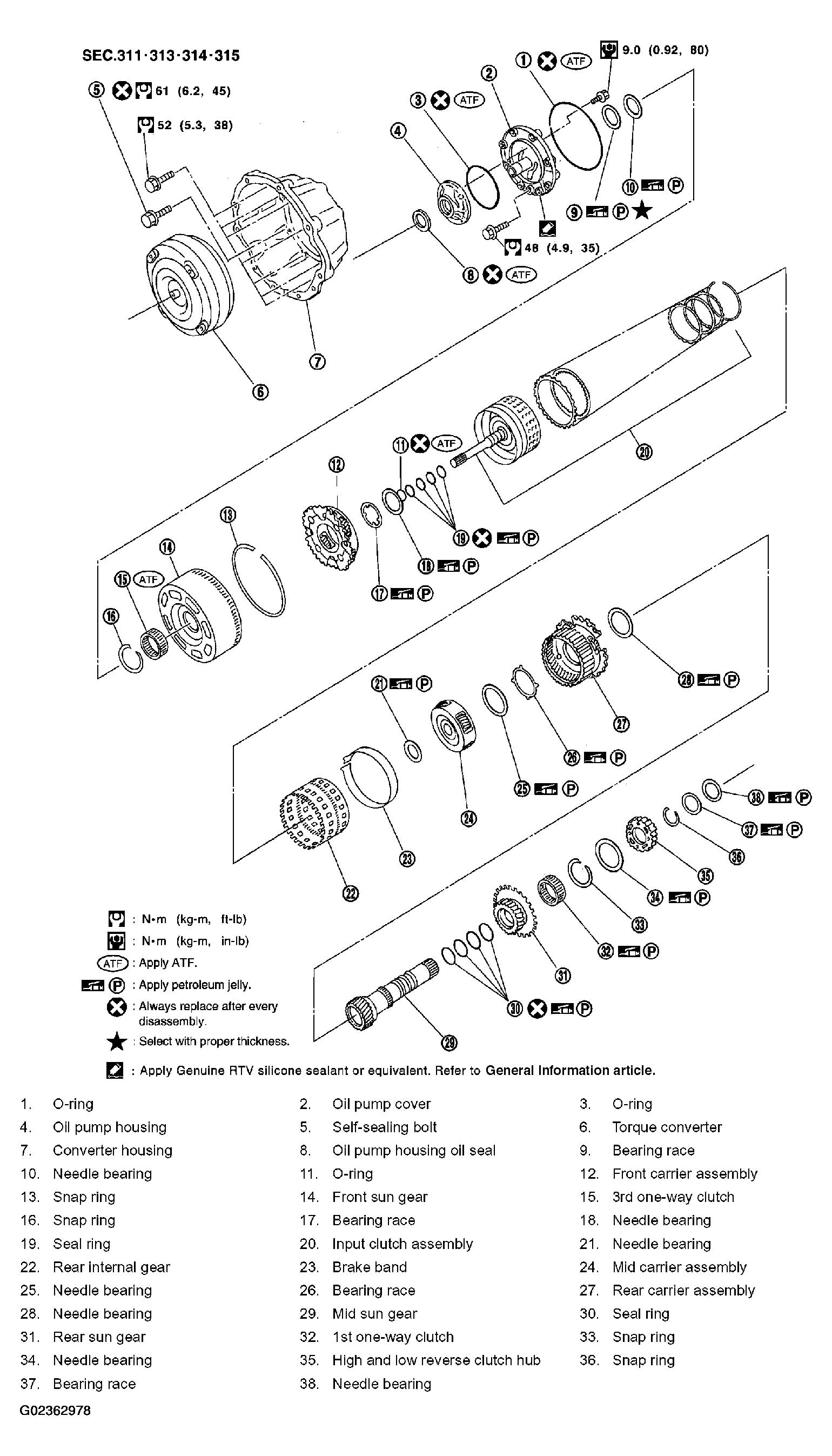

Fig 2: Exploded View Of Overhaul Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

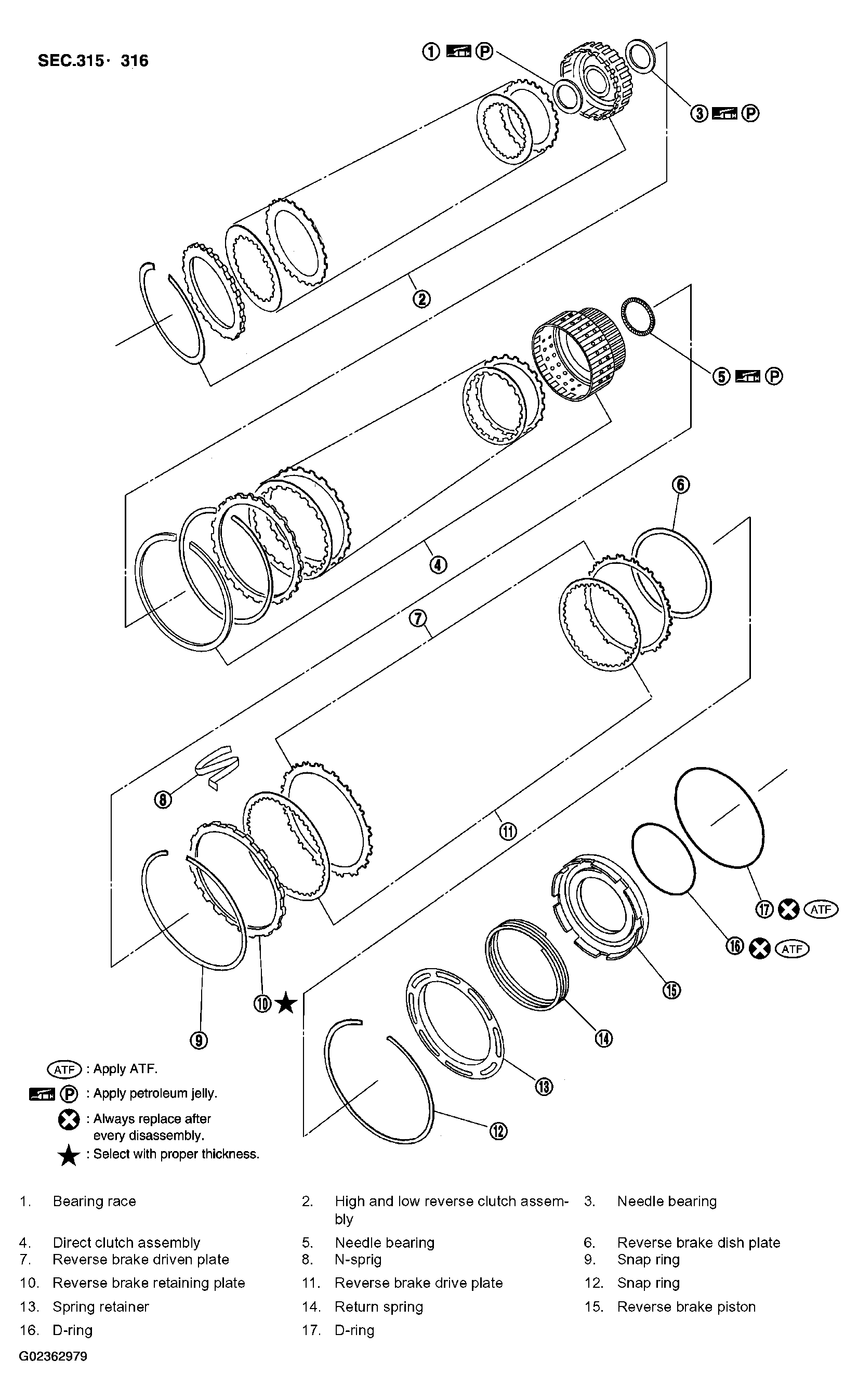

Fig 3: Exploded View Of Overhaul Components With Torque Specifications - 2ED Model

Courtesy of NISSAN MOTOR CO., U.S.A.

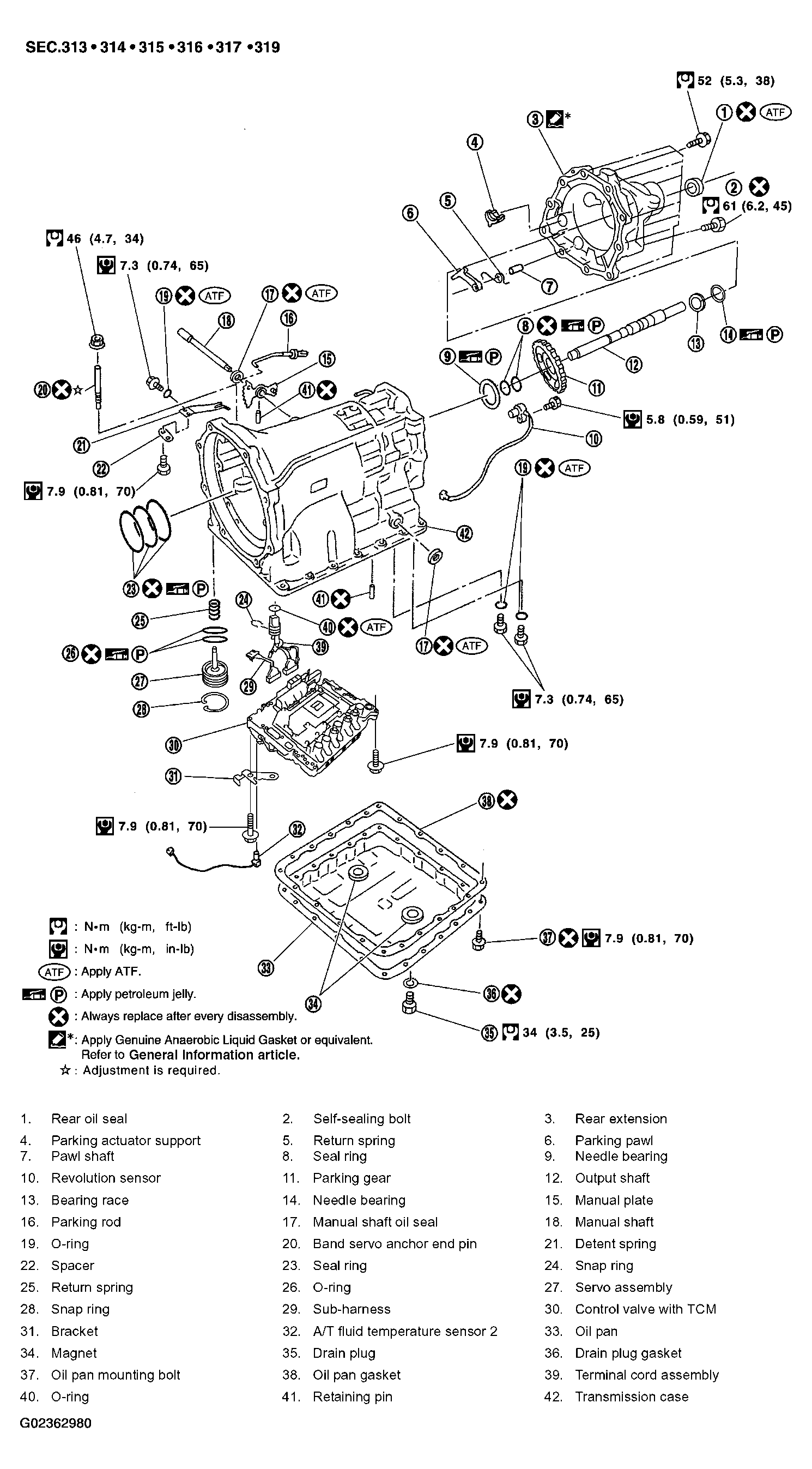

Fig 4: Exploded View Of Overhaul Components With Torque Specifications - AWD Model

Courtesy of NISSAN MOTOR CO., U.S.A.
