Input/Output Signal Chart: Notes

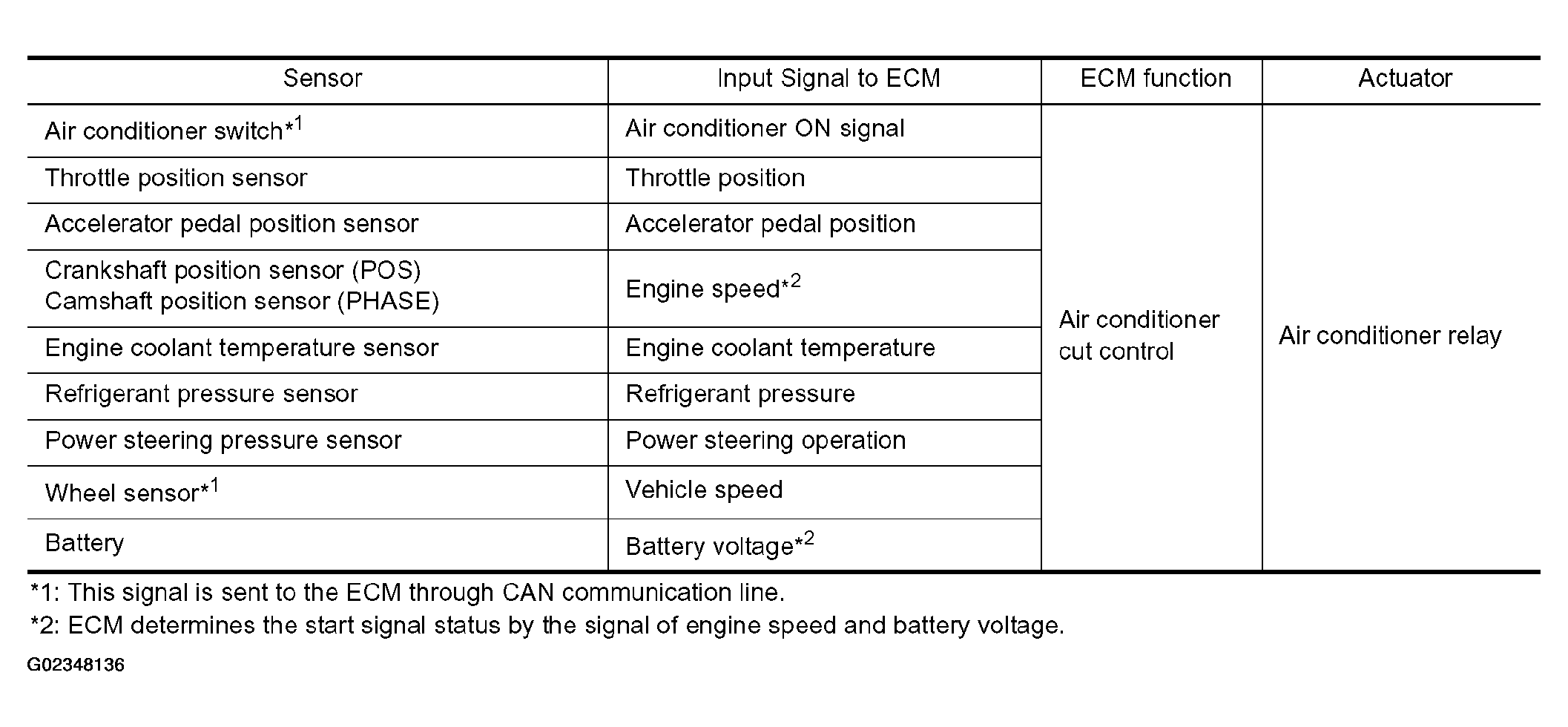

Fig 1: Air Conditioning Cut Control - Input/Output Signal Chart
G02348136Courtesy of NISSAN MOTOR CO., U.S.A.
