Setting Of Vehicle Status: Notes

Setting of electric status can be changed by multifunction switch. The signal is sent to BCM through AV and NAVI control unit to change vehicle electric system setting.
AV and NAVI control unit is communicating with BCM and combination meter.

Press "SETTING" switch to display vehicle information display.

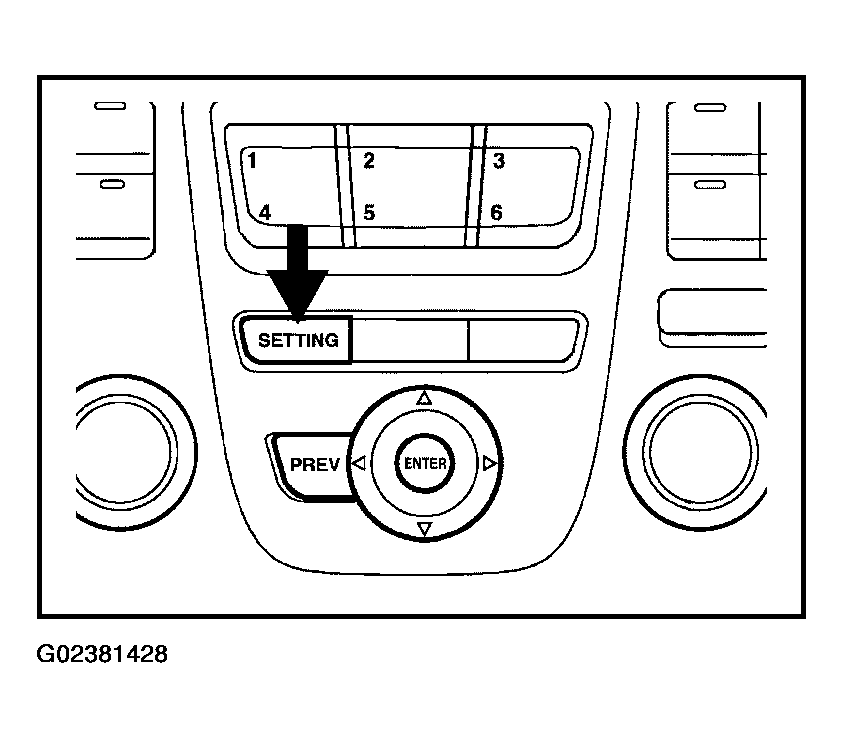

Fig 1: Identifying Setting Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Vehicle Electronic Systems".

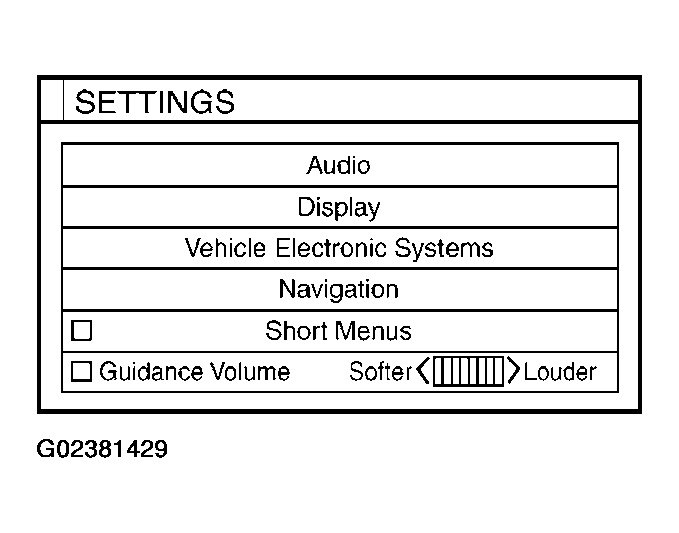

Fig 2: Displaying Vehicle Electronic
Courtesy of NISSAN MOTOR CO., U.S.A.
Select a vehicle status shown on the display.
Adjustable vehicle status
- Language/Unit
- Lift Steering Column When Exiting Vehicle
- Adjust Driver Seat When Exiting Vehicle
- Illuminate Interior When Unlocking Vehicle

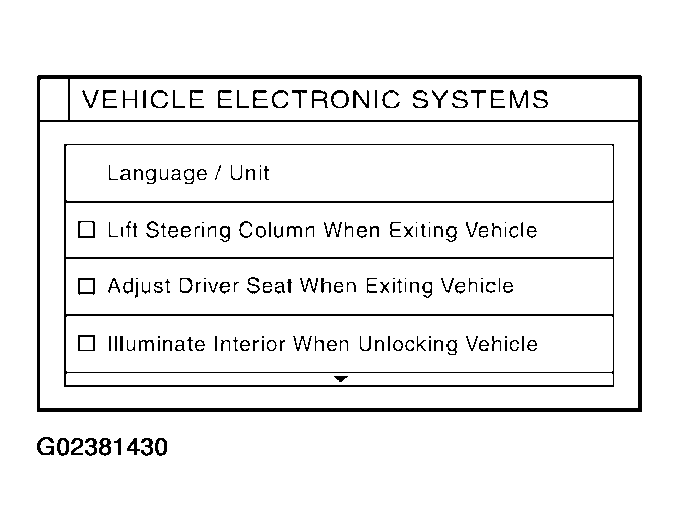

  Fig 3: Displaying Vehicle Electronic System
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Interior Lights Off Delay
- Sensitivity of Automatic Headlights
- Automatic Headlights Off Delay
- Keyless Remote Response-Horn/Lights

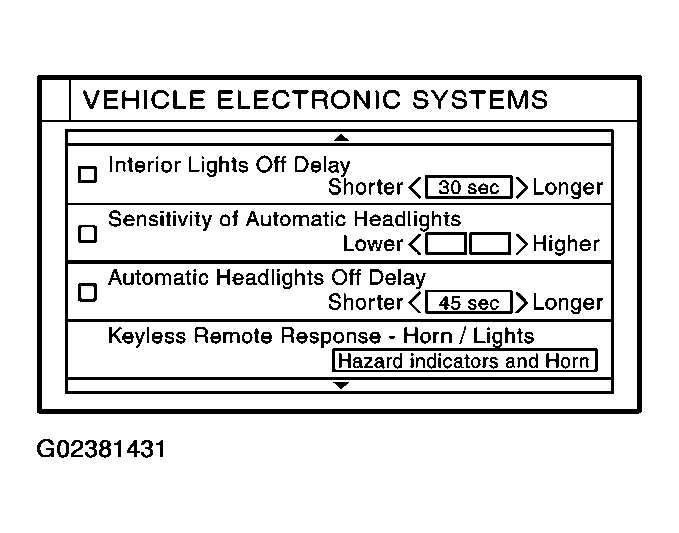

  Fig 4: Displaying Vehicle Electronic System
  Courtesy of NISSAN MOTOR CO., U.S.A.
- Remote Custom Settings
- Rain-Sensing Auto Wipers
- Return All Setting to Default

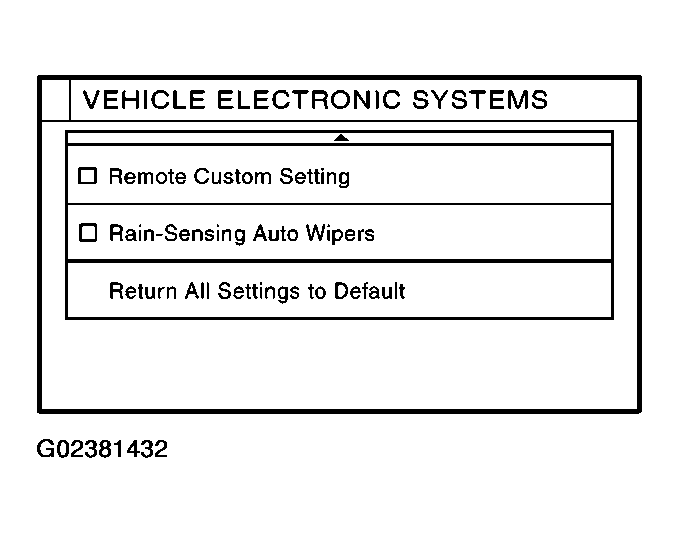

Fig 5: Displaying Vehicle Electronic System
Courtesy of NISSAN MOTOR CO., U.S.A.
