Vehicle Information System: Notes

AV and NAVI control unit is received vehicle information system of signals from combination meter.
AV and NAVI control unit is communicating with BCM and combination meter.

Press "INFO" switch to display vehicle information display.

Fig 1: Pressing Info Switch To Display Vehicle Information
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "Trip Computer", "Fuel Economy", "Maintenance" or "Tire pressure".

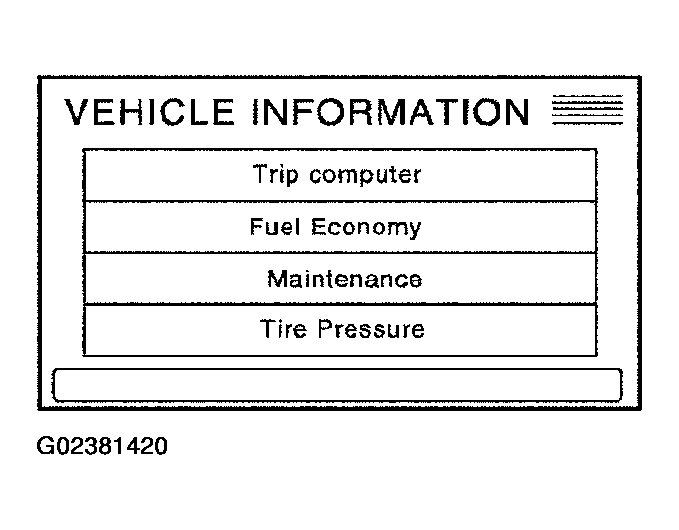

Fig 2: Displaying Vehicle Information
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Displaying Trip Computer Info
Courtesy of NISSAN MOTOR CO., U.S.A.
