CONSULT-II Function (ENGINE): Function

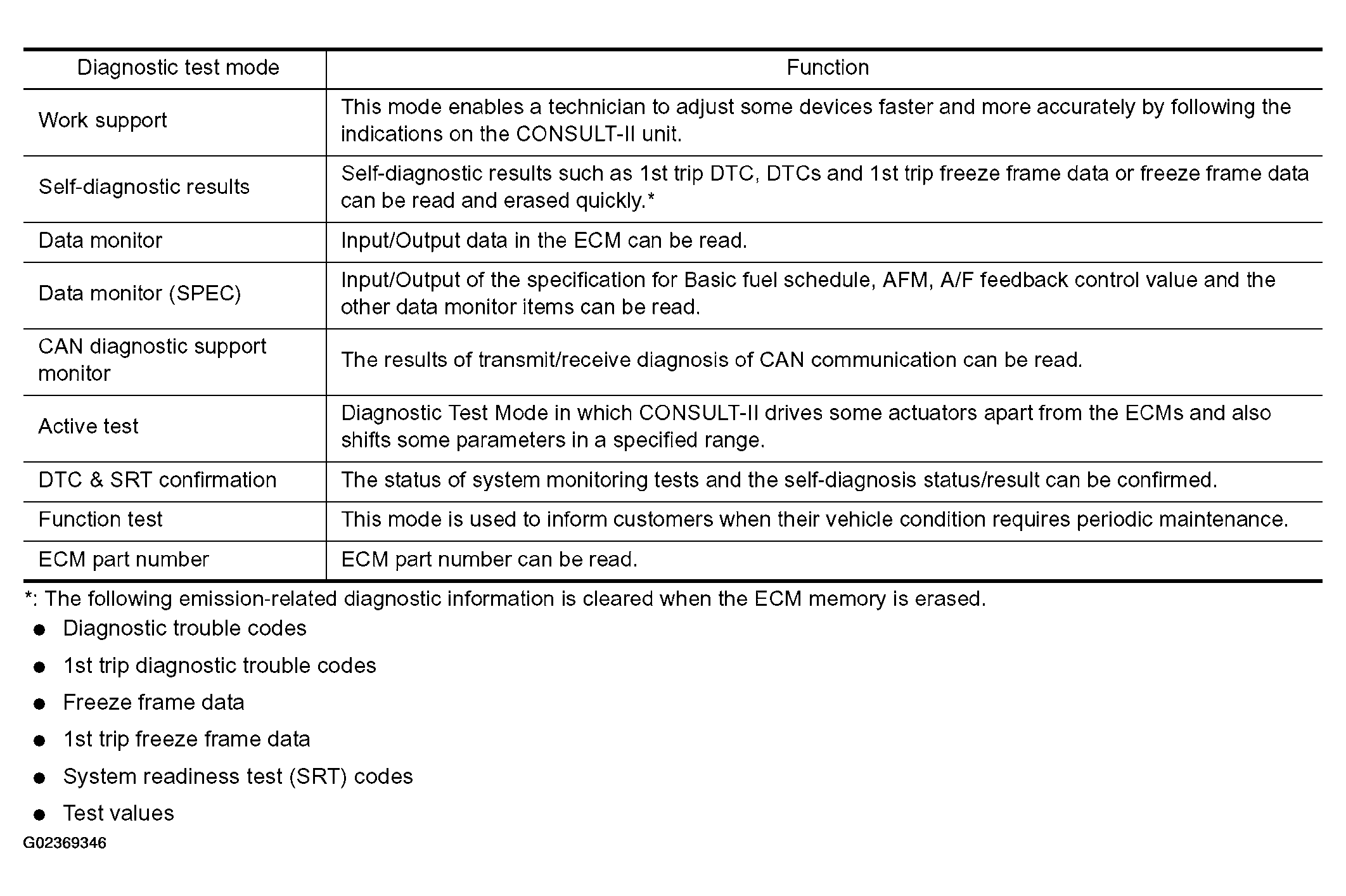

Fig 1: Consult-II Engine Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
