Component Description

The fuel pump with a fuel pressure regulator is an in-tank type (the pump and pressure regulator are located in the fuel tank).

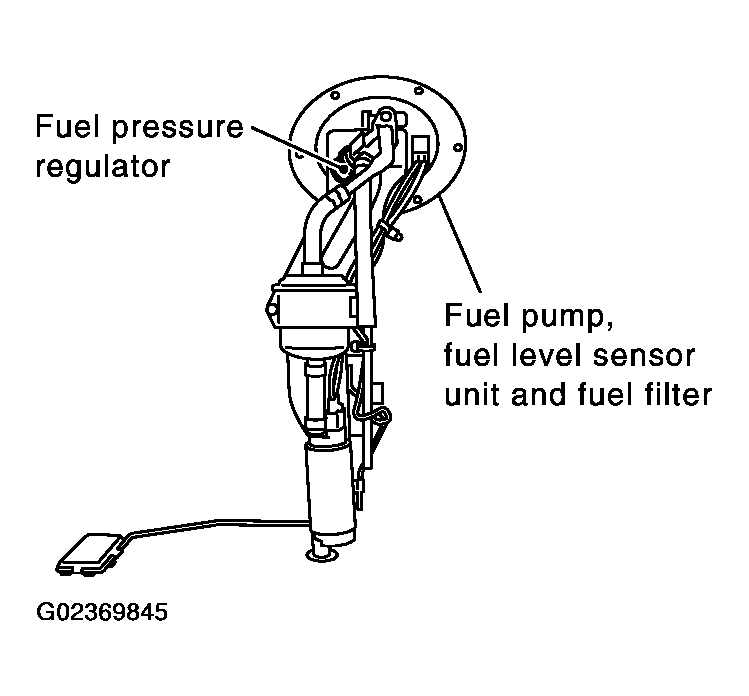

Fig 1: Identifying Fuel Pump With Fuel Pressure Regulator
G02369845Courtesy of NISSAN MOTOR CO., U.S.A.
