ICC Brake Hold Relay

  1. Apply 12V direct current between ICC brake hold relay terminals 1 and 2.
  2. Check continuity between relay terminals 3 and 4, 6 and 7 under the following conditions.

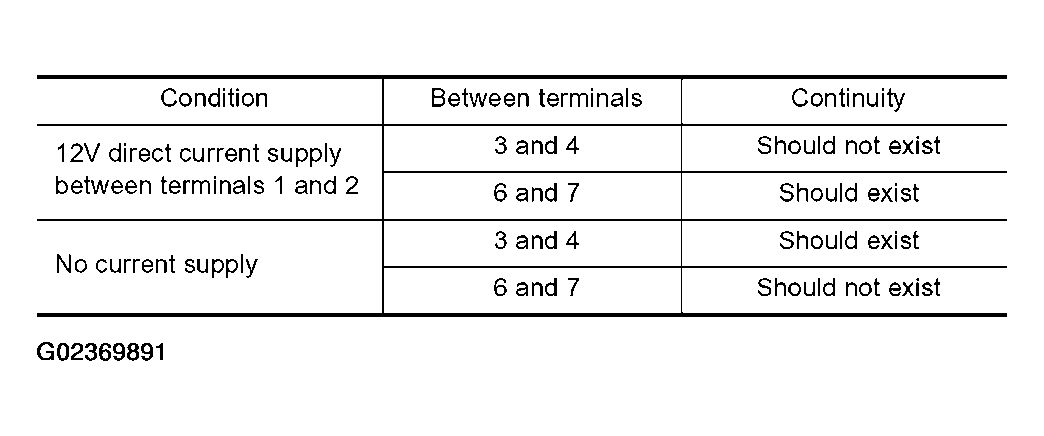

    Fig 1: ICC Brake Hold Relay Terminals Continuity Checking Conditions
    G02369891Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace ICC brake hold relay.

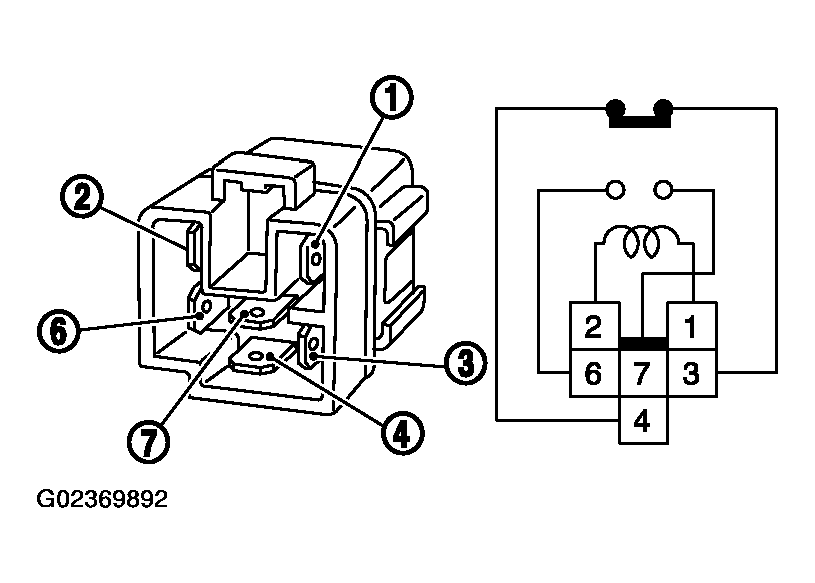

    Fig 2: Identifying ICC Brake Hold Relay Terminals And Circuit
    G02369892Courtesy of NISSAN MOTOR CO., U.S.A.
