Diagnostic Procedure

With CONSULT-II

1. Turn ignition switch ON. (Do not start engine.)
2. Select "SELF DIAG RESULTS" mode for "A/T" with CONSULT-II.
3. Touch "ERASE".
4. Turn ignition switch OFF and wait for at least 10 seconds.
5. Perform "DTC confirmation procedure". Refer to "DIAGNOSTIC PROCEDURE ".

Is the "TCM.RAM" displayed again?

1. YES: Replace the control valve with TCM. Refer to "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 ".
2. NO: INSPECTION END

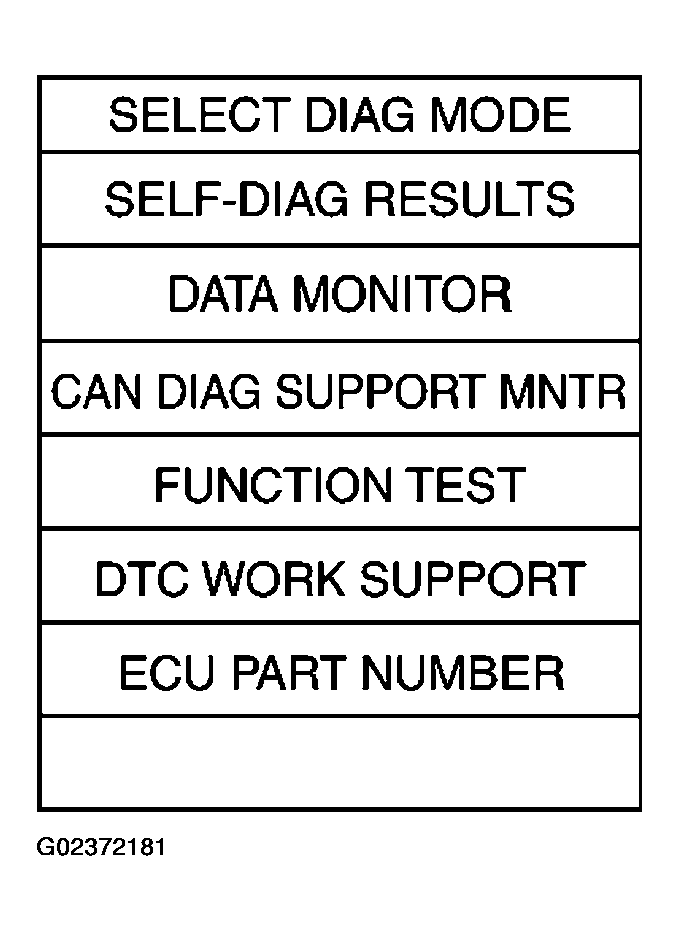

Fig 1: Display Select Diag Mode Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
