A/T Assembly Harness Connector Terminal Layout

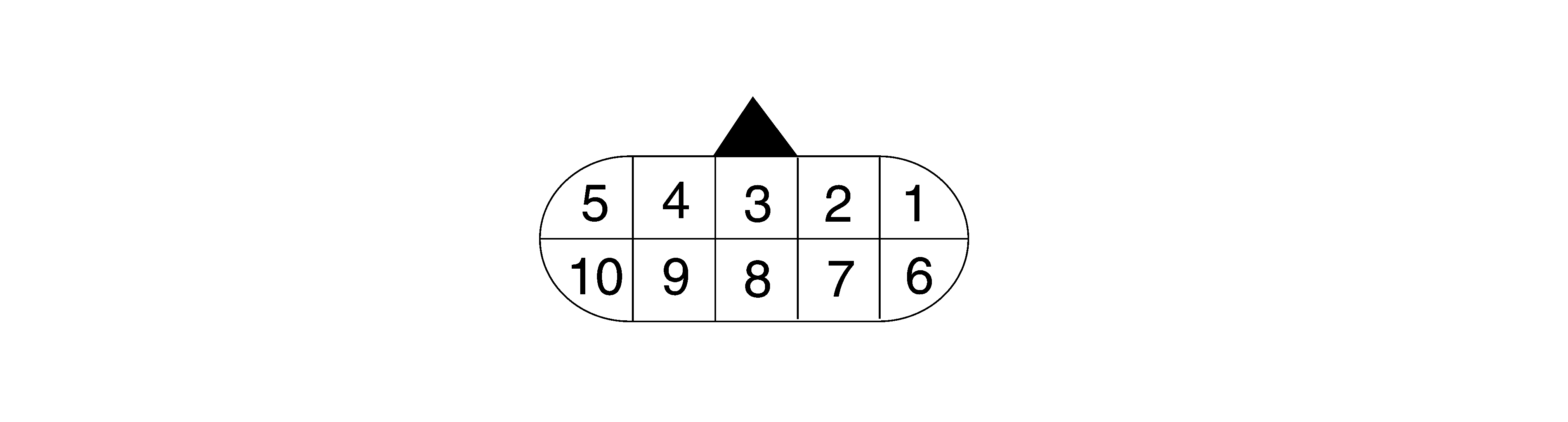

Fig 1: Identifying A/T Assembly Harness Connector Terminal Layout

Courtesy of NISSAN MOTOR CO., U.S.A.

TCM INSPECTION TABLE

Data are reference value and are measured between each terminal and ground.

Terminal	Wire color	Item	Condition		Data (Approx.)
1	LG	Power supply (Memory back-up)	Always		Battery voltage
2	LG	Power supply (Memory back-up)	Always		Battery voltage
3	L	CAN-H	-		-
4	PU	K-line (CONSULT-II signal)	The terminal is connected to the data link connector for CONSULT-II.		-
5	B	Ground	-		-
6	Y	Power supply		-	Battery voltage
				-	0 V
7	OR	Back-up lamp relay		Selector lever in "R" position.	0 V
				Selector lever in other positions.	Battery voltage
8	P	CAN-L	-		-
9	GY	Starter relay		Selector lever in "N" and "P" positions.	Battery voltage
				Selector lever in other positions.	0 V
10	B	Ground	-		-
