VK45DE Engine Models

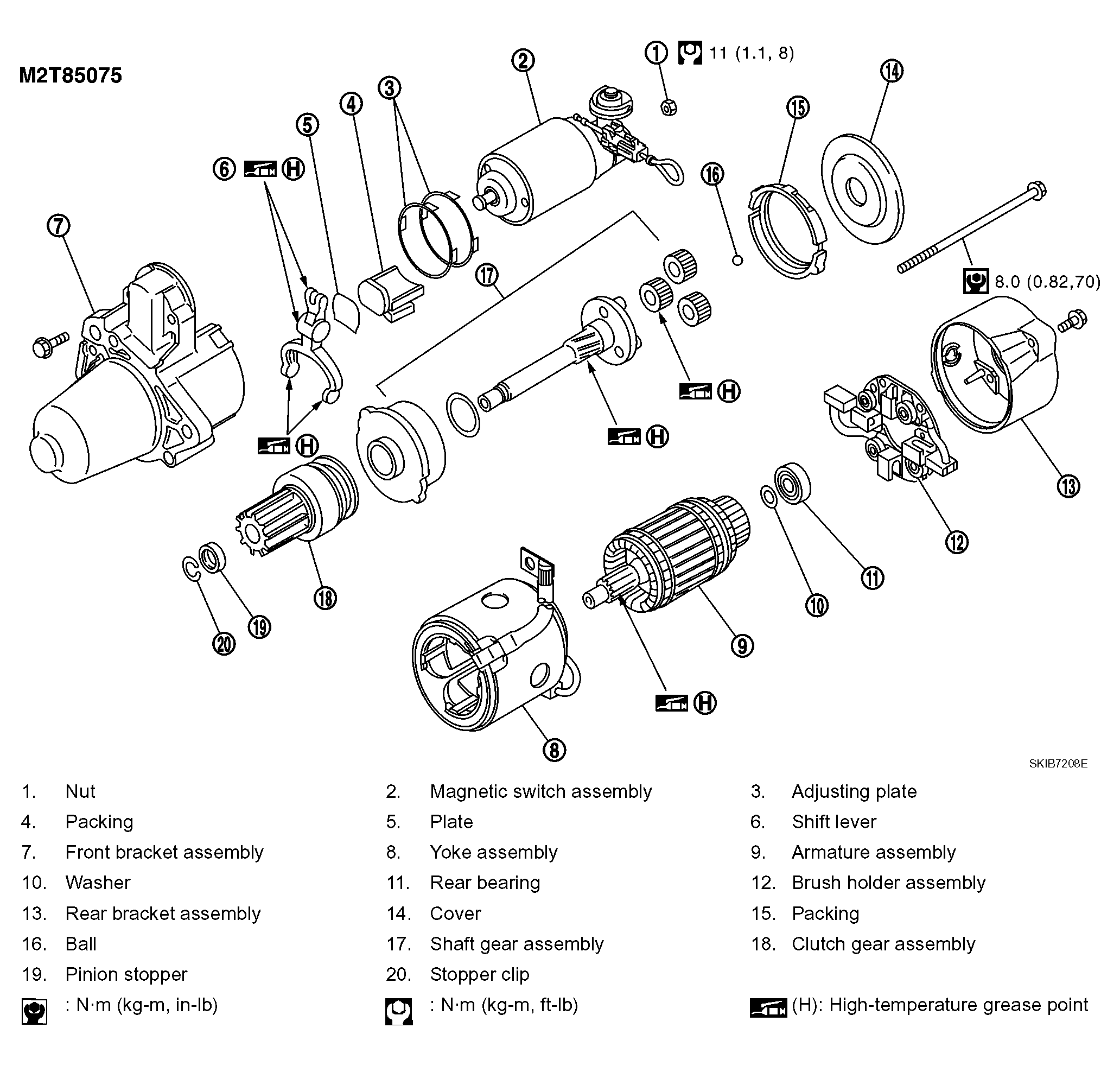

Fig 1: View Of Starter With Torque Specifications (VK45DE Engine Models)
G04078093Courtesy of NISSAN MOTOR CO., U.S.A.
