Center Console Assembly: Notes

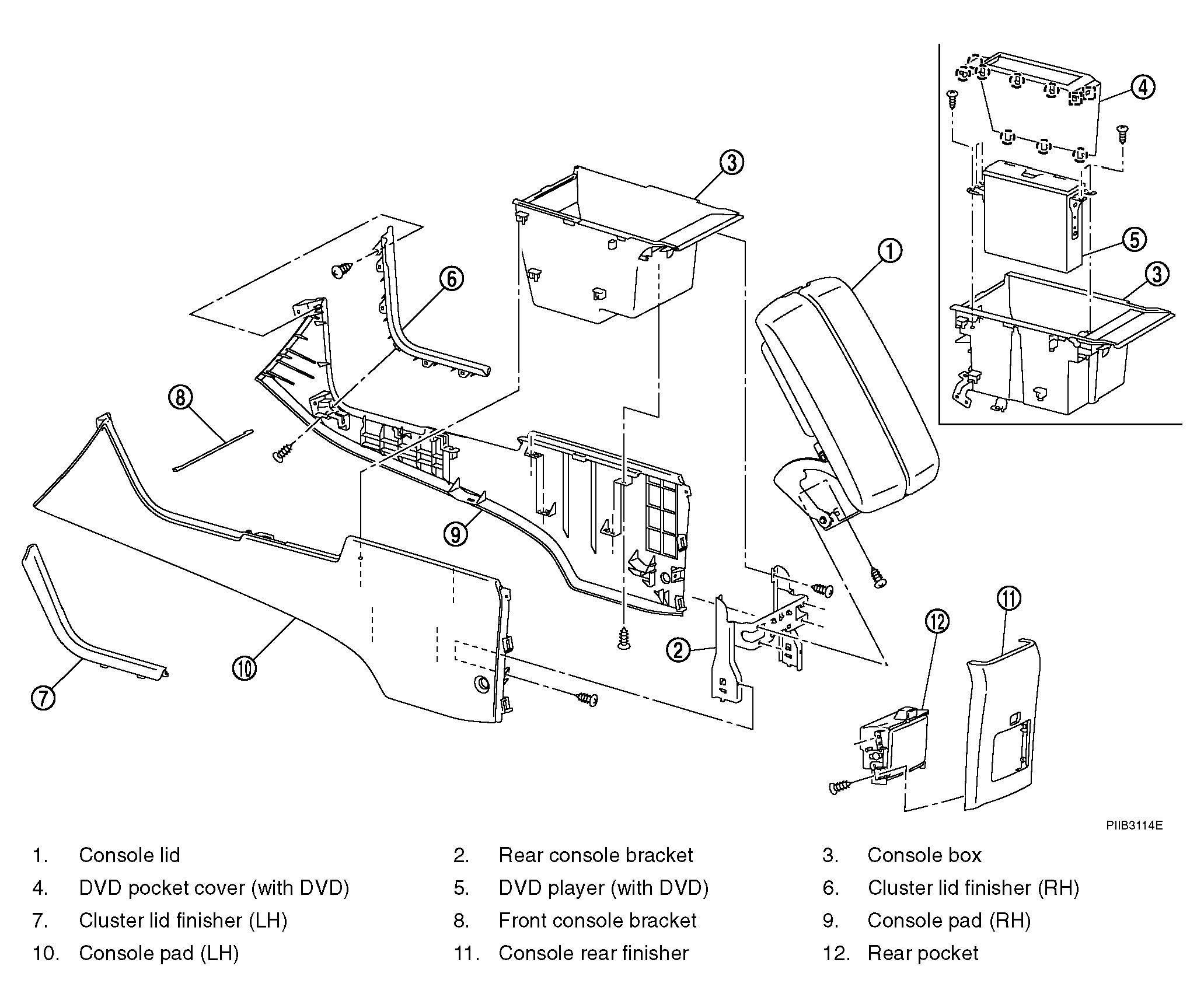

Fig 1: Identifying Center Console Assembly

G04145891

Courtesy of NISSAN MOTOR CO., U.S.A.
