Control Device Removal and Installation: Notes

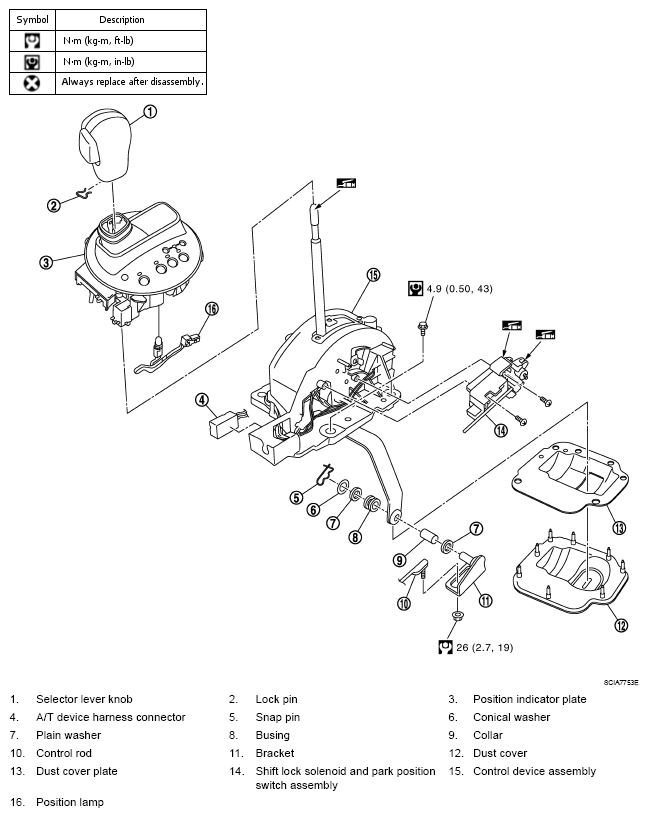

Fig 1: Control Device Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to GI information to make sure icons (symbol marks) in the figure. Refer to "COMPONENTS ".
