Relationship Between Mil, DTC, 1ST Trip DTC And Driving Patterns Except For"Misfire < Exhaust Quality Deterioration >", "Fuel Injection System"

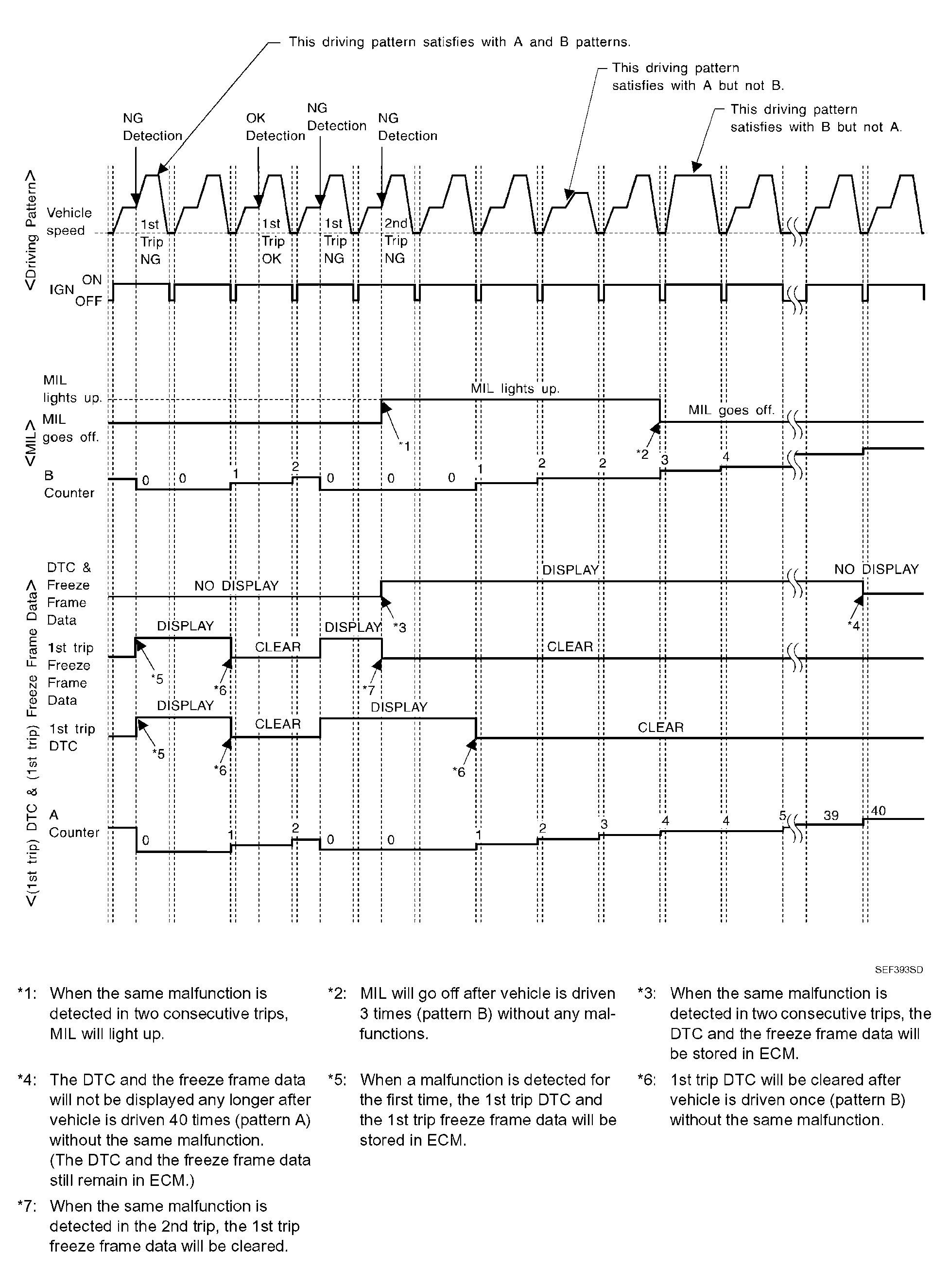

Fig 1: Malfunction Graph - Except Misfire (Exhaust Quality Deterioration) Fuel Injection System
G04179482Courtesy of NISSAN MOTOR CO., U.S.A.
