Front Suspension Assembly: Components

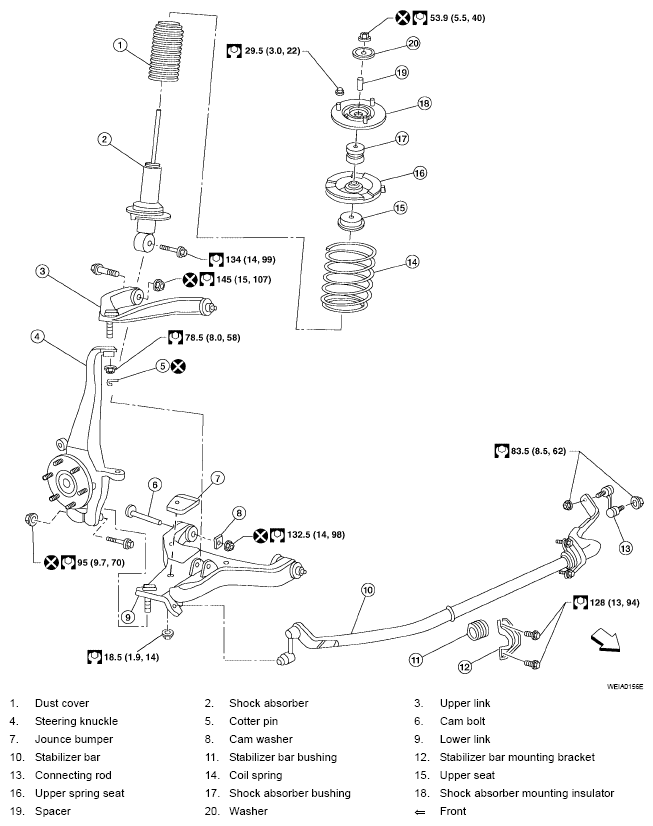

Fig 1: Identifying Front Suspension Assembly Components

G05230328
