Shift Lock Harness Connector Terminals Layout

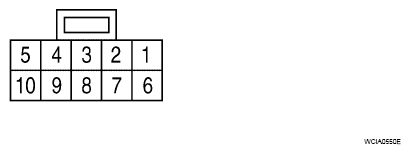

Fig 1: Identifying Shift Lock Harness Connector Terminals
G04901095
