Confirmation/Adjustment Mode
- Start the diagnosis function and select "Confirmation/Adjustment". The confirmation/adjustment mode indicates where each item can be checked or adjusted.
- Select each switch on the "Confirmation/Adjustment Mode" screen to display the relevant trouble diagnosis screen. Press the "RETURN" switch to return to the initial Confirmation/Adjustment Mode screen.
Display Diagnosis
The tint of the color bar indication is as per the following list if RGB signal error is detected.
R (red) signal error : Light blue (Cyan) tint
G (green) signal error : Purple (Magenta) tint
B (blue) signal error : Yellow tint
Vehicle Signals
A comparison check can be made of each actual vehicle signal and the signals recognized by the system.
| Diagnosis item | Display | Vehicle status | Remarks |
|---|---|---|---|
| Vehicle speed | ON | Vehicle speed > 0 km/h (0 MPH) | Changes in indication may be delayed. This is normal. |
| Vehicle speed = 0 km/h (0 MPH) | |||
| Parking brake | ON | Parking brake is applied. | |
| OFF | Parking brake is released. | ||
| Lights | ON | Light switch ON | - |
| OFF | Light switch OFF | ||
| Ignition | ON | Ignition switch ON | - |
| OFF | Ignition switch in ACC position | ||
| Reverse | ON | Shift the selector lever to "R" position | Changes in indication may be delayed. This is normal. |
| OFF | Shift the selector lever other than "R" position |
Speaker Test
Select "SPEAKER DIAGNOSIS" to display the Speaker Diagnosis screen. Press "START and NEXT" to generate a test tone in a speaker. Press "Start" to generate a test tone in the next speaker. Press "End" to stop the test tones.
Tweeter : 3 kHz
Front door speaker : 300 Hz
Rear door speaker : 1 kHz
Climate Control
Refer to "HEATER & AIR CONDITIONING CONTROL SYSTEM " for details.
Error History
The self-diagnosis results are judged depending on whether any error occurs from when "Self-diagnosis" is selected until the self-diagnosis results are displayed.
However, the diagnosis results are judged normal if an error has occurred before the ignition SW is turned ON and then no error has occurred until the self-diagnosis start. Check the "Error Record" to detect any error that may have occurred before the self-diagnosis start because of this situation.
Count up method A
- The counter resets to 0 if an error occurs when IGN switch is turned ON. The counter increases by 1 if the condition is normal at a next IGN ON cycle.
- The counter upper limit is 39. Any counts exceeding 39 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III.
Count up method B
- The counter increases by 1 if an error occurs when IGN switch is ON. The counter will not decrease even if the condition is normal at the next IGN ON cycle.
- The counter upper limit is 50. Any counts exceeding 50 are ignored. The counter can be reset (no error record display) with the "Delete log" switch or CONSULT-III.
| Display type of occurrence frequency | Error history display item |
|---|---|
| Count up method A | CAN communication line, control unit (CAN), AV communication line, control unit (AV communication) |
| Count up method B | Other than the above |
Error item
Some error items may be displayed simultaneously according to the cause. If some error items are displayed simultaneously, the detection of the cause can be performed by the combination of display items
| Error item | Description | Possible malfunction factor/Action to take |
|---|---|---|
| CAN COMM CIRCUIT | CAN communication malfunction is detected. | Perform diagnosis with CONSULT-III, and then repair the malfunctioning parts according to the diagnosis results. refer to "DIAGNOSIS PROCEDURE ". |
| CONTROL UNIT (CAN) | CAN initial diagnosis malfunction is detected. | Replace the AV control unit. |
| CONTROL UNIT (AV) | AV communication circuit initial diagnosis malfunction is detected. | |
| FLASH-ROM Error Of Control Unit | AV control unit malfunction is detected. | |
| CAN Controller Memory Error | ||
| Front Display Connection Error |
|
|
| SAT Connection Error |
|
|
|
|
|
|
|
|
|
|
|
|
Malfunction is detected in AV communication circuit between AV control unit and the branch point multifunction switch and AV control unit. | AV communication circuit between AV control unit and the branch point multifunction switch and AV control unit. |
Vehicle CAN Diagnosis
- CAN communication status and error counter is displayed.
- The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
- The error counter is erased if reset.
| Items | Display (Current) | Malfunction counter (Past) |
|---|---|---|
| Tx (HVAC) | OK / UNKWN | OK / 0 - 39 |
| Rx (ECM) | OK / UNKWN | OK / 0 - 39 |
| Rx (Cluster) | OK / UNKWN | OK / 0 - 39 |
| Rx (BCM) | OK / UNKWN | OK / 0 - 39 |
| Rx (HVAC) | OK / UNKWN | OK / 0 - 39 |
| Rx (USM) | OK / UNKWN | OK / 0 - 39 |
AV COMM Diagnosis
- Displays the communication status between AV control unit (master unit) and each unit.
- The error counter displays "OK" if any malfunction was not detected in the past and displays "0" if a malfunction is detected. It increases by 1 if the condition is normal at the next ignition switch ON cycle. The upper limit of the counter is 39.
- If it resets, the error counter is erased.
| Items | Status (Current) | Counter (Past) |
|---|---|---|
| C Tx(ITM-SW) | OK / UNKWN | OK / 0 - 39 |
| C Rx(PrimarySW-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(BTHF-ITM) | OK / UNKWN | OK / 0 - 39 |
| C Rx(iPod Adpt.-ITM) | OK / UNKWN | OK / 0 - 39 |
Delete Unit Connection Log
Deletes any unit connection records and error records from the AV control unit memory. (Clear the records of the unit that has been removed)
Initialize Settings

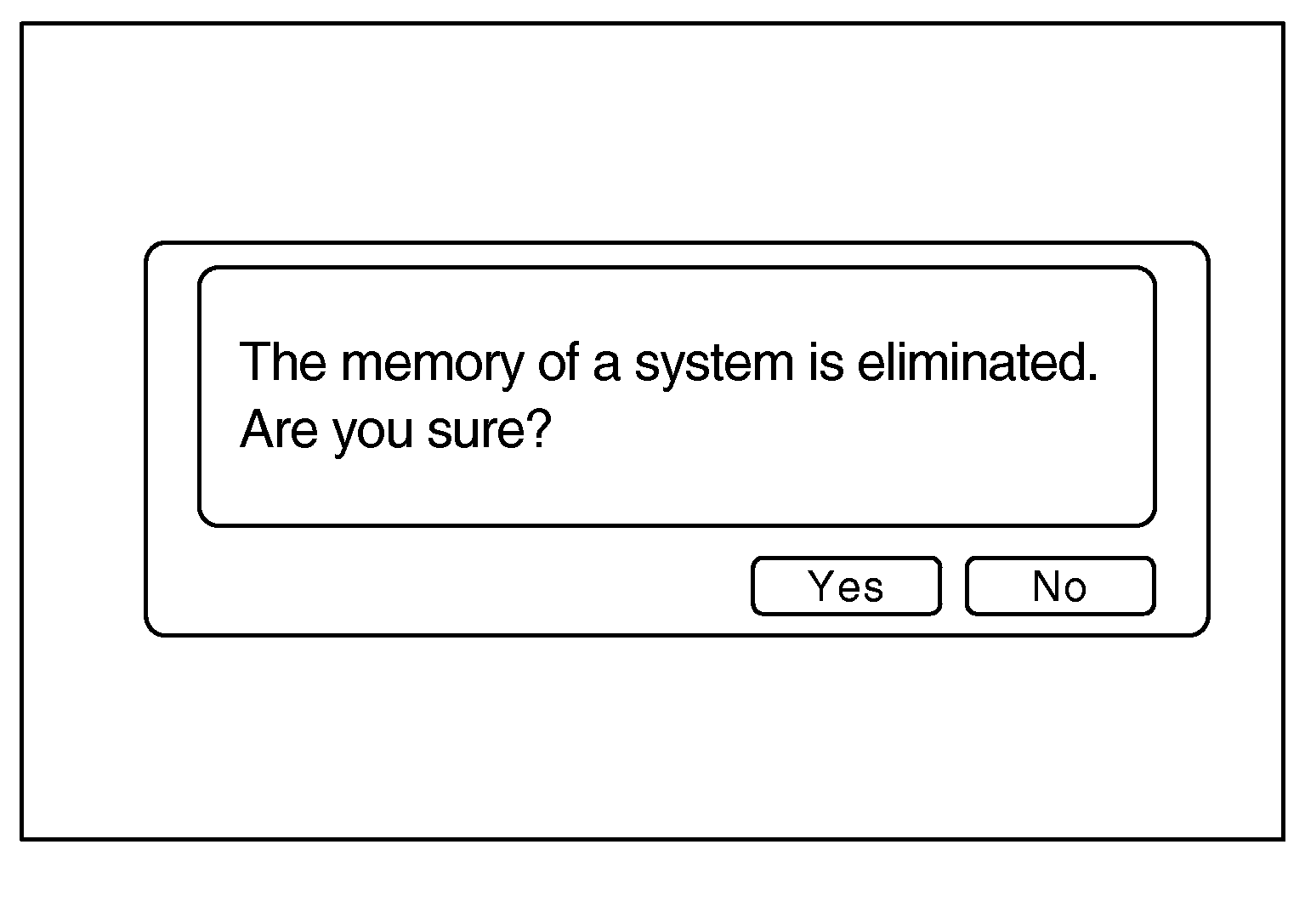

Initializes the AV control unit memory.
