2WD : Exploded View

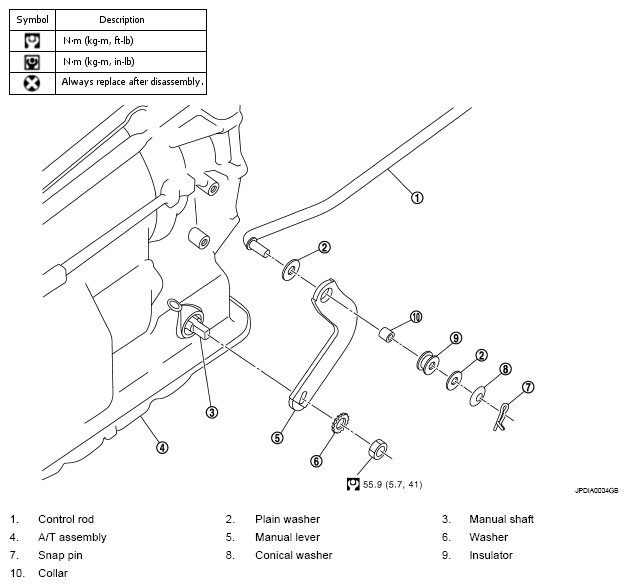

Fig 1: Exploded View Of Control Rod (2WD) With Torque Specifications
G05218598Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "COMPONENTS " for symbols in the figure.
