Component Parts Location

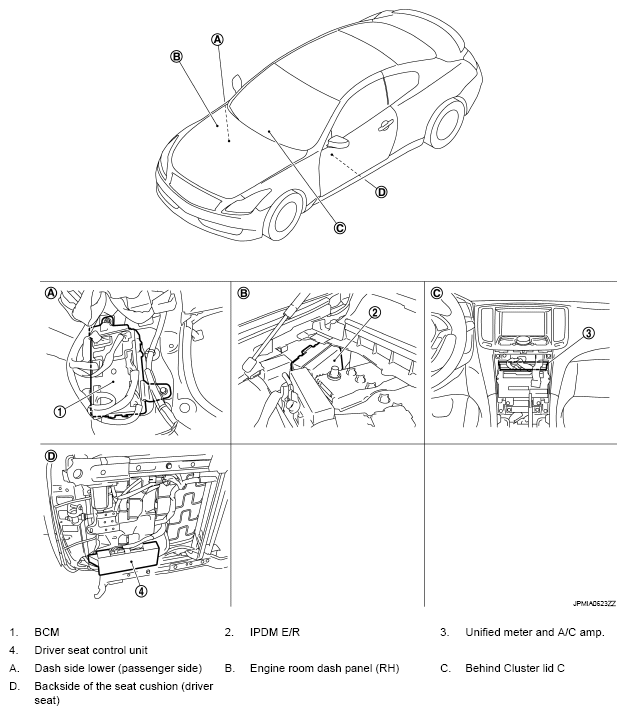

Fig 1: Identifying Power Consumption Control System Components Location
G05737516Courtesy of NISSAN MOTOR CO., U.S.A.
