Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

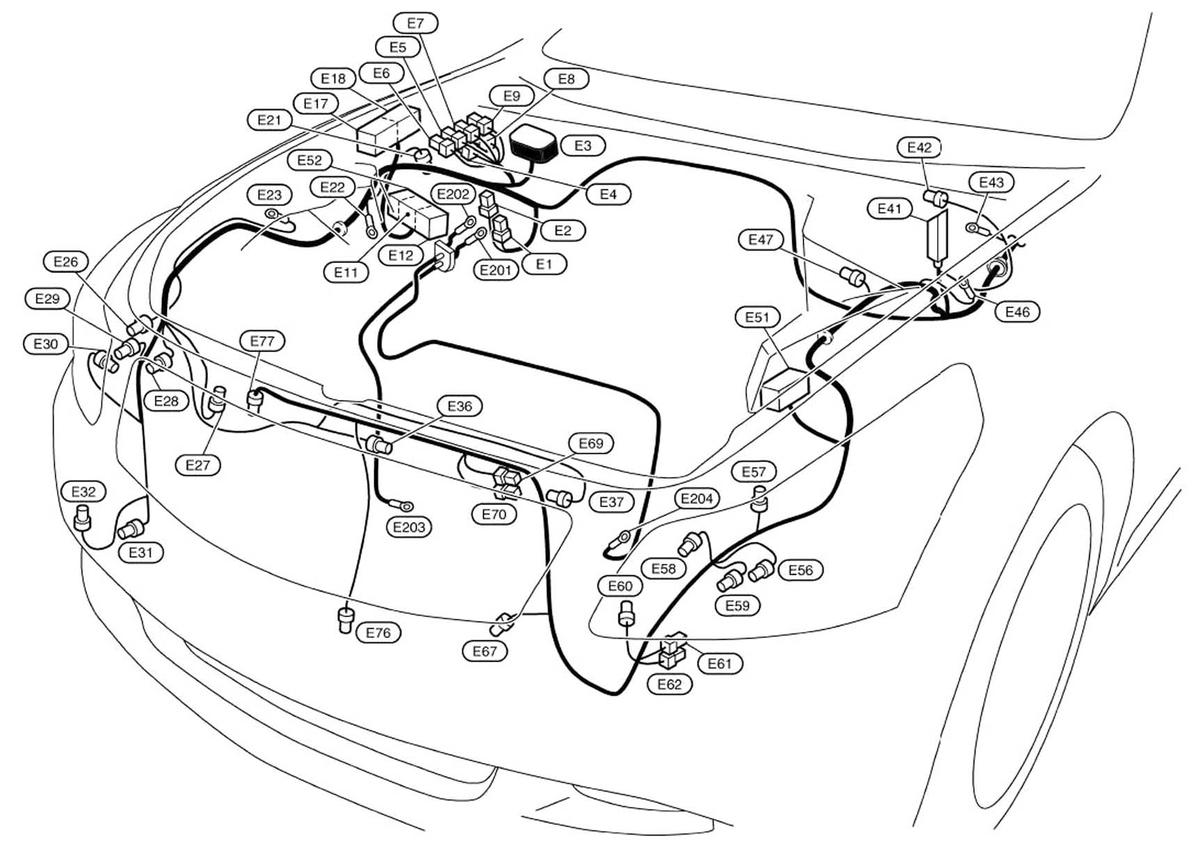

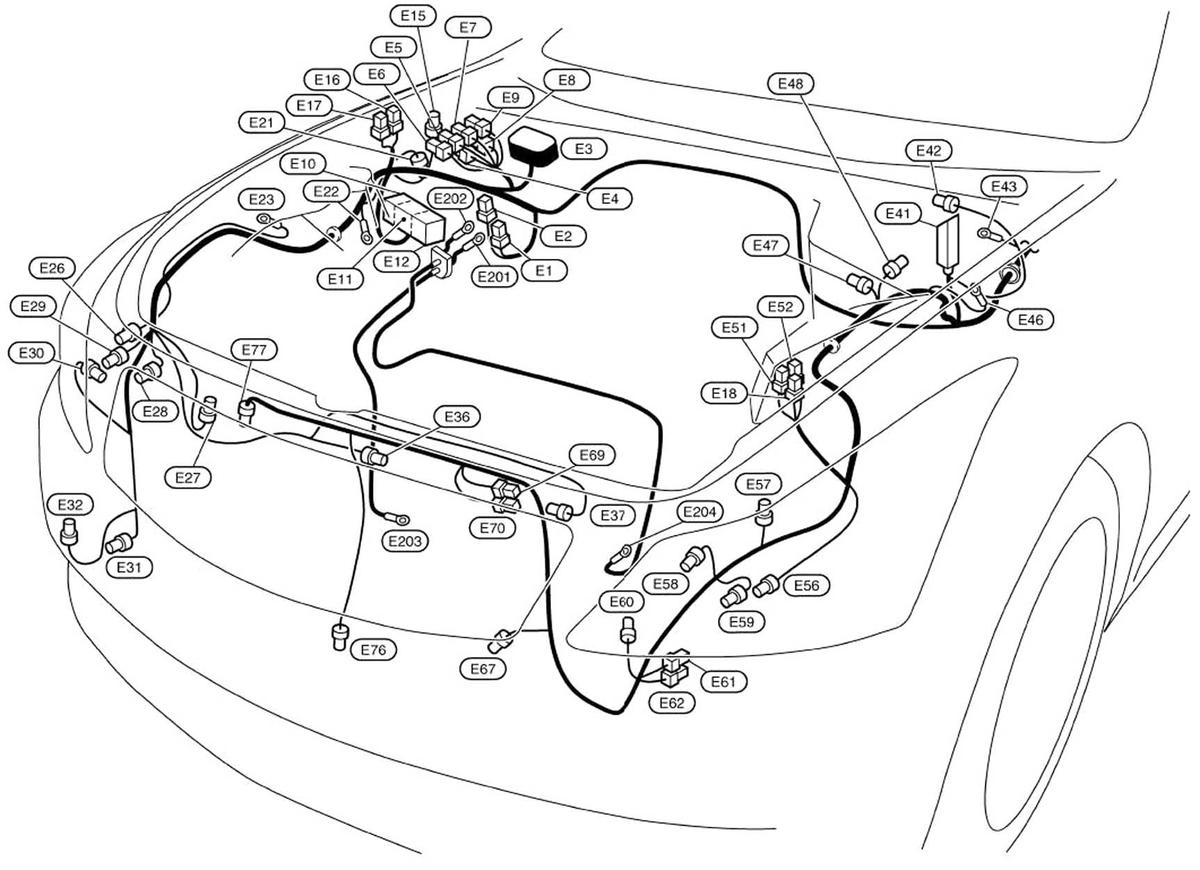

| ABS Actuator & Electric Unit (Control Unit) (Coupe) (E41) | Left rear of engine compartment. See Figure. |
| ABS Actuator & Electric Unit (Control Unit) (Sedan) (E41) | Left rear of engine compartment. See Figure. |

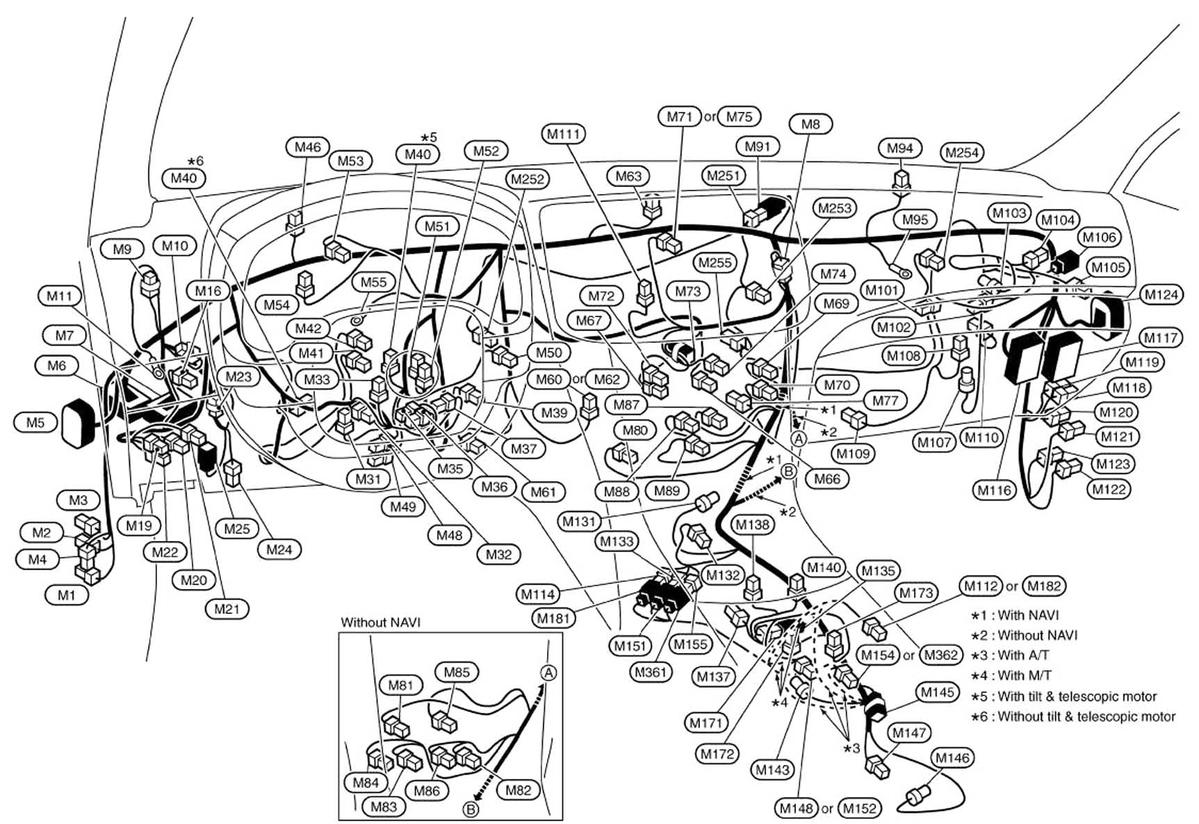

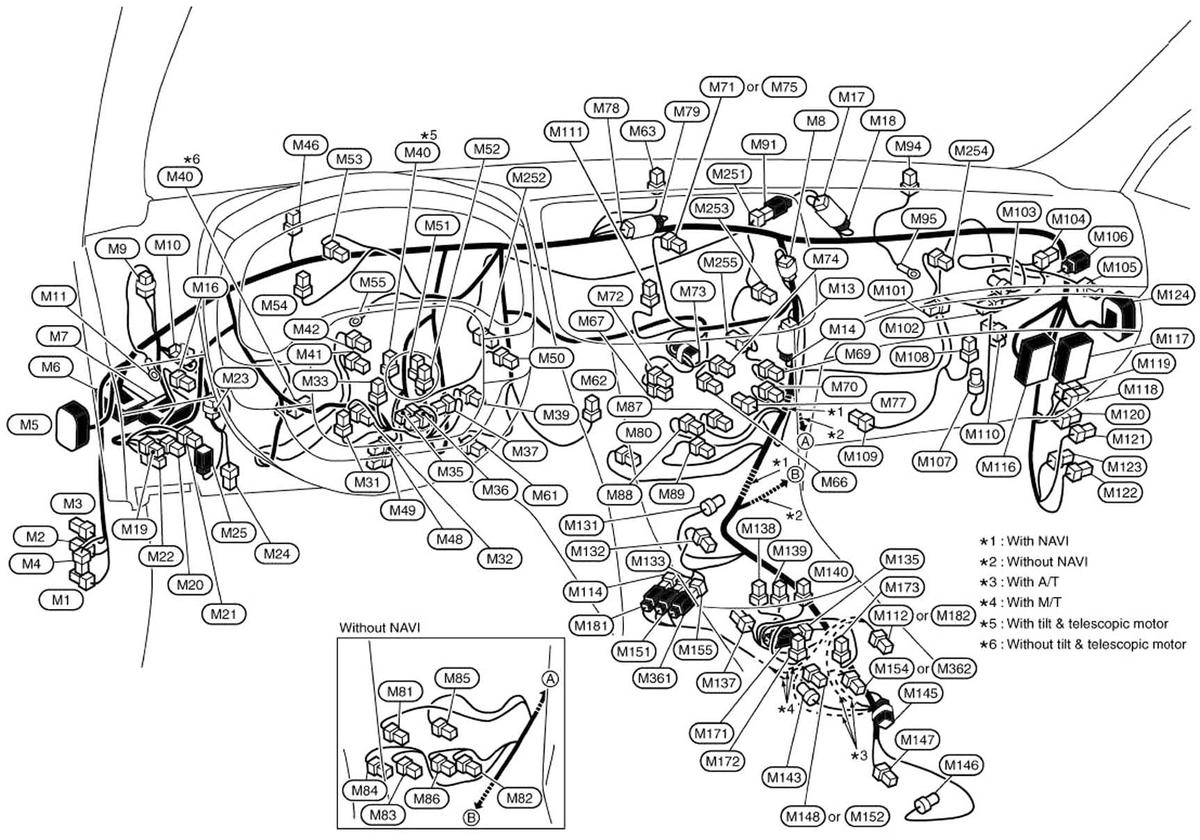

| AFS Control Unit (Coupe) (M16) | Behind left end of dash. See Figure. |
| AFS Control Unit (Sedan) (M16) | Behind left end of dash. See Figure. |
| Automatic Drive Positioner Control Unit (Coupe) (M52) | Under left side of dash. See Figure. |
| Automatic Drive Positioner Control Unit (Sedan) (M52) | Under left side of dash. See Figure. |

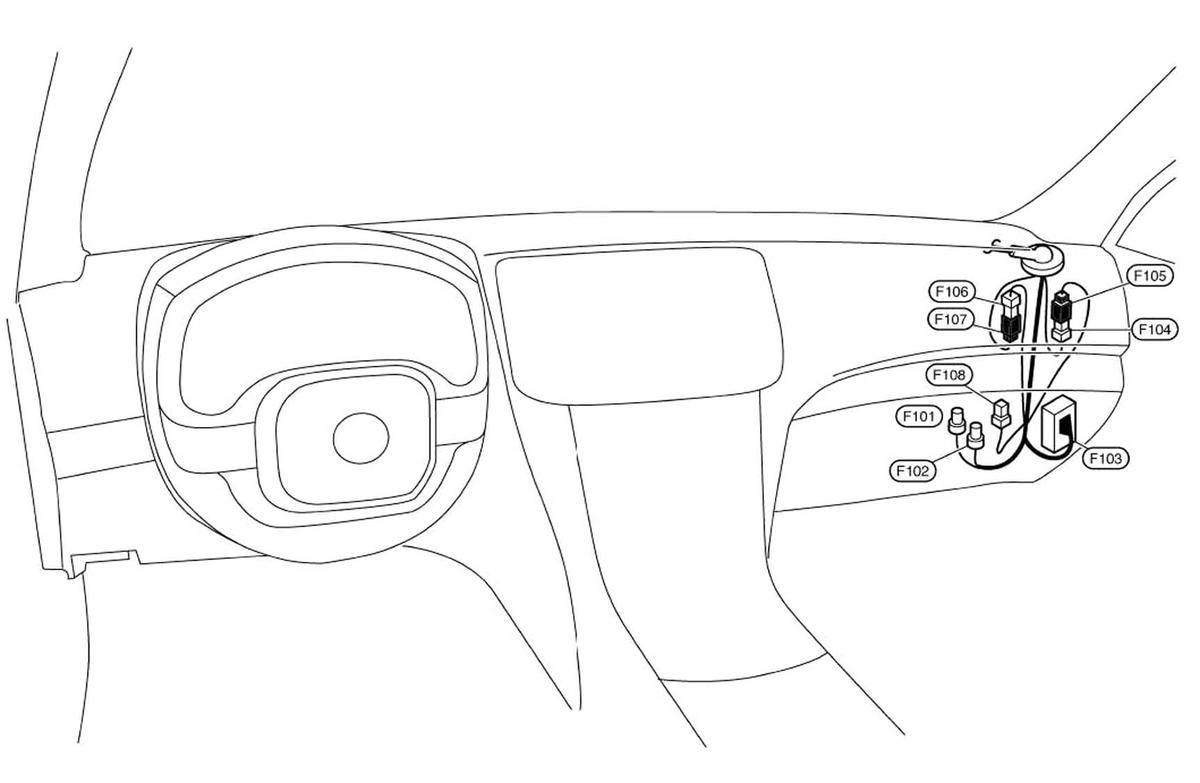

| AWD Control Unit (Sedan) (F108) | Behind right end of dash. See Figure. |
| BCM (Body Control Module) (Coupe) (M118) | Behind left kick panel. See Figure. |
| BCM (Body Control Module) (Sedan) (M118) | Behind right kick panel. See Figure. |

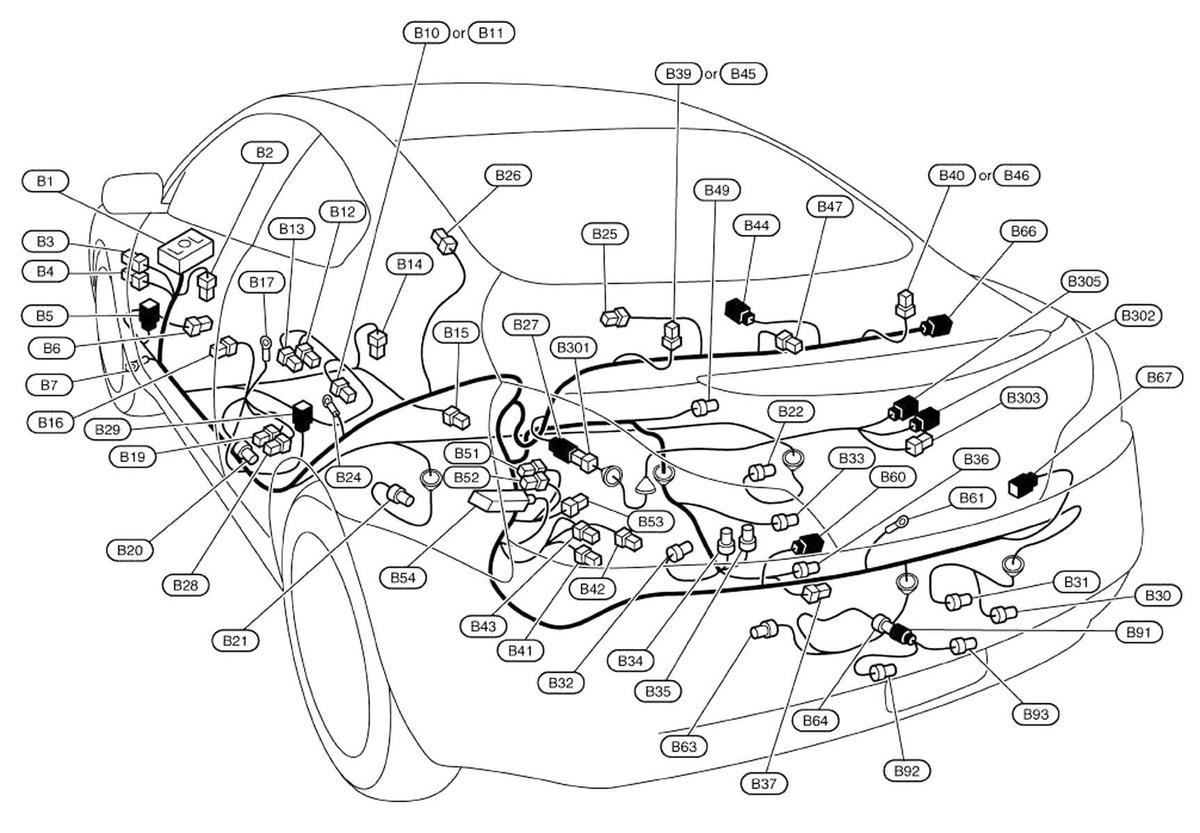

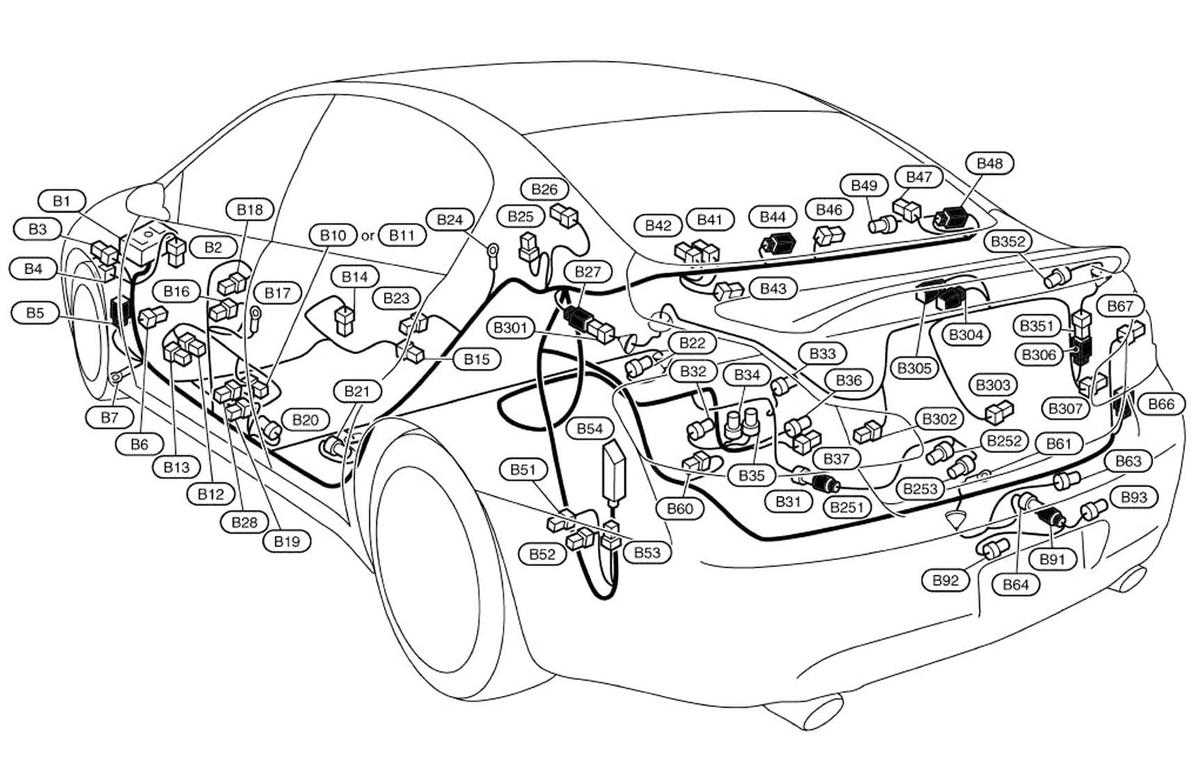

| Camera Control Unit (Coupe) (B241) | Right side of luggage compartment. See Figure. |
| Camera Control Unit (Sedan) (B241) | Right side of luggage compartment. See Figure. |

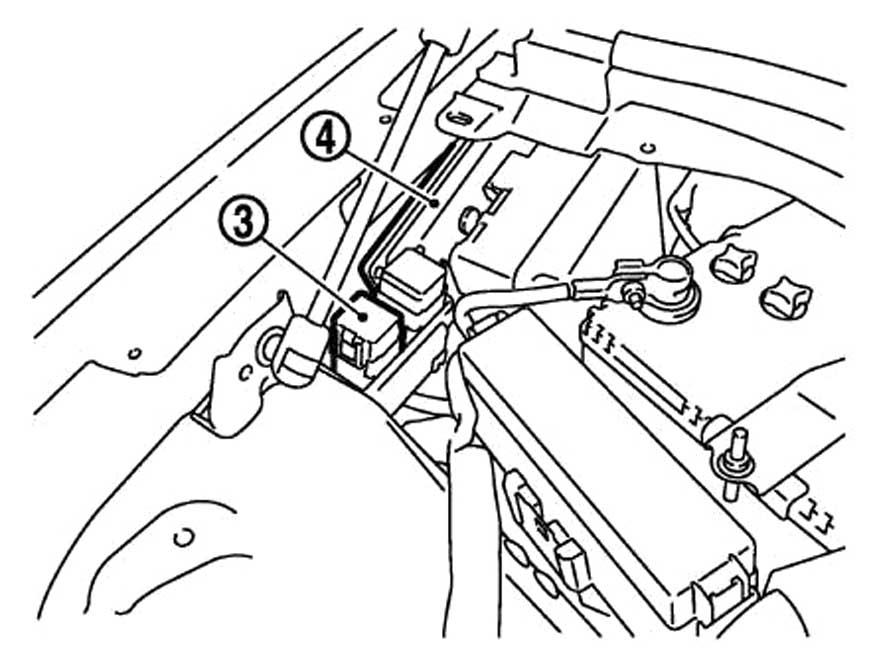

| Cooling Fan Control Module (2) | Front of engine compartment. See Figure. |
| Cooling Fan Motor No. 1 Control Module | At cooling fan No. 1. |
| Cooling Fan Motor No. 2 Control Module | At cooling fan No. 2. |
| Driver Seat Control Unit | Under driver seat. |

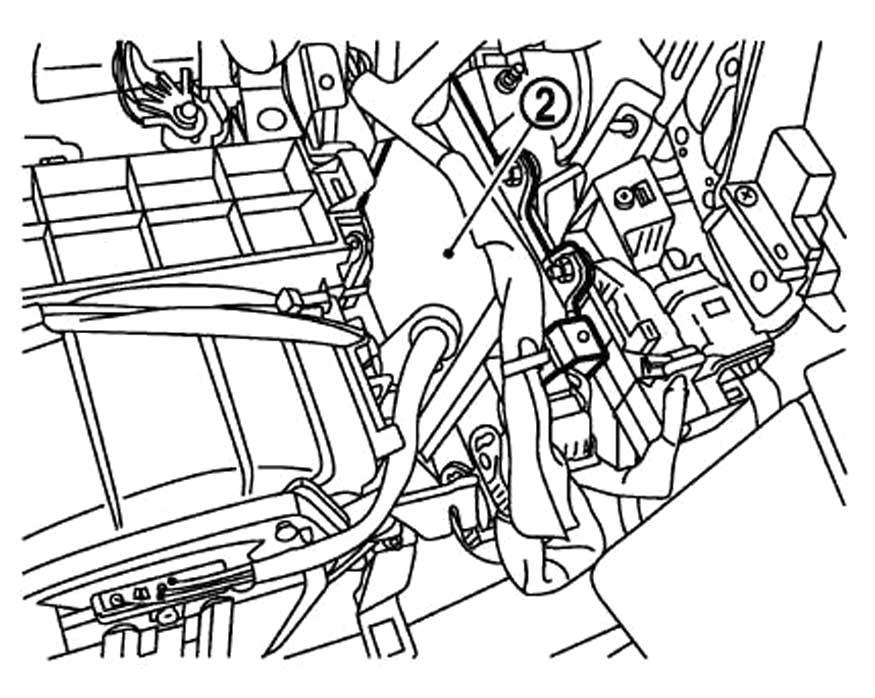

| ECM (Engine Control Module) (2) | Under right end of dash. See Figure. |
| Front Passenger Air Bag Module | Behind right side of dash. |

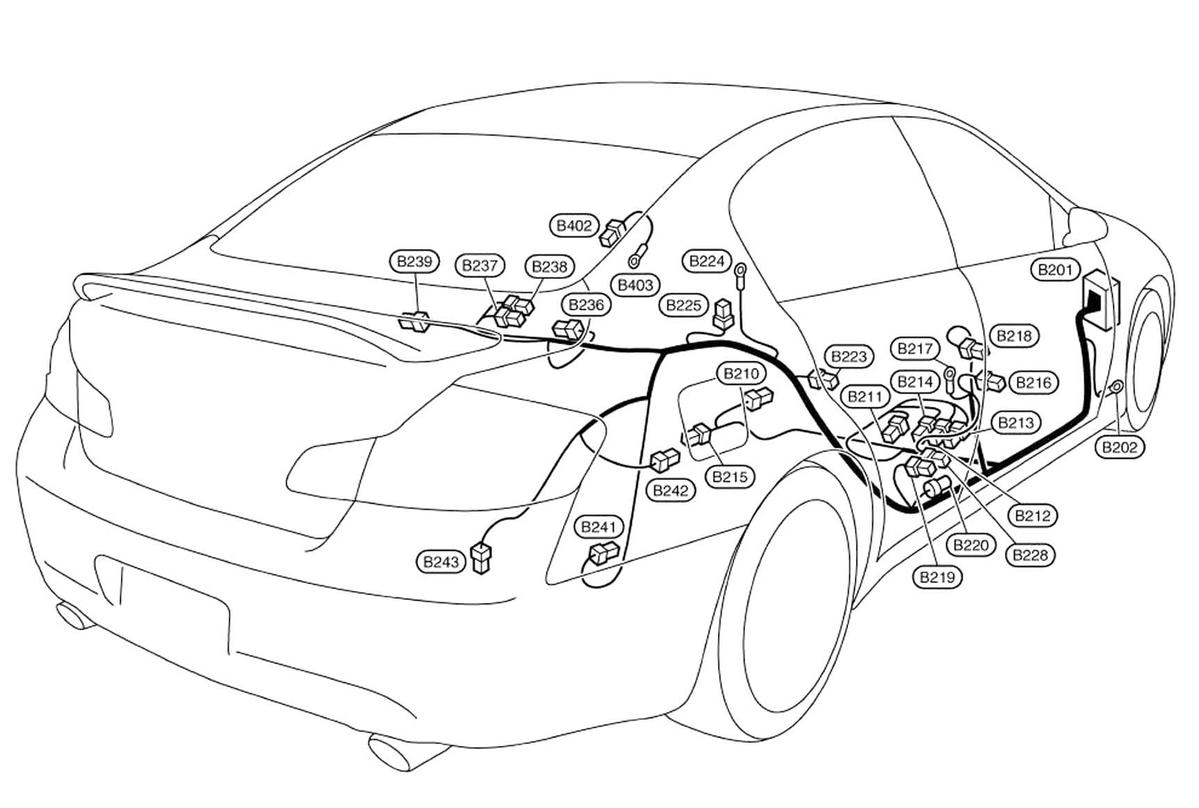

| Occupant Classification System Control Unit (Sedan) (B214) | Under front passenger's seat. See Figure. |
| Passenger Seat Control Unit | Under front passenger's seat. |
| Power Steering Control Unit (Coupe) (M108) | Behind right side of dash. See Figure. |
| Power Steering Control Unit (Sedan) (M108) | Behind right side of dash. See Figure. |
| Pre-Crash Seat Belt Control Unit (Coupe) (M110) | Behind right end of dash. See Figure. |
| Pre-Crash Seat Belt Control Unit (Sedan) (M110) | Behind right end of dash. See Figure. |
| Steering Lock Unit (Coupe) (M40) | Near steering column. See Figure. |
| Steering Lock Unit (Sedan) (M40) | Near steering column. See Figure. |

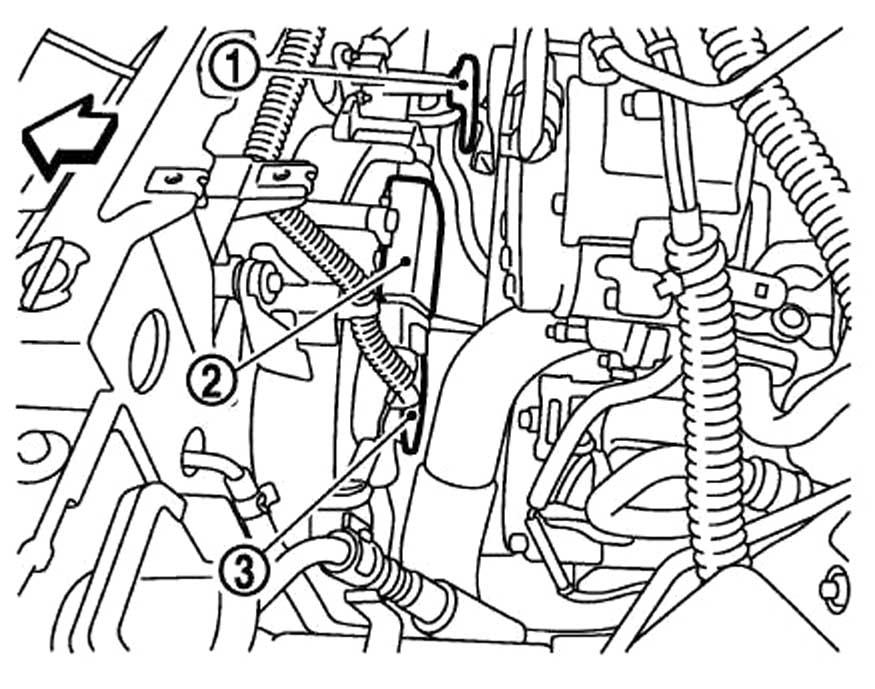

| VVEL Control Module (4) | Right rear of engine compartment. See Figure. |
| 4WAS Front Control Unit (Coupe) (M41) | On steering column. See Figure. |
| 4WAS Front Control Unit (Sedan) (M41) | On steering column. See Figure. |

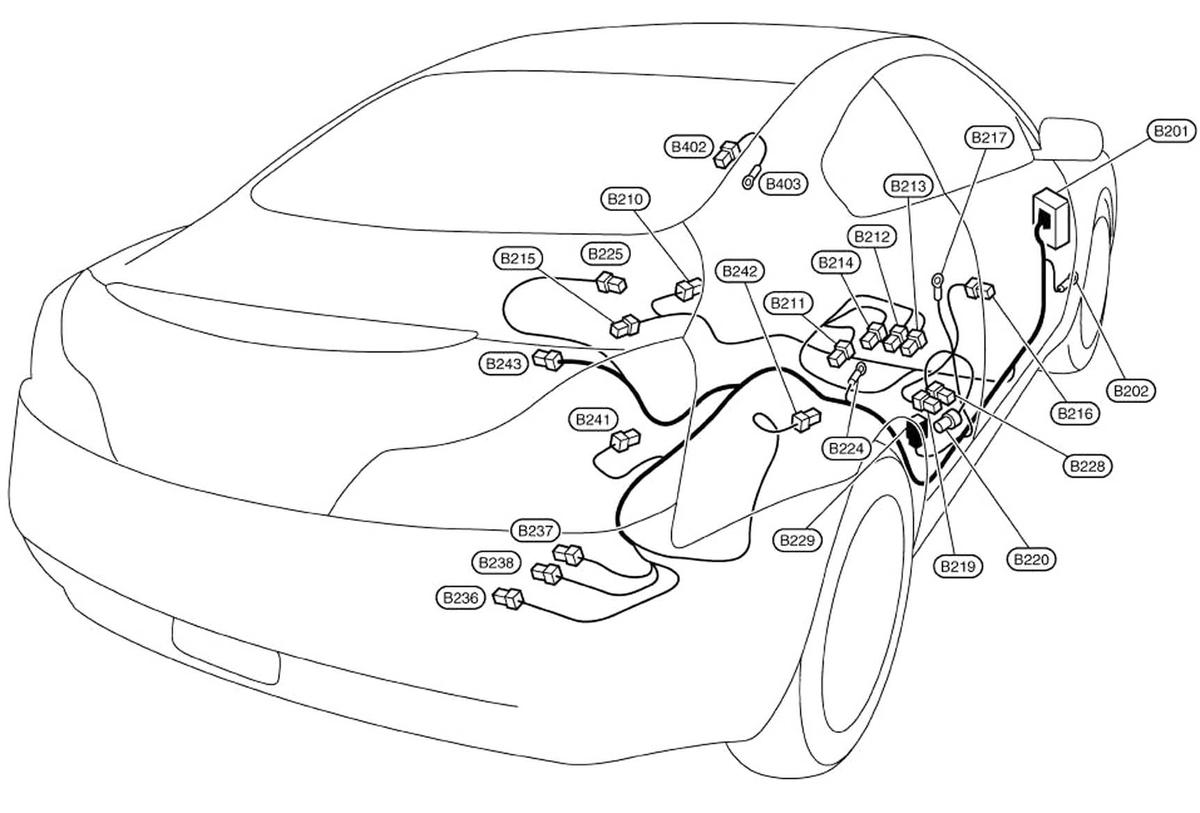

| 4WAS Main Control Unit (Coupe) (B54) | Left side of luggage compartment. See Figure. |
| 4WAS Main Control Unit (Sedan) (B54) | Left side of luggage compartment. See Figure. |
