Exploded View: Disassembly

Type: S114-932

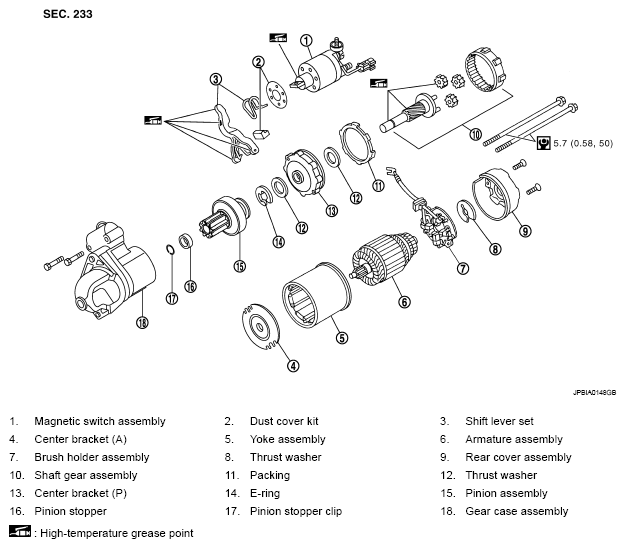

Fig 1: Disassembling View Of Starter Motor With Torque Specifications
G05733690Courtesy of NISSAN MOTOR CO., U.S.A.
