CONSULT-III Function and System Application*1

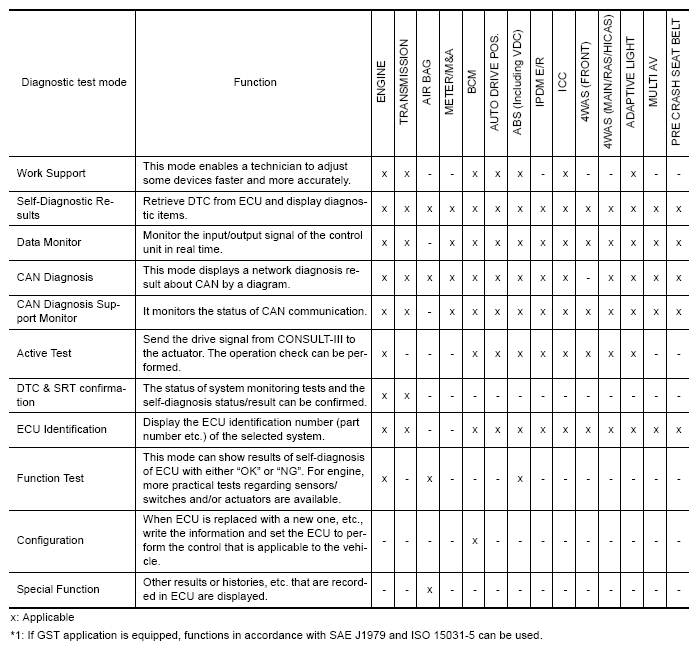

Fig 1: Diagnostic Test Mode Function Diagram
G05732758Courtesy of NISSAN MOTOR CO., U.S.A.
