System Diagram

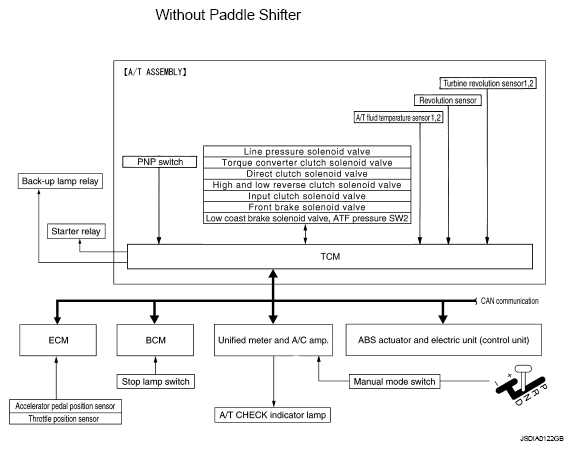

Fig 1: A/T Control System Diagram (Without Paddle Shifter)
G05733964Courtesy of NISSAN MOTOR CO., U.S.A.

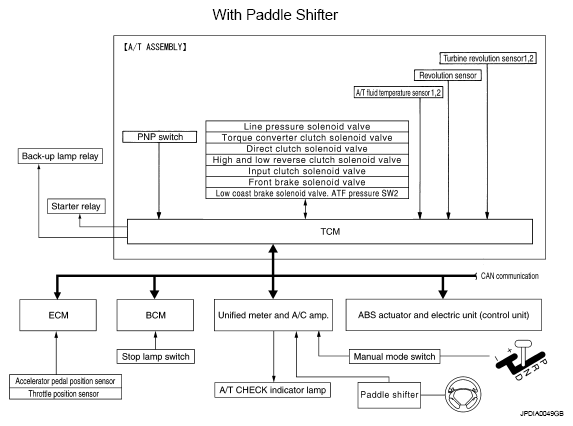

Fig 2: A/T Control System Diagram (With Paddle Shifter)
G05733965Courtesy of NISSAN MOTOR CO., U.S.A.
