Component Parts Location

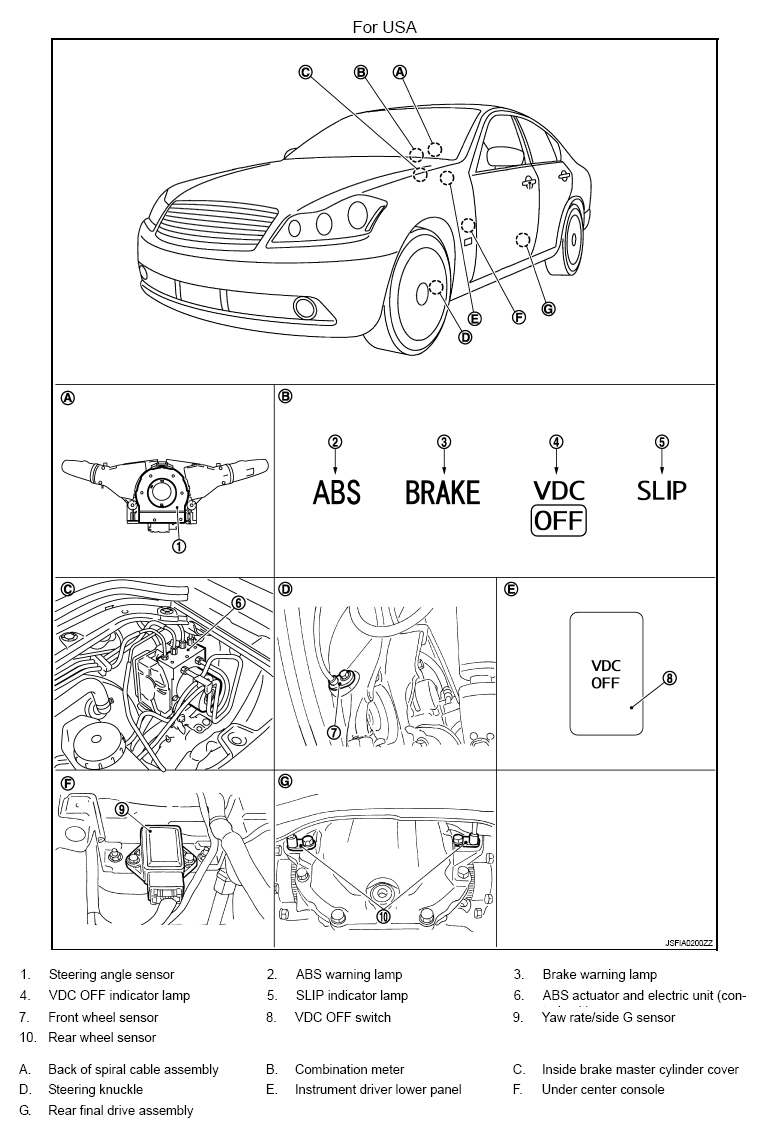

Fig 1: Identifying Component Parts Location - USA
Courtesy of NISSAN MOTOR CO., U.S.A.

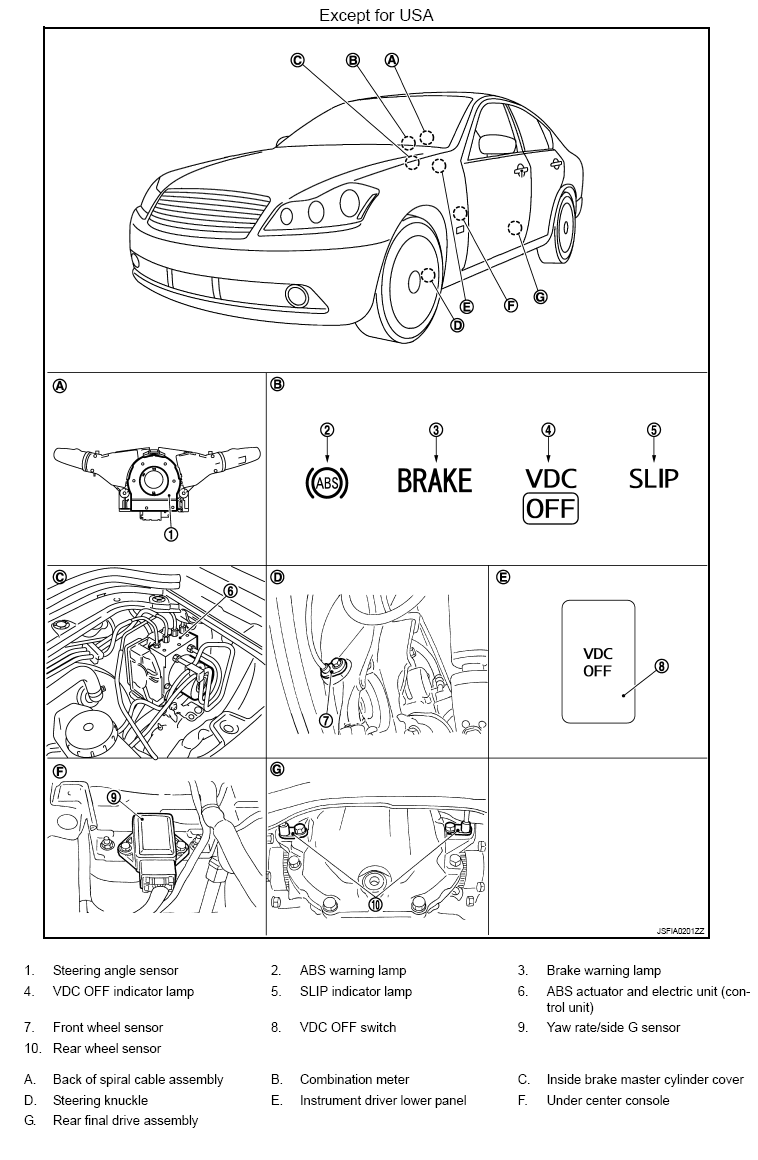

Fig 2: Identifying Component Parts Location - Except for USA
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
