Section 20 (Charging System (2UZ-FE)): Generator: Components
WARNING: This page is about a different car, the 2008 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

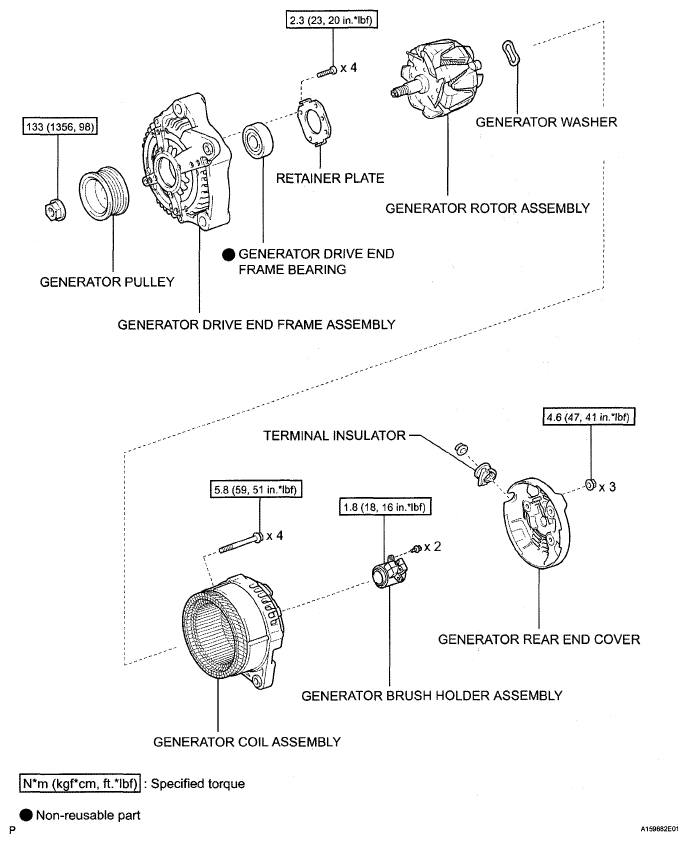

Fig 1: Generator Replacement Components With Torque Specifications (1 Of 2)
