Left Side

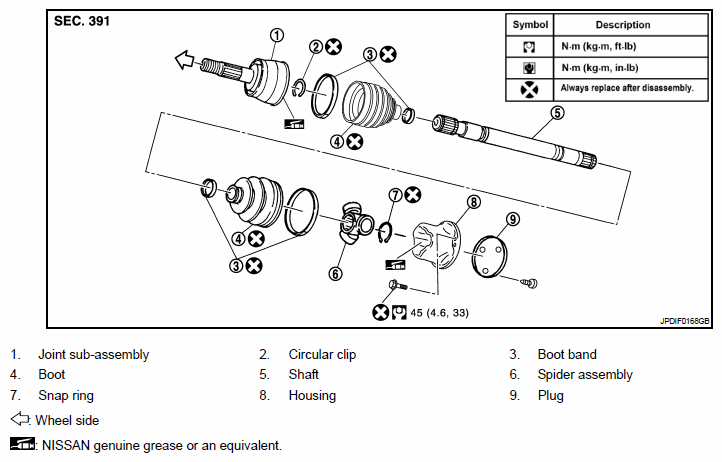

Fig 1: Identifying Front Drive Shaft - Left Side
G06301296Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "Components " for symbols not described on the above.
